Monster Scooter Parts | SKU:
X98-9306
36 Volt 1000 Watt Controller for the Monster Moto / Mega Moto Classic 1000w (MM-E1000)
$42.99
Unit price
/
Unavailable
36 Volt 1000 Watt Controller for the Monster Moto / Mega Moto Classic 1000w (MM-E1000) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
36 Volt 1000 Watt Controller for the Monster Moto / Mega Moto Class...
$42.99
Unit price
/
Unavailable
Key Features
- 36 volt 1000 watt controller
- Requires minor wire splicing (splice connectors included)
Description
Description

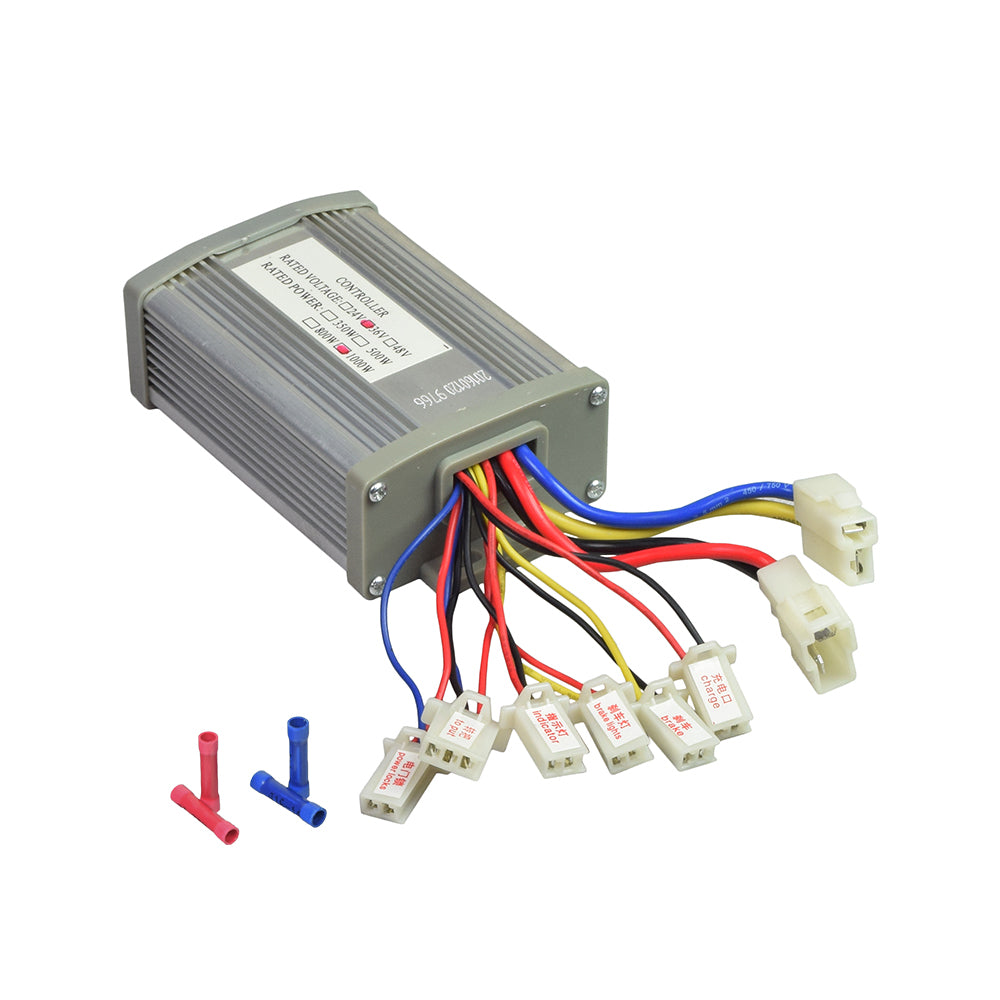

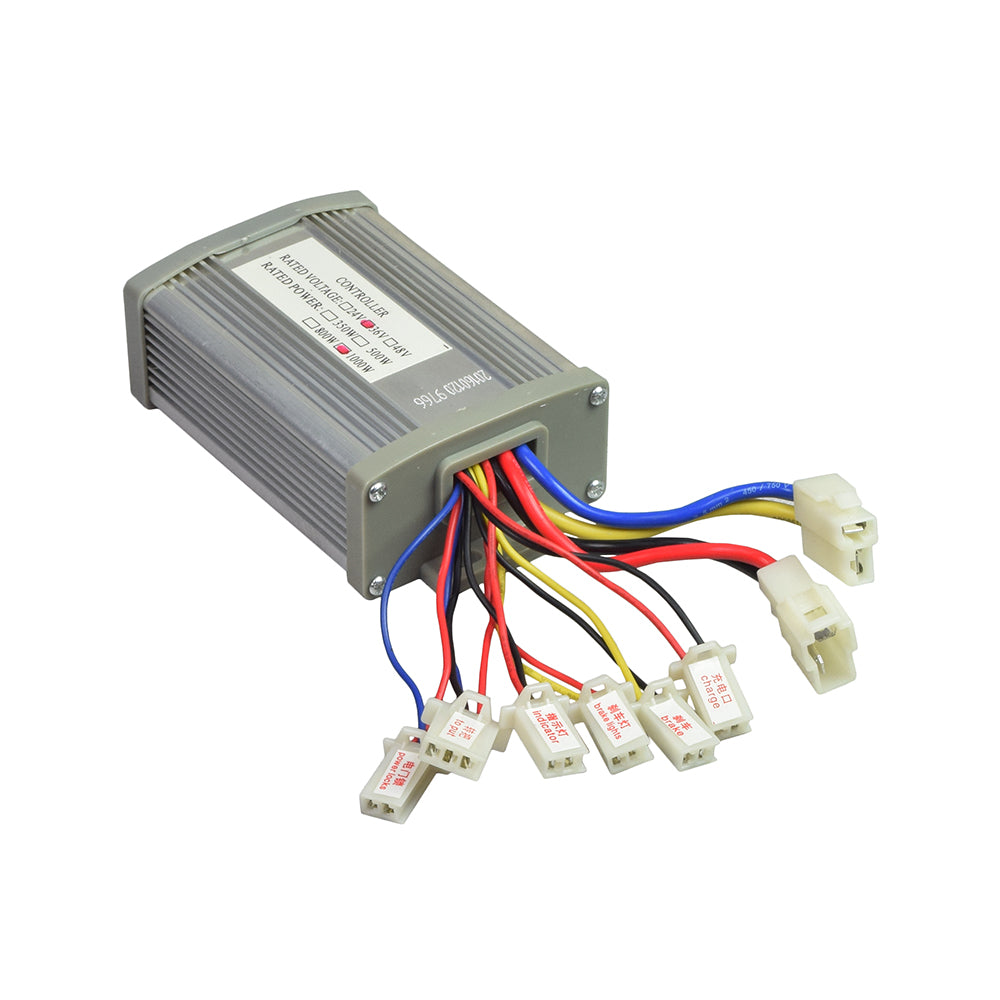

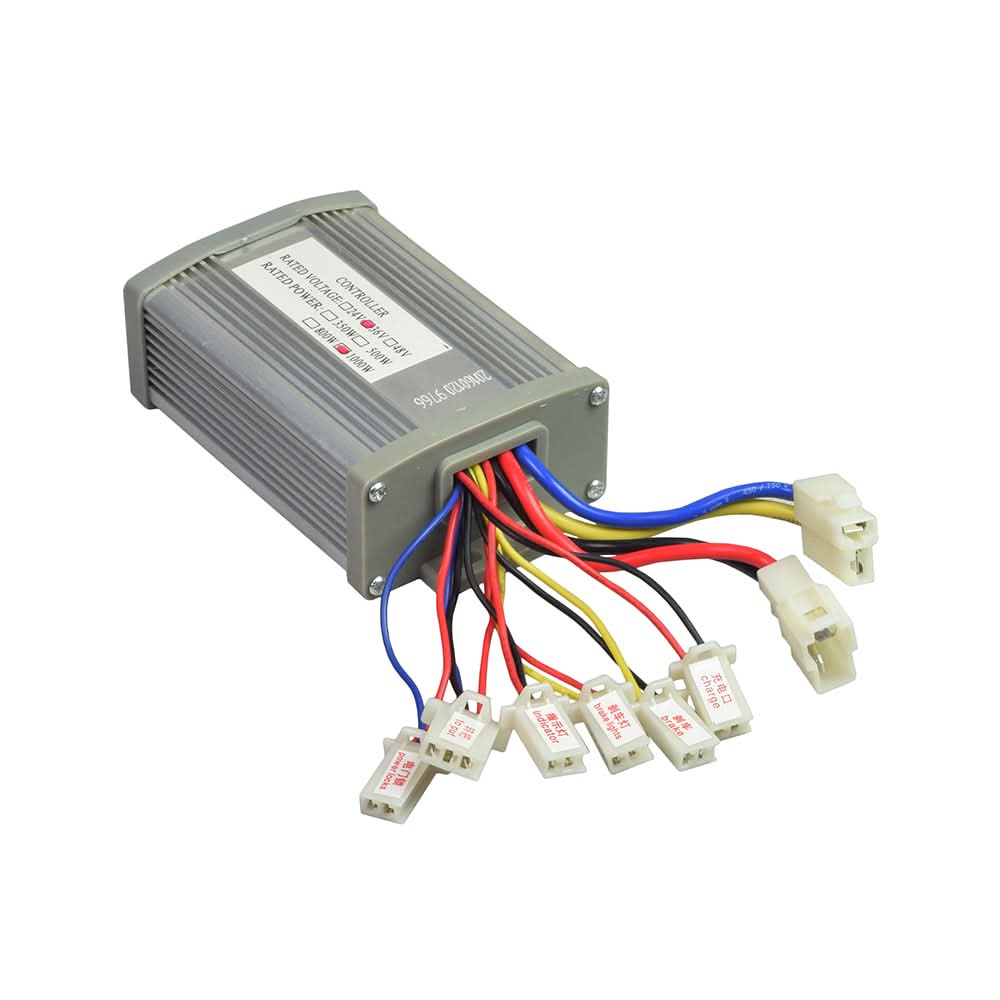

Here is a fine replacement 36 volt 1000 watt controller for the Monster Moto / Mega Moto Classic 1000w (MM-E1000). This controller has eight connectors: Battery, Motor, Charger, Lock, Throttle, Brake Connector, Brake Light, and Pilot Lamp. The throttle wiring is listed in the Specifications below.

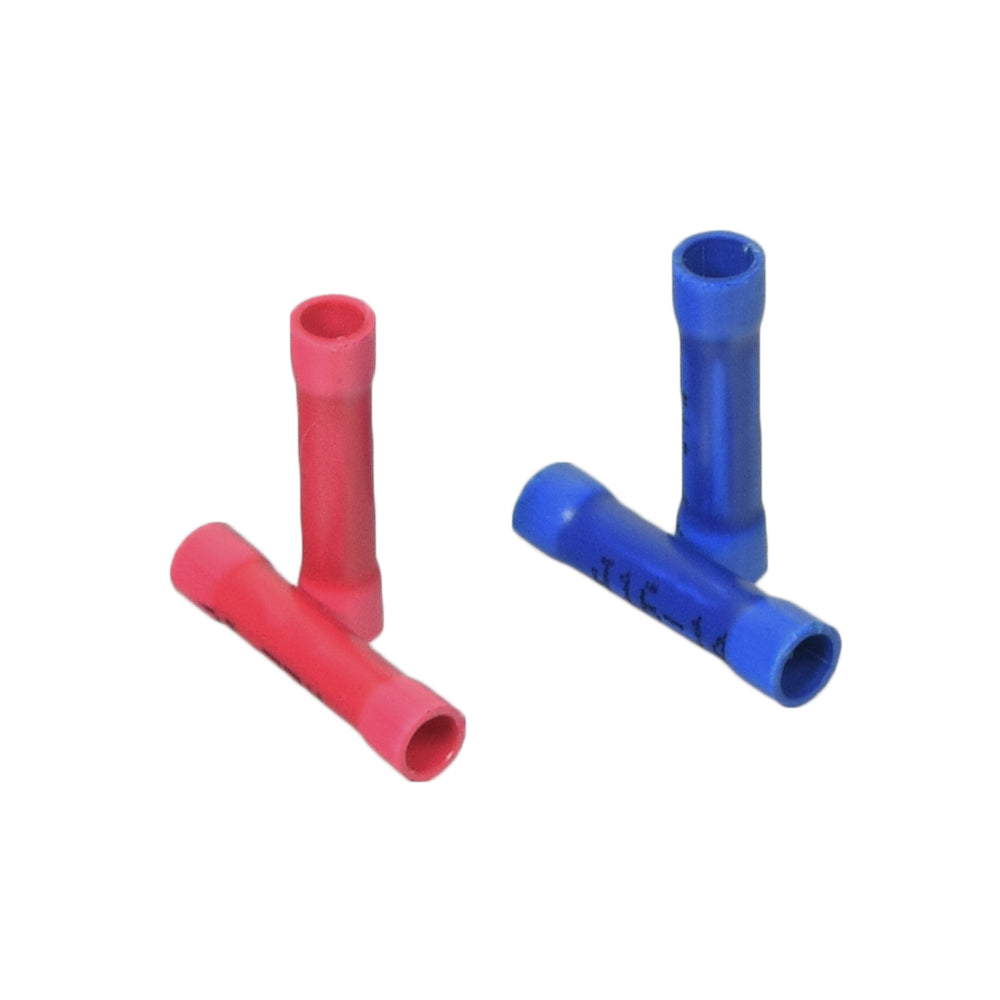

In addition, you will need to cut and splice the wiring on two of your old controller connectors. We supply four extra butt-splice connectors with this controller to make this simple DIY job even easier.
Controller connections as follows:
Motor Connector (Blue & Yellow Wires, Thick)
The motor wiring will require cutting and splicing. Use the two larger butt-splice connectors (included) to cut and splice to your existing controller motor connector or hard wire to your Monster Moto wiring. Blue (controller) to Black (motor wiring), and Yellow (controller) to Red (motor wiring).
Charge Connector (Black and Red Wires, Thin)
The battery charger connector also requires cutting and splicing. Use the two smaller butt-splice connectors (included). Connect to your product’s “charge” connector.
Battery Connector (Black & Red Wires, Thick)
The battery wiring is the same as your bike's original connector. Connect to your battery's connector. Black to Black, Red to Red.
Power Locks Connector (Blue & Red [or Pink] Wires, Thin)
The key switch connector connects to your bike’s “lock” connector or hard wire to your key switch wiring. Red wire can also be Pink or other color.
To Put Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Some tags may translate as "Speed rotating handle." Plug your 3-wire hand throttle wires into the three prongs on this connector. Black to Black, Red to Red, Blue to the third wire on your hand throttle. (Blue or Green or other).
Brake Connector (Black & Yellow Wires, Thin)
The brake connector is the same as the original connector.
Brake Light (Black or Yellow & Red Wires, Thin)
The brake light connector is the same as the original connector on your Monster Moto / Mega Moto MM-E1000. Black wire can also be Yellow or other color.
Pilot Lamp (Black & Red [or Pink] Wires, Thin)
The pilot lamp connector is the same as the original connector on your Monster Moto / Mega Moto MM-E1000. Red wire can also be Pink or other color.
Note: All electric mini bike or electric scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), in order to complete the electrical circuit.
⚠ WARNING California Residents: Proposition 65 Warning
In addition, you will need to cut and splice the wiring on two of your old controller connectors. We supply four extra butt-splice connectors with this controller to make this simple DIY job even easier.
Controller connections as follows:
Motor Connector (Blue & Yellow Wires, Thick)
The motor wiring will require cutting and splicing. Use the two larger butt-splice connectors (included) to cut and splice to your existing controller motor connector or hard wire to your Monster Moto wiring. Blue (controller) to Black (motor wiring), and Yellow (controller) to Red (motor wiring).
Charge Connector (Black and Red Wires, Thin)
The battery charger connector also requires cutting and splicing. Use the two smaller butt-splice connectors (included). Connect to your product’s “charge” connector.
Battery Connector (Black & Red Wires, Thick)
The battery wiring is the same as your bike's original connector. Connect to your battery's connector. Black to Black, Red to Red.
Power Locks Connector (Blue & Red [or Pink] Wires, Thin)
The key switch connector connects to your bike’s “lock” connector or hard wire to your key switch wiring. Red wire can also be Pink or other color.
To Put Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Some tags may translate as "Speed rotating handle." Plug your 3-wire hand throttle wires into the three prongs on this connector. Black to Black, Red to Red, Blue to the third wire on your hand throttle. (Blue or Green or other).
Brake Connector (Black & Yellow Wires, Thin)
The brake connector is the same as the original connector.
Brake Light (Black or Yellow & Red Wires, Thin)
The brake light connector is the same as the original connector on your Monster Moto / Mega Moto MM-E1000. Black wire can also be Yellow or other color.
Pilot Lamp (Black & Red [or Pink] Wires, Thin)
The pilot lamp connector is the same as the original connector on your Monster Moto / Mega Moto MM-E1000. Red wire can also be Pink or other color.
Note: All electric mini bike or electric scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), in order to complete the electrical circuit.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (1)
Reviews (1)
Specifications
Specifications
Voltage: 36 Volts
Current: 28 amps maximum
