Currie Technologies  |  SKU: C80-8755  | Currie Technologies: SD-135-3

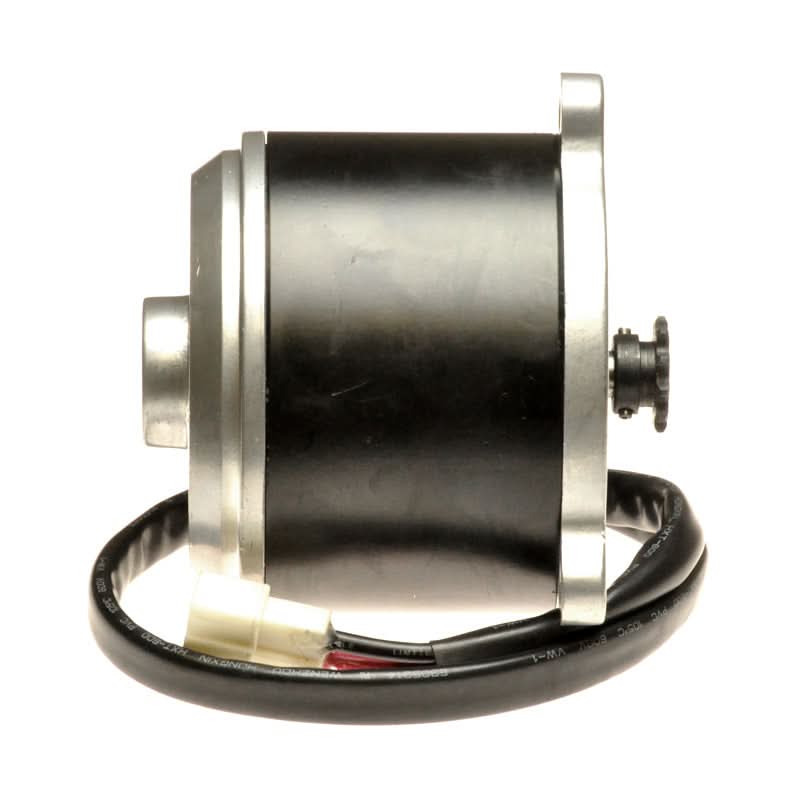

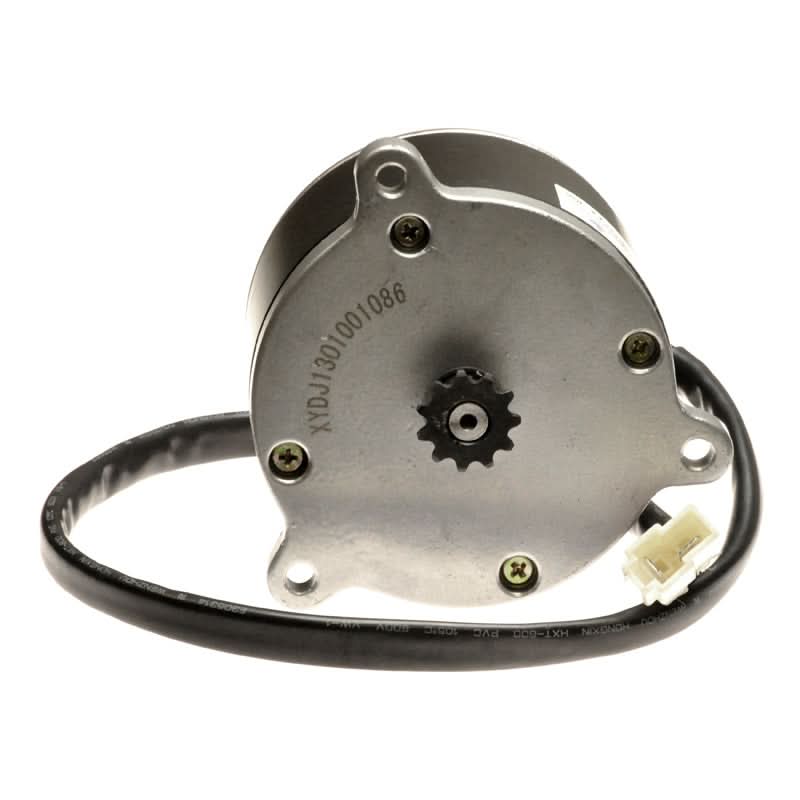

24 Volt 350 Watt XYD-6D Electric Motor with 11 Tooth #25 Chain Sprocket for 350 Series Scooters

$102.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •
    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • 24 volt 350 watt
    • 11 tooth #25 chain sprocket
    • Left or right rotation by reversing wires
    • XYD-6D motor

    Description
    This 24 volt 350 watt XYD-6D electric motor from Currie Technologies is the OEM motor on 350.0 Series Schwinn & IZIP electric scooters (chain drive). It comes outfitted with a Universal mounting bracket that can be used on most 24 volt electric scooters factory equipped with 200 watt - 400 watt motors.

    Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

    Currie Technologies: SD-135-3

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

    Specifications

    Model: XYD-6D
    Type: Brush
    Voltage: 24 volt DC
    Sprocket: 11 tooth #25 chain sprocket
    Output: 350 watts
    Case Length: 3-3/4" (95 mm)
    Case Diameter: 3-15/16" (100 mm)
    Drive Shaft Length: 1/2" (12 mm)
    Drive Shaft Diameter: 3/8" (10 mm)
    Mounting Hole Distance: 3-7/8" (98 mm)

    Compatibility
