Monster Scooter Parts  |  SKU: W02-438

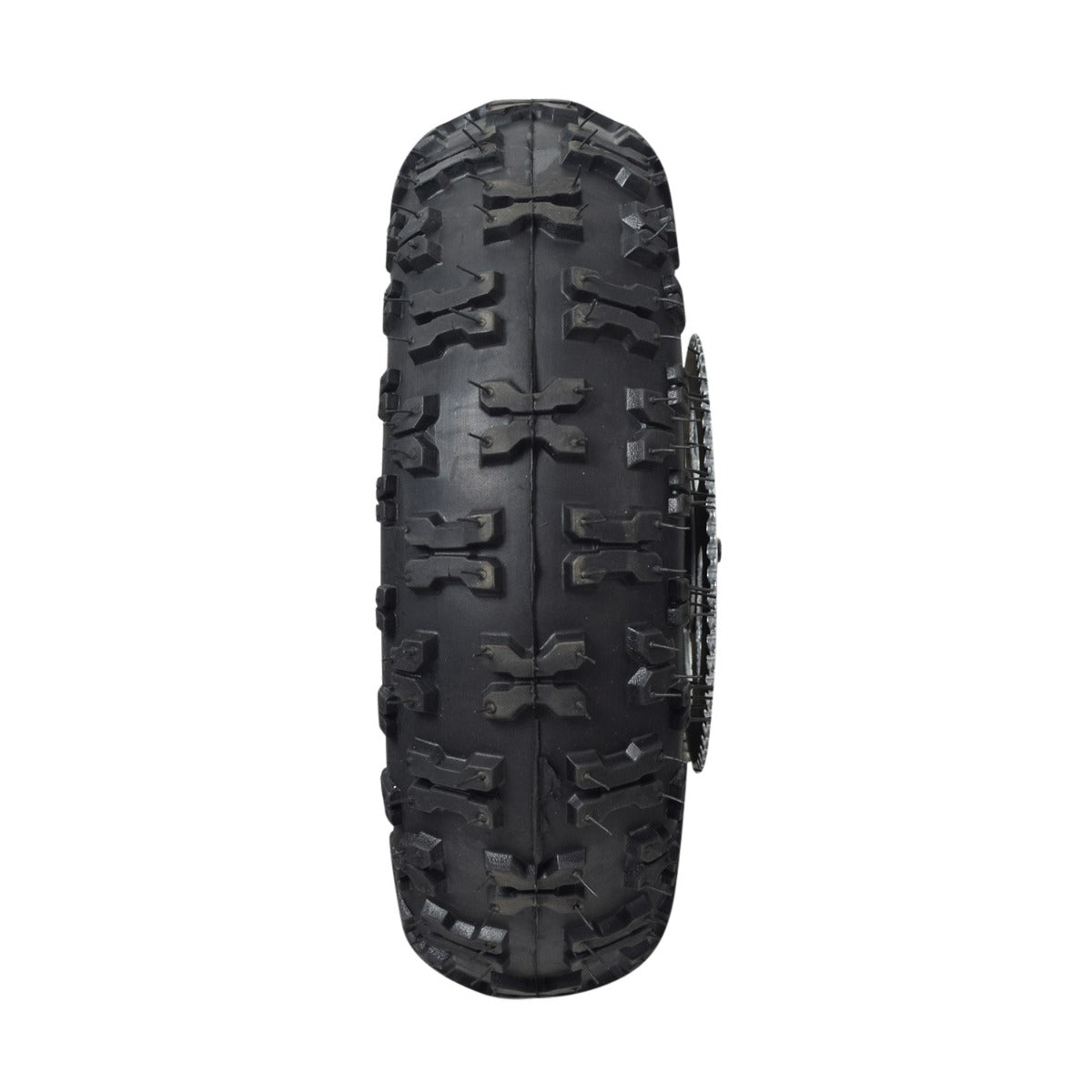

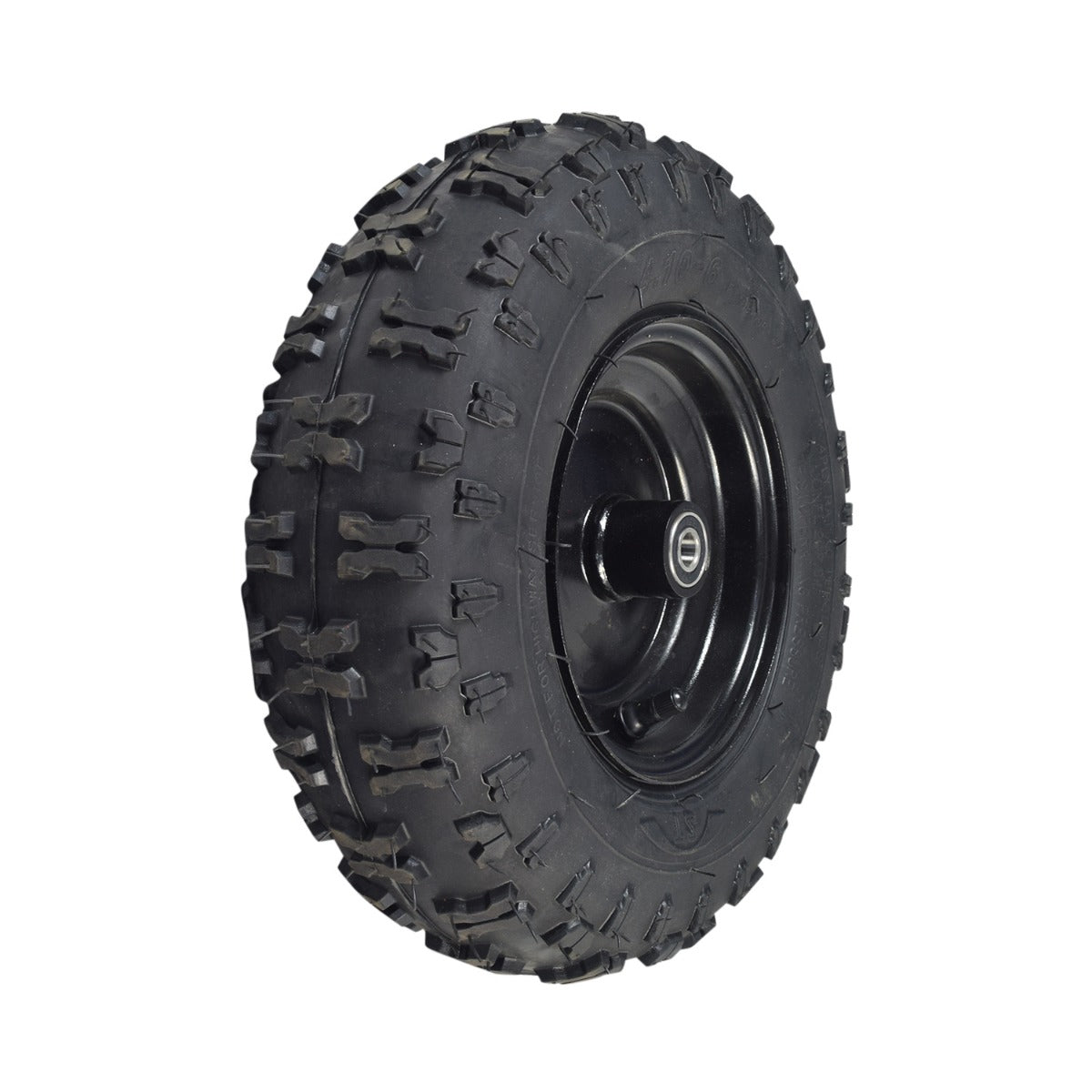

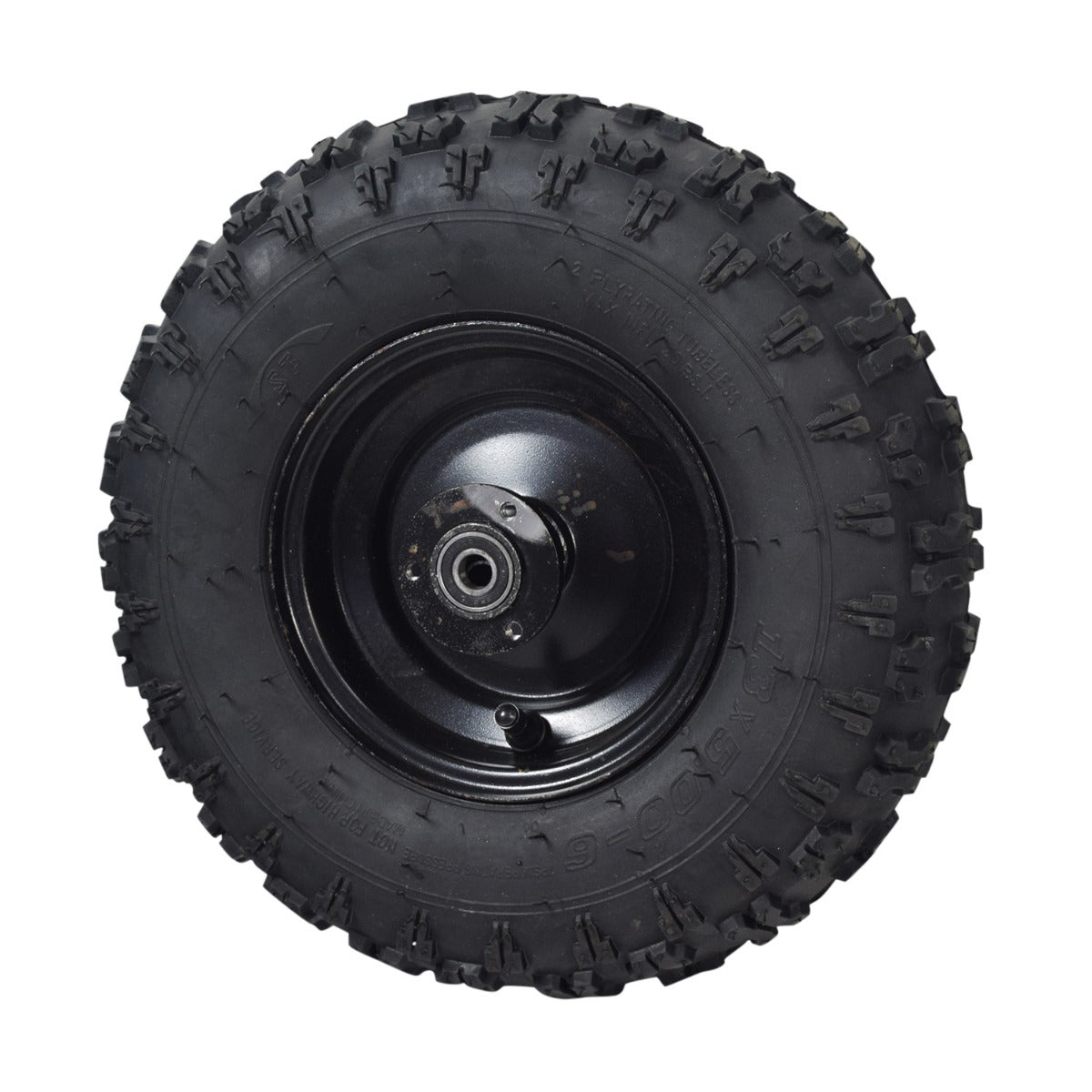

Rear Wheel Assembly for the Fit Right DB003 40cc 4-Stroke Mini Bike

$81.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •
    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • Complete rear wheel assembly for the DB003 mini bike
    • 13x5.50-6 tubeless pneumatic tire with knobby thread

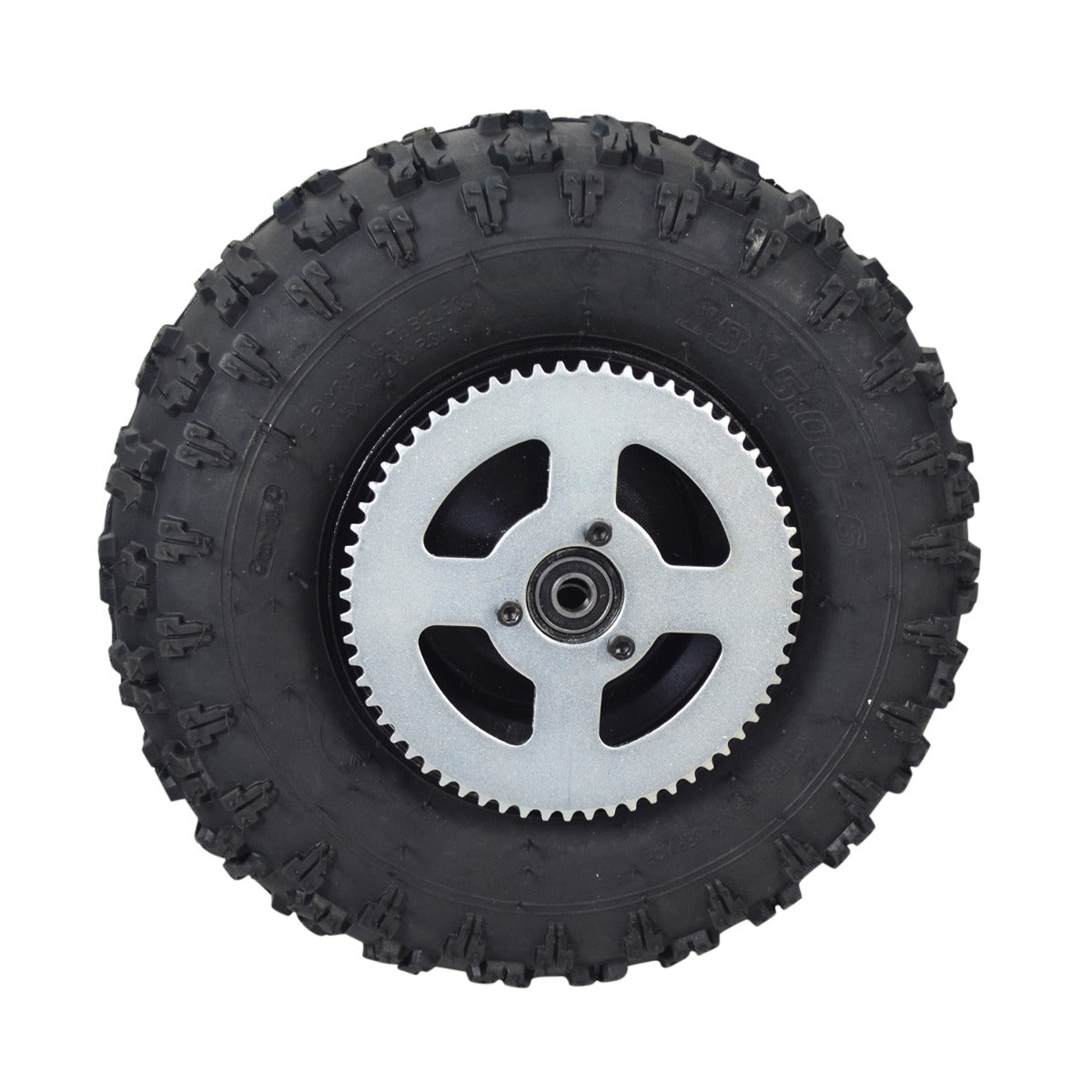

    • Includes a 4-3/4" brake disc & 64-tooth 8mm O5T chain sprocket

    Description
    Our rear wheel assembly for the Fit Right DB003 40cc 4-stroke mini bike sports a serious mud-slinging knobby tread that was designed to maximize control even on rough, loose, or sloppy surfaces.

    This great wheel assembly for the DB003 mini bike comes complete with the 13x5.50-6 tire, pre-installed wheel bearings, 4-3/4" diameter brake disc, 64-tooth chain sprocket, and black enameled steel rim.

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

    Specifications

    Tire:

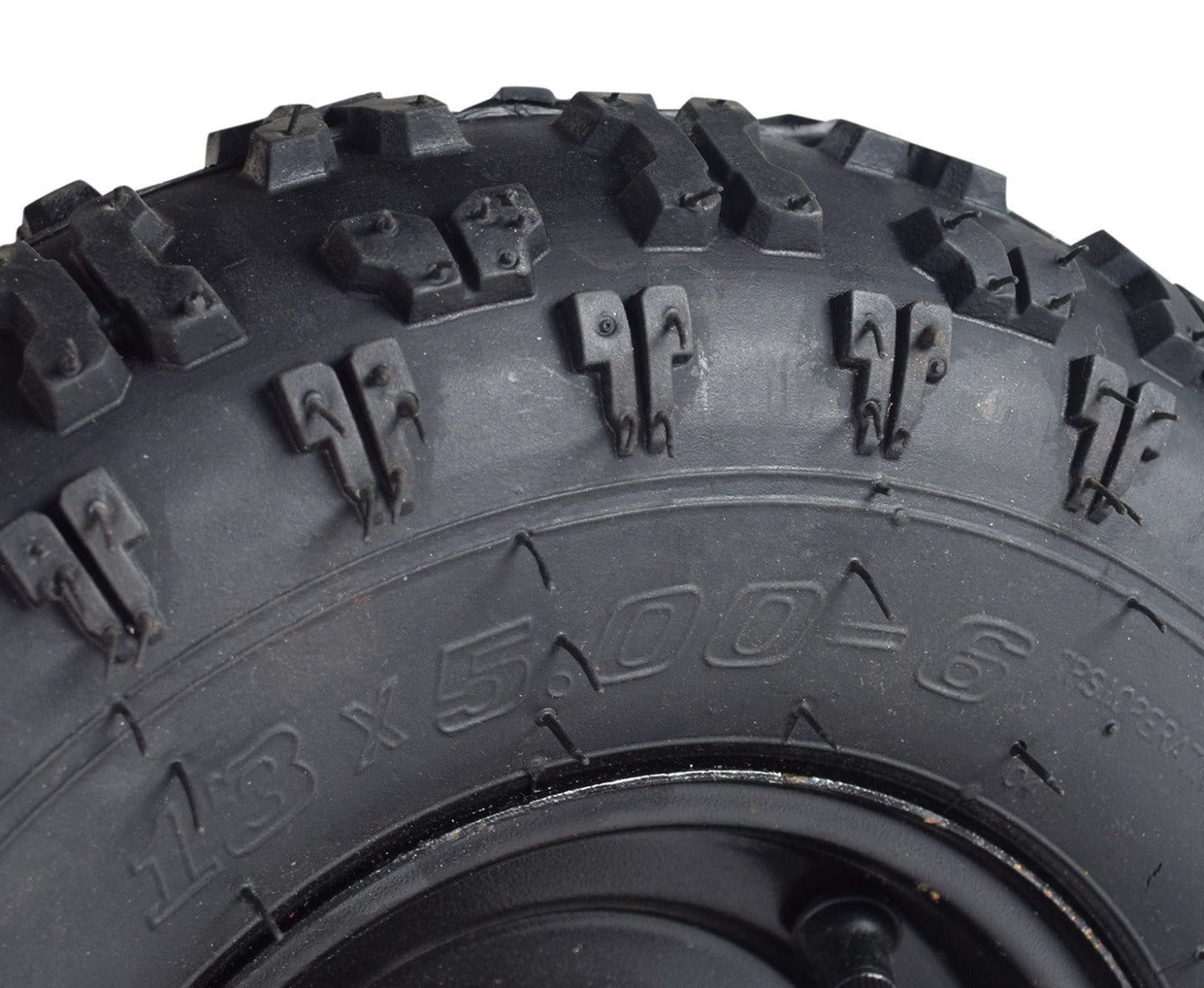

    Tire size: 13x5.50-6
    Tire type: tubeless pneumatic
    Tire max pressure: 20 psi

    Chain Sprocket:
    Chain size: 8mm O5T
    Sprocket teeth: 64 Tooth
    Overall diameter: 6-1/2"
    Mounting hole spacing (center to center): 1-5/8"
    Mounting hole diameter (x3): 1/4"
    Center hole diameter: 1-3/8"

    Brake Disc:
    Diameter: 4-3/4"
    Central hole diameter: 1-15/32"
    Mounting holes (x3): 1/4"
    Mounting hole distance" 1-5/8"

    Compatibility
