Monster Scooter Parts  |  SKU: E01-220

49cc/52cc Scooter Engine with Manual Pull Start

$128.99

Pre-Black Friday Sale - Save 15% with coupon code: PBF15
This item has a 30 day warranty. Warranty Policy

Free Shipping
  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • 49cc/52cc size engine
  • 2-stroke
  • Includes transmission with 8 mm 05T chain sprocket
  • Pre-assembled with muffler, carburetor, air filter and more

Description

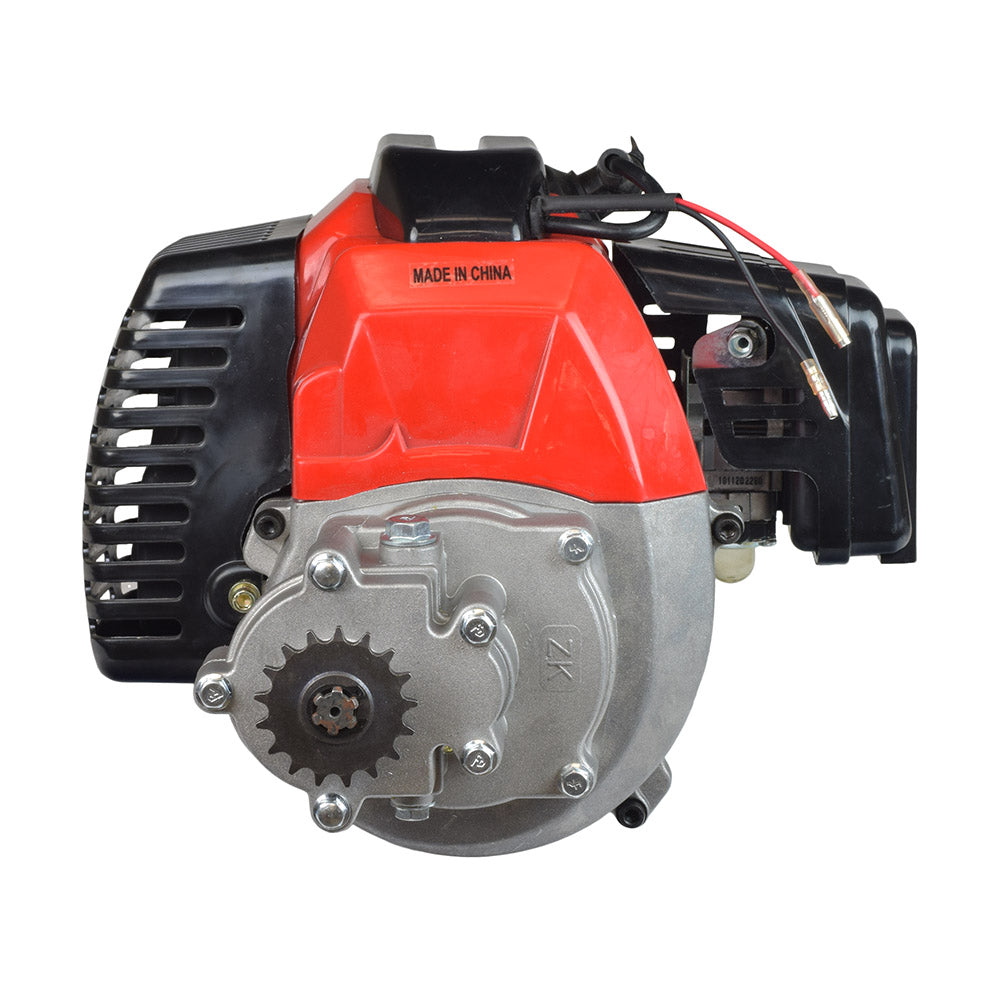

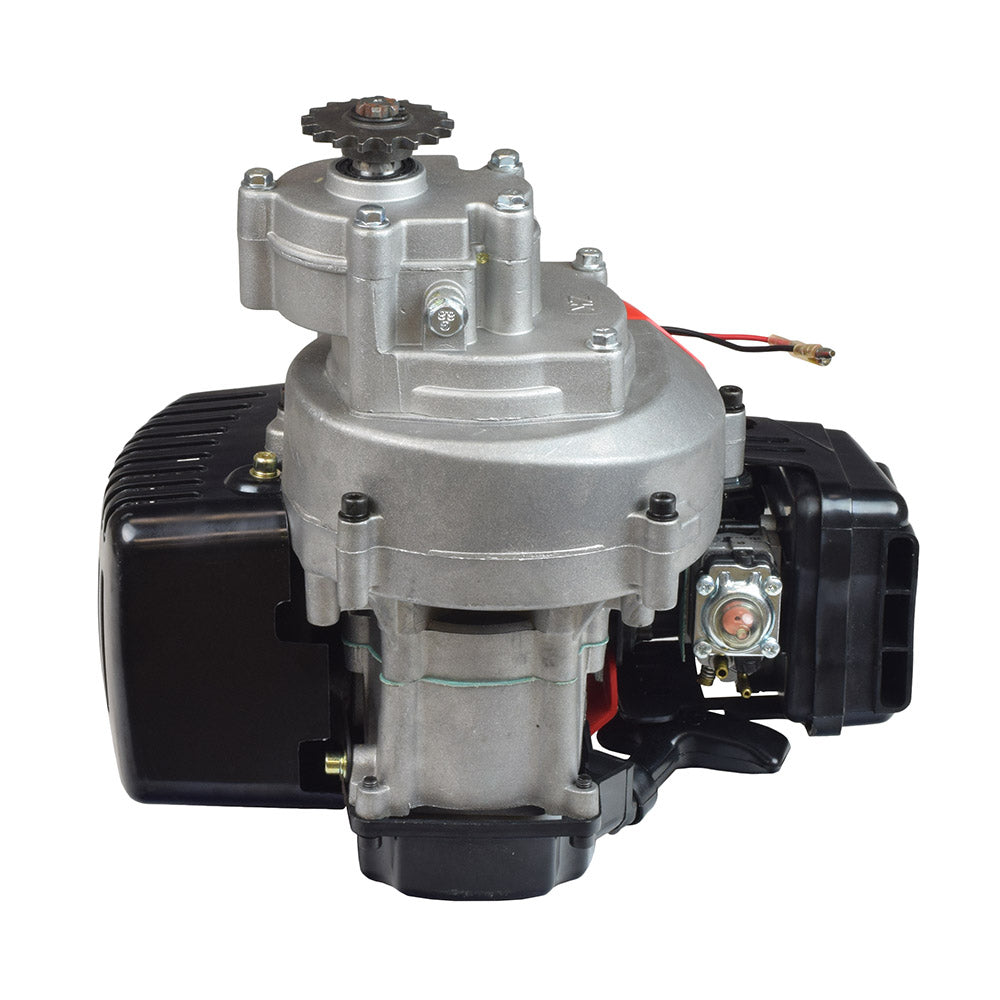

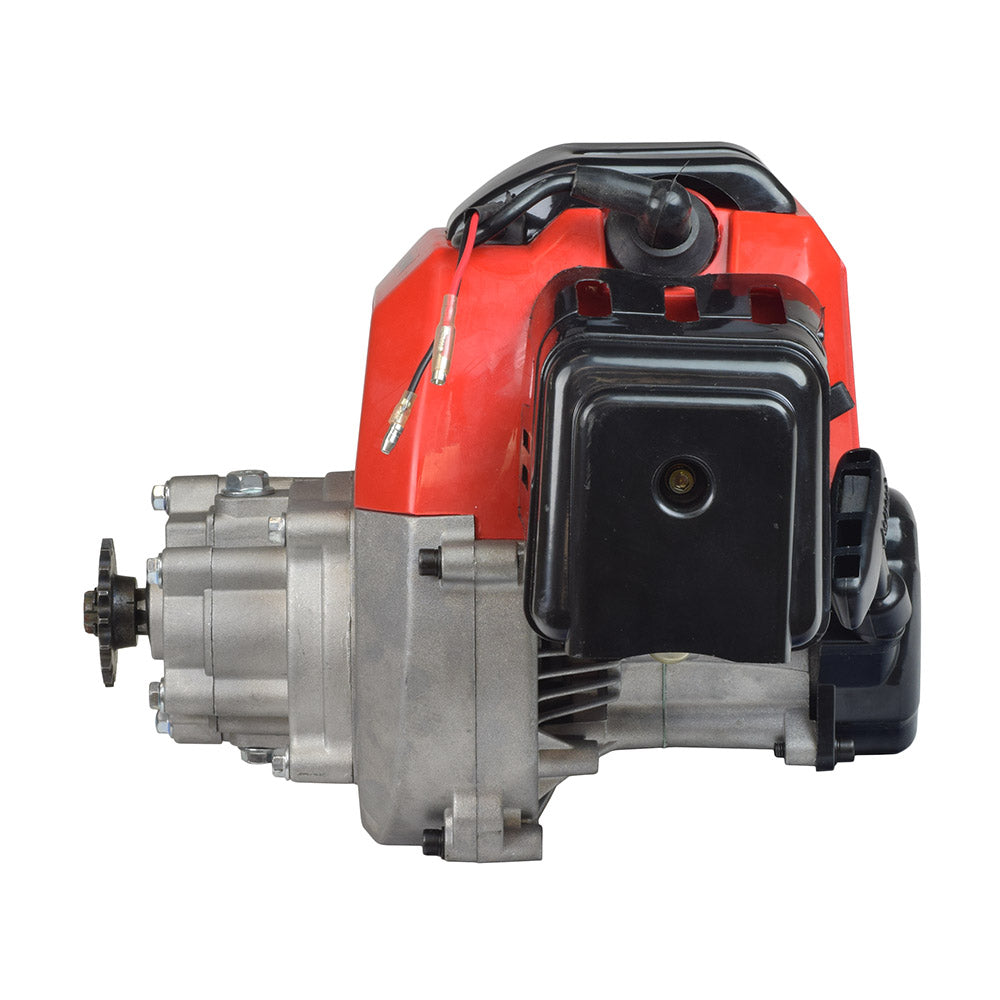

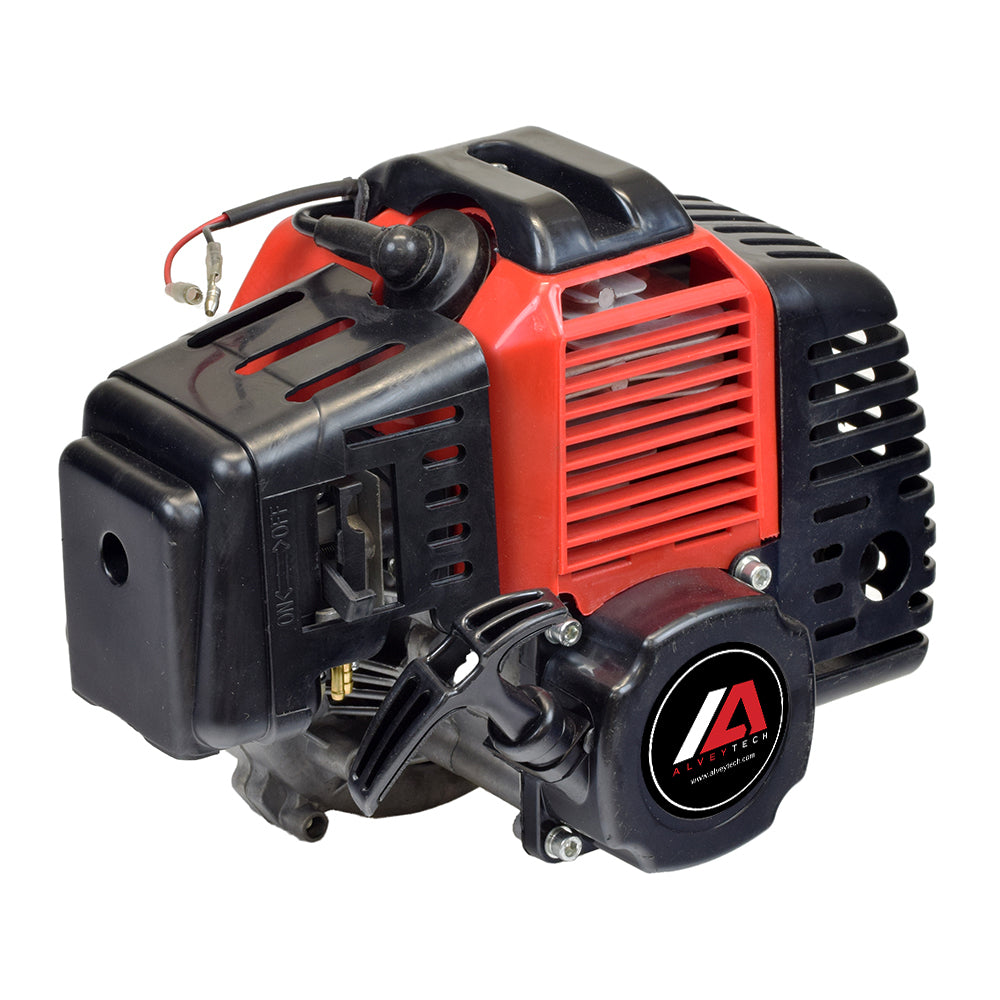

Complete 49cc scooter engine with manual pull start.

Fits the majority of gas scooters, pocket bikes, and mini choppers. High quality replacement engine. With the transmission attached, this engine rotates in a clockwise direction when viewing the face of the sprocket.

Includes transmission (with 8 mm 05T chain sprocket), standard muffler, carburetor, air filter, clutch pad assembly, and pull start.

Compatible gas scooter parts for this engine are available at the links below:

Carburetor
Scooter Carburetor for 43cc, 49cc, & 52cc Engines with 15 mm Intake

Ignition Coil
Ignition Coil for 2-Stroke Engines 49cc/52cc with 70mm Mounting Hole Spacing

Exhaust Pipe
Chrome Exhaust Pipe for 33cc, 36cc, 43cc, 49cc & 52cc Engines with 1-9/16" Mounting Holes

Exhaust Muffler Cover
Exhaust Muffler Cover for 49cc/52cc Scooter Engines

Transmission
Standard Scooter Transmission with 20-Tooth (8mm 05T) Chain Sprocket

Mounting Brackets
Engine Mount for 33cc - 52cc 2-Stroke Engines

Two Shoe Clutch Assembly
Clutch Pad Assembly with 2 Shoes

Pull Start
GS Moon Pull Start

PLEASE NOTE:
The transmission is sent without transmission fluid and must be filled by the user. We recommend 80W-85 transmission or gear oil.

This scooter engine is compatible with all 49cc and 52cc applications using OEM engines that visually look like the detailed picture on the item page. This engine is not compatible on any Bladez brand gas scooters.

This 2-stroke 49cc engine is used quite frequently on custom projects and applications. Please ensure this scooter engine will provide the form, fit, and function needed on your custom scooter, go kart, gas powered bicycle, or other personal transportation vehicle prior to ordering!

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (8)

Customer Reviews

Based on 8 reviews
50%
(4)
25%
(2)
13%
(1)
13%
(1)
0%
(0)
v
vicki yunker

thank you

J
John A

Easy swap out. No problems. Cranked right up. Louder and faster than my original motor and transmission

S
Steven B

Good

R
Richard B

Arrived in a couple of days, had to add some spacers to the get the motor mount to work. swap the drive cog over filled with gas and it fired right up. Used on my Motovox MVS10 scooter.

D
David G

Motor runs great, received it in a timely manner only flaw is that the sprocket on the transmission was broken and the piece that was broken off was not in the shipping box which means that it was packed and shipped this way. Luckily the sprocket changed over from my junk motor and I was able to ride my scooter!

12

Specifications

  • Fuel/Oil Mixture Ratio: 25:1
  • Top Through Hole Diameter M.B: 0.295"
  • Bottom Mounting Brackets: 6.6 cm
  • Bottom Through Hole Diameter M.B: 0.291"
  • Exhaust Diameter: 0.545"
  • Wiring: Small black/red wires: kill switch
  • Length: 10" (black cover to black cover)
  • Height: 8.5" (bottom to top black cover)
  • Tall Piece Mounting Hole Distance: 10.9 cm
  • Tall Piece Mounting Diameter: 0.265"
  • Pull Start Mounting Holes: 6.7 cm
  • Weight: 10.45 lbs
  • Engine Type: Two-Stroke
  • Rotation: Clockwise
  • Cooling System: Air cooled
  • Displacement: 49cc
  • Max Power: 1.4kb/6500 rpm
  • PTO Shaft Rotation: Counter-clockwise
  • Carburetor: Diaphragm
  • Starting System: Recoil
  • Ignition System: CDI
  • Net Weight: 4.2kg
  • Package Dimensions: 270mm x 244mm x 249mm

    •

    Compatibility
