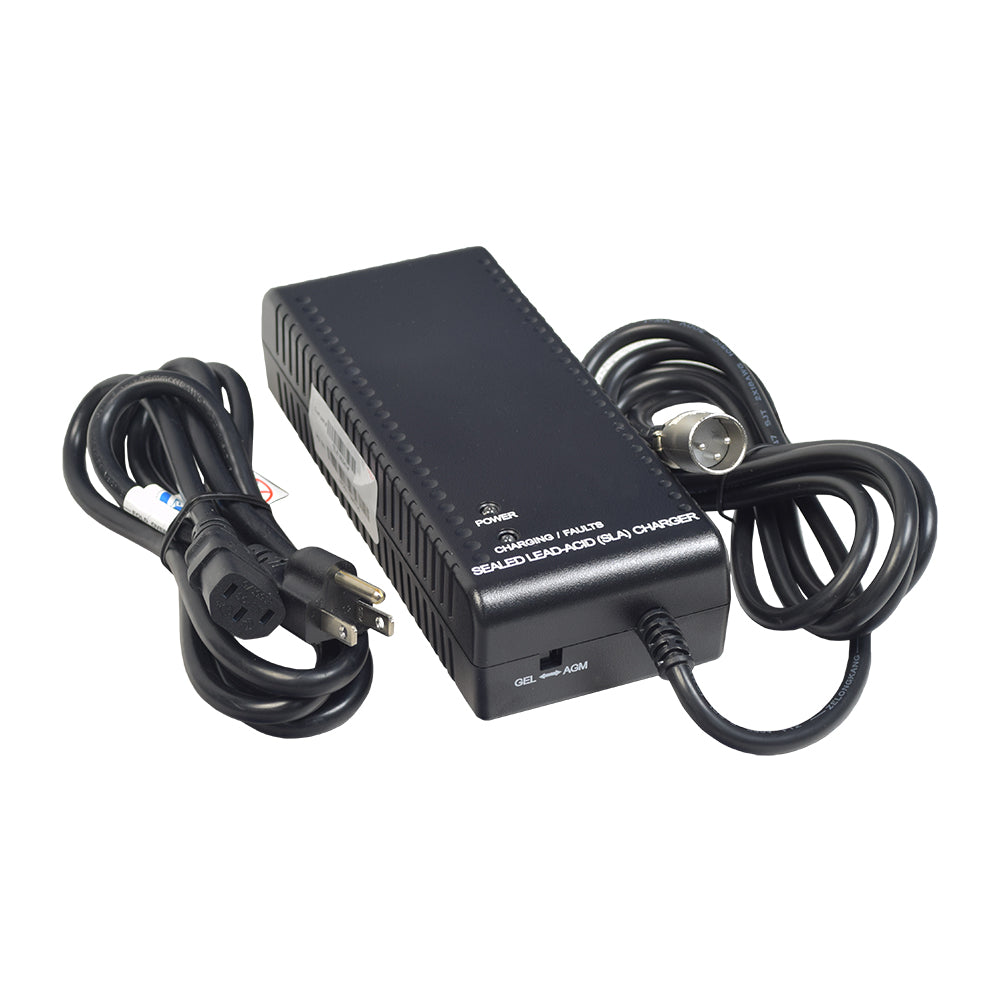

24 Volt 5.0 Amp XLR Gel Battery Charger for the Mega Motion Endeavor X (CPC)

Our 24 volt 5.0 amp XLR gel battery charger for the Mega Motion Endeavor X mobility scooter is a premium quality off-board battery charger from Universal Power Group (UPG) that has been specifically designed to use with gel cell batteries. Deep cycle gel cell batteries are usually longer lasting but are more sensitive to being overcharged. Using an Absorbed Glass Mat (AGM) style charger on gel cell batteries is a sure fire way to guarantee their poor performance and premature failure. Our gel cell battery charger has an output range of 28.8 volts, making it safe to use with AGM as well. In brief, while an AGM optimized charger should never be used with gel batteries, a charger optimized for gel batteries will work with either, although the charging rate will be slower. These differences in voltages are not absolutely required for the two battery types, but are the recommended charging voltages. Note: The selector switch must be set to GEL or AGM depending on the battery type to be charged.

The charger features an automatic shut off when the battery charging cycle is complete. The charging time varies greatly with the level of battery depletion. This charger is Underwriters Laboratories (UL) Listed for dry location use only.

3-Stage FAN-COOLED Charger - Prevents overheating.

Short Circuit Protection - Prevents damage caused when operating in a short circuit condition for an indefinite period of time. The charger is "self-recovering" when the fault condition is removed.

Reverse Polarity Protection - Prevents damage when positive and negative polarities are connected in reverse.

Fully Automatic Operation - Safely charges and maintains a full charge. the final stage of charging is the float mode and the battery may remain connected indefinitely. In this mode, the charger maintains fully charged condition.

Designed to Prevent Over Charging - Automatically switches to Float Mode.

Complete 3-Stage Process - Bulk Charge, Absorption, Maintenance/Float.

Low Voltage Protection - When the battery voltage is below a preset value, the charger will not start charging.

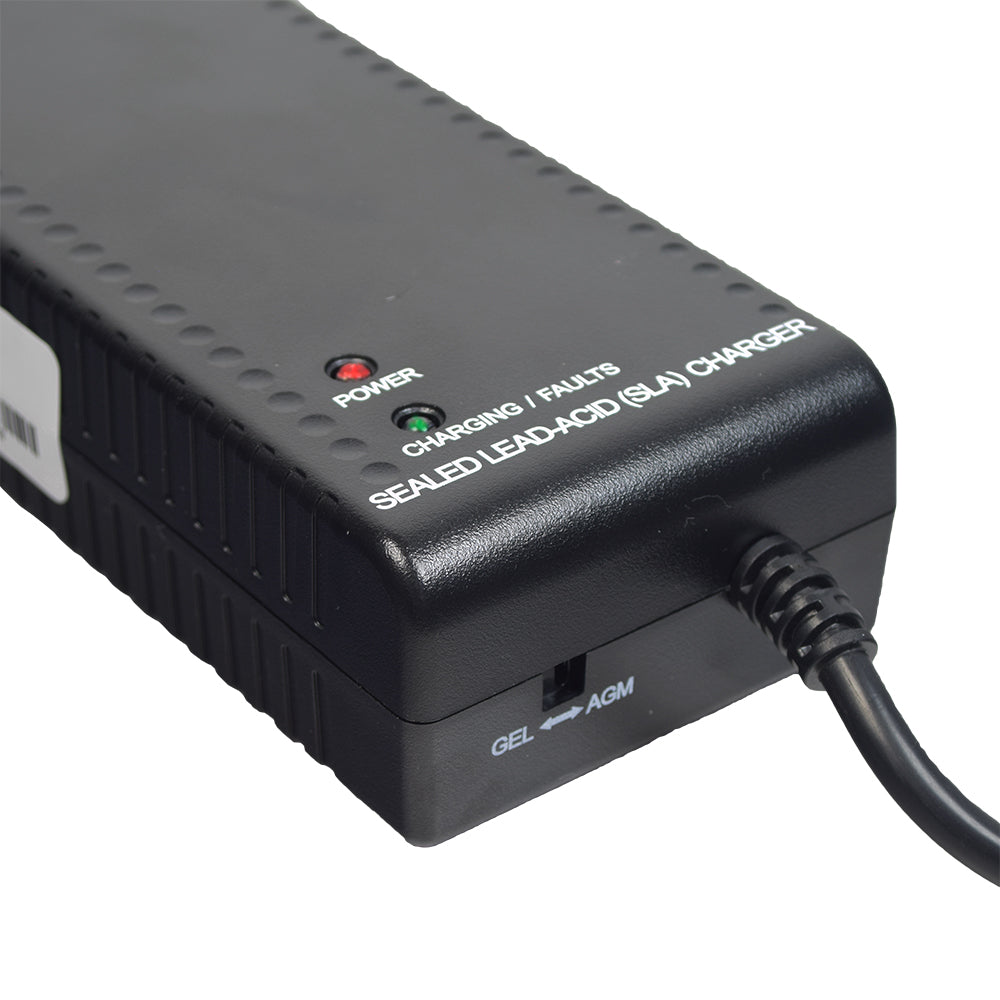

LED Display - 3 LED displays indicate the charging status: power on, charging, charged.

Light Weight - Switch mode chargers are very much lighter than linear chargers.

Warranty Information:
Monster Scooter Parts is proud to announce a full 1 year warranty on this battery charger, covering defects in material and workmanship for a period of 1 year (12 months) from the date of receipt. Our full warranty policy can be viewed at the following link:

Monster Scooter Parts Warranty Policy

Please note that the instructions you receive with this battery charger may state "suitable for lead acid batteries only." Do not be confused by this. GEL and AGM batteries are both forms of sealed "lead acid" batteries. Therefore, this battery charger is fully compatible with both AGM and GEL batteries, although it is optimized for use with GEL batteries.

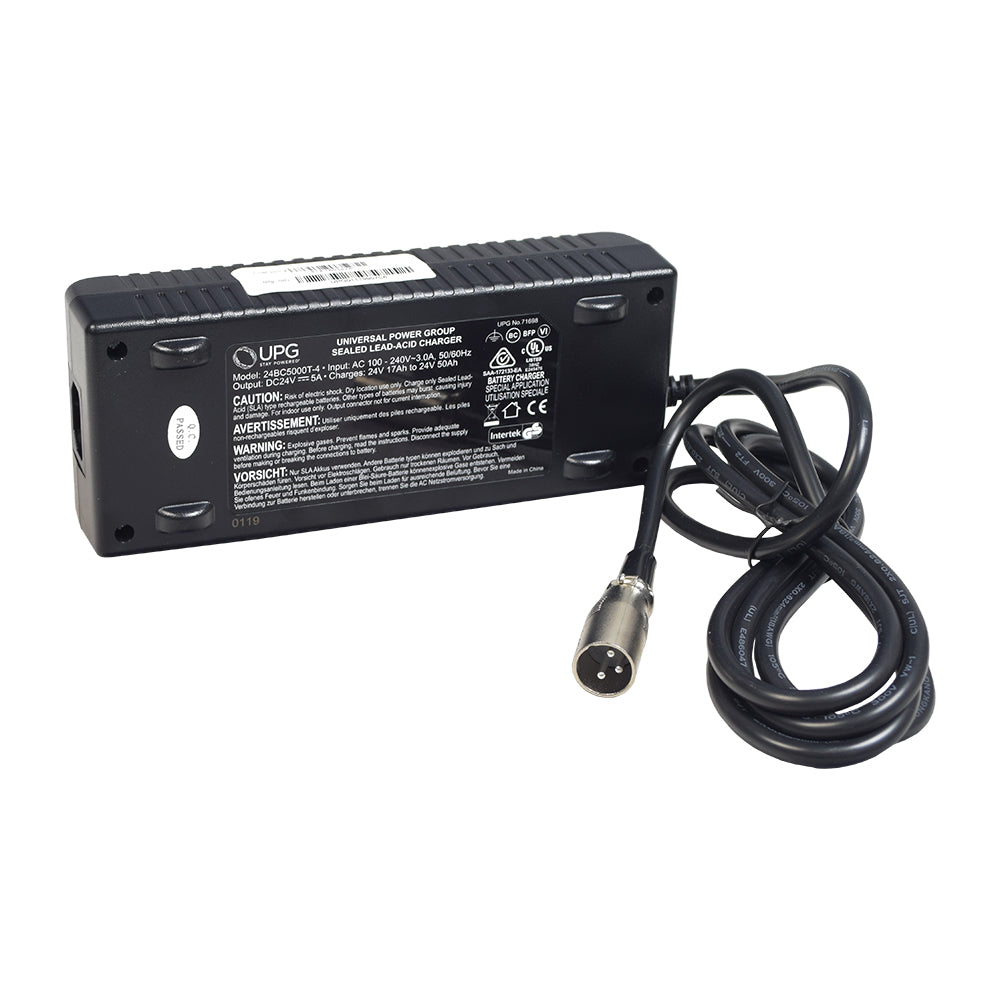

Universal Power Group (UPG): 24BC5000T-4 (replaces 24BC5000TFG-1)

⚠ WARNING California Residents: Proposition 65 Warning

Model: 24BC5000T-4 (replaces 24BC5000TFG-1)
Input Voltage: 100-240 VAC +/- 10%
Input Frequency: 47-63 Hz
Output Voltage Fast Charge (Bulk): DC 28.8V +/- 0.5V
Output Voltage Float: DC 26.4V +/- 0.5V
Output Current: 5.0A (Fast Charge Bulk)
Recommended Battery Capacity: 15-50 Ah
Operating Temperature: +32℉ to +104℉ (0℃ to 40℃)
Storage Temperature: -4℉ to +140℉ (-20℃ to +60℃)
