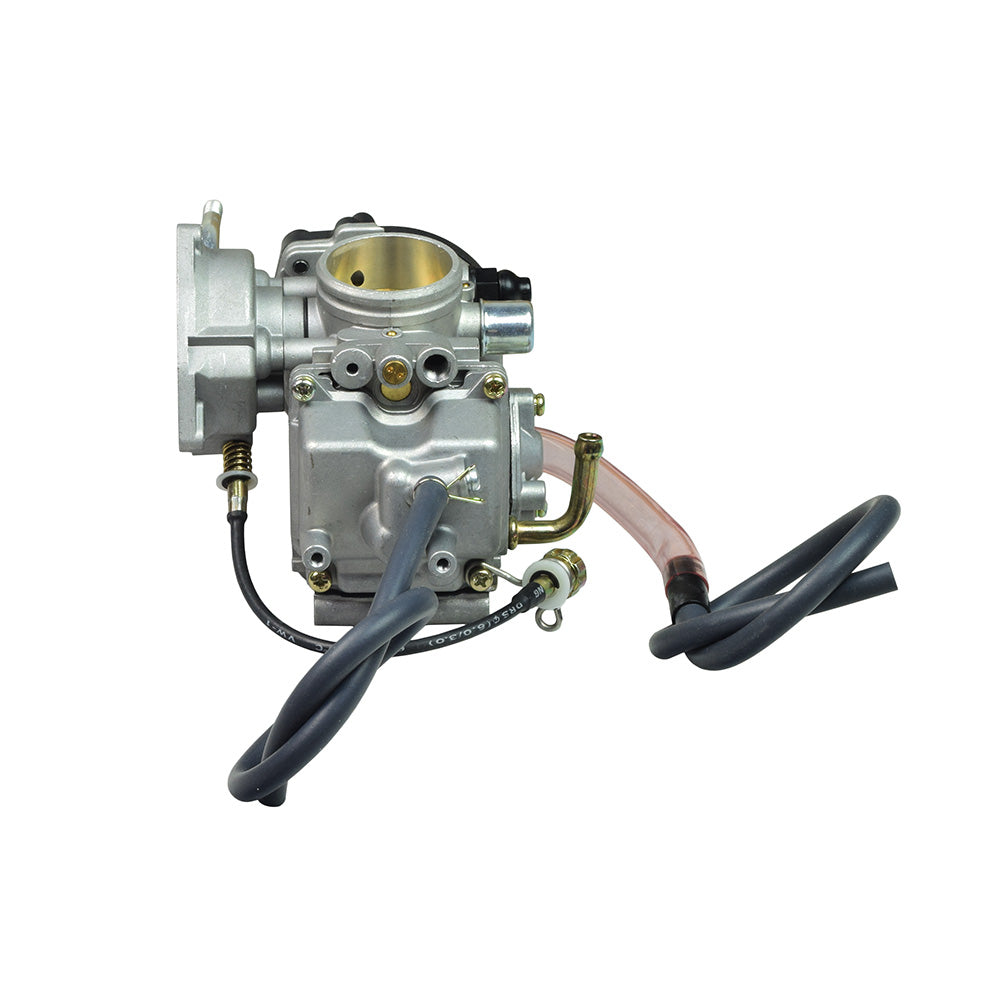

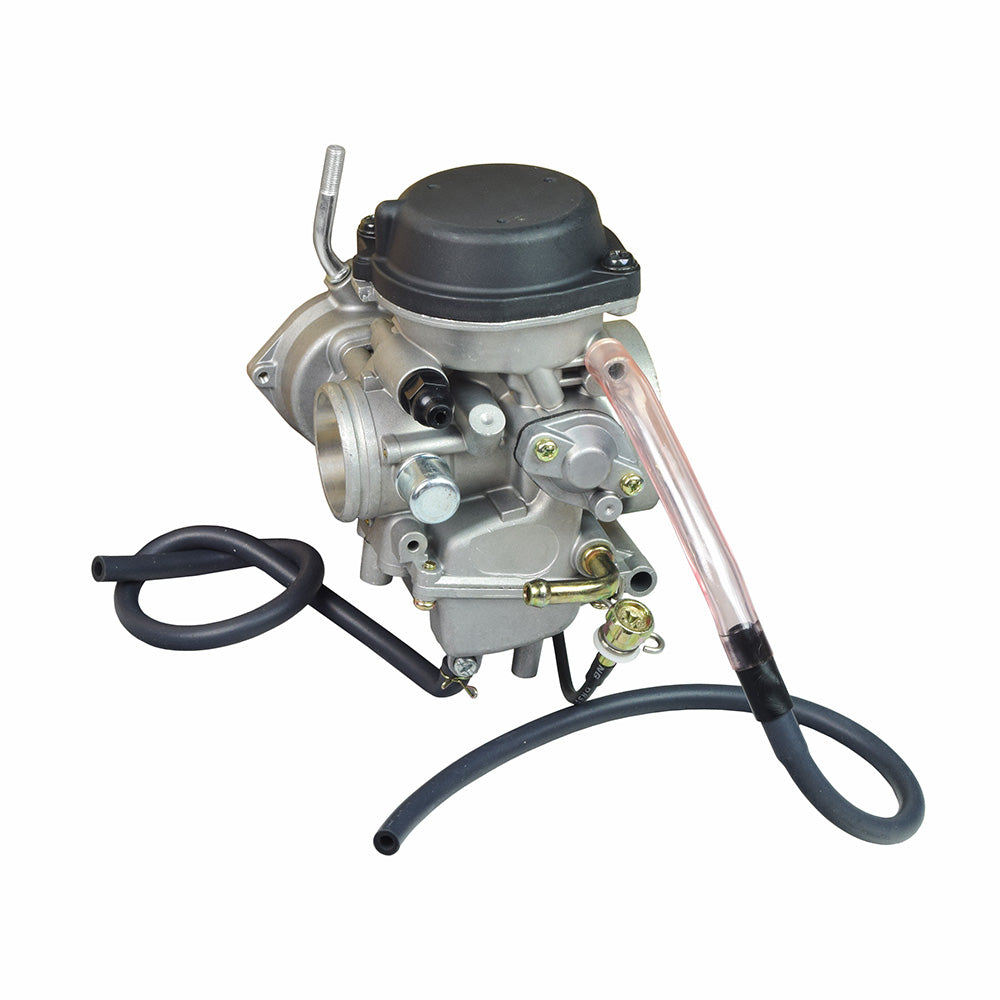

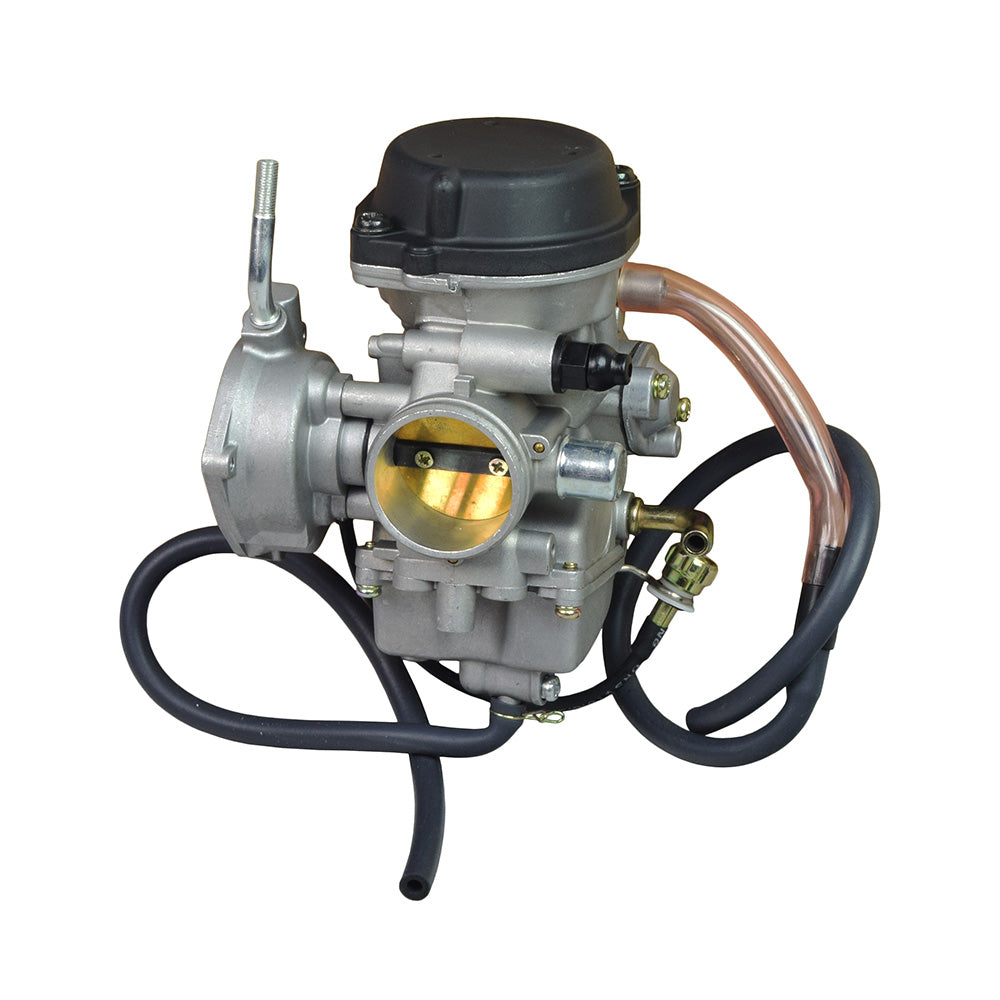

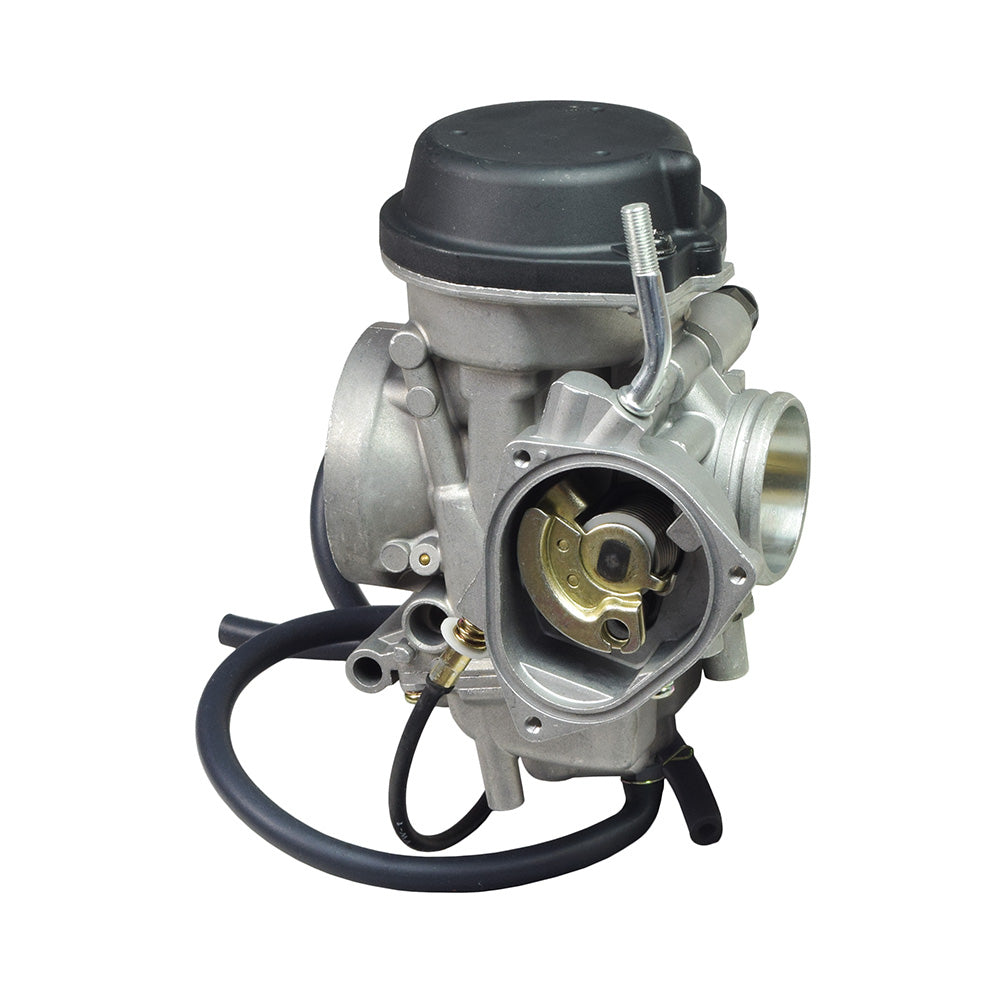

PD36J Carburetor for the Kawasaki KFX 400 (2003-2006)

If and when a replacement PD36J carburetor for your Kawasaki KFX 400 (2003-2006) is in order, this is a first-class carburetor with a manual cable choke. The PD36J carburetor has been used on a variety of ATVs and other power sports applications with engines in the 350cc - 400cc class.

Constant Velocity Carburetors:
The constant velocity carburetor, often referred to as a CV carb, operates through the use of a slide, tapered needle, diaphragm, and a butterfly. The throttle cable is not connected to the slide, it operates the butterfly which is located on the engine side of the carburetor. As the butterfly is opened more air is able to flow in. This changes the air pressure in the bore, pushing up the diaphragm and drawing the slide and tapered needle with it. Similar to the cable slide carburetor, when the needle is raised more fuel is supplied and as the butterfly opens more air is added to the mix.

⚠ WARNING California Residents: Proposition 65 Warning

Engine Size(s): 350cc - 400cc
Engine Intake Inner Diameter: 36 mm
Engine Intake Outer Diameter: 42 mm
Air Intake Outer Diameter: 57.9 mm
Air Intake Inner Diameter: 54.3 mm
Overall Height: 14.5 cm
Choke: Manual
Drain: No
Fuel Shutoff: No
