Monster Scooter Parts | SKU:
Z09-1665

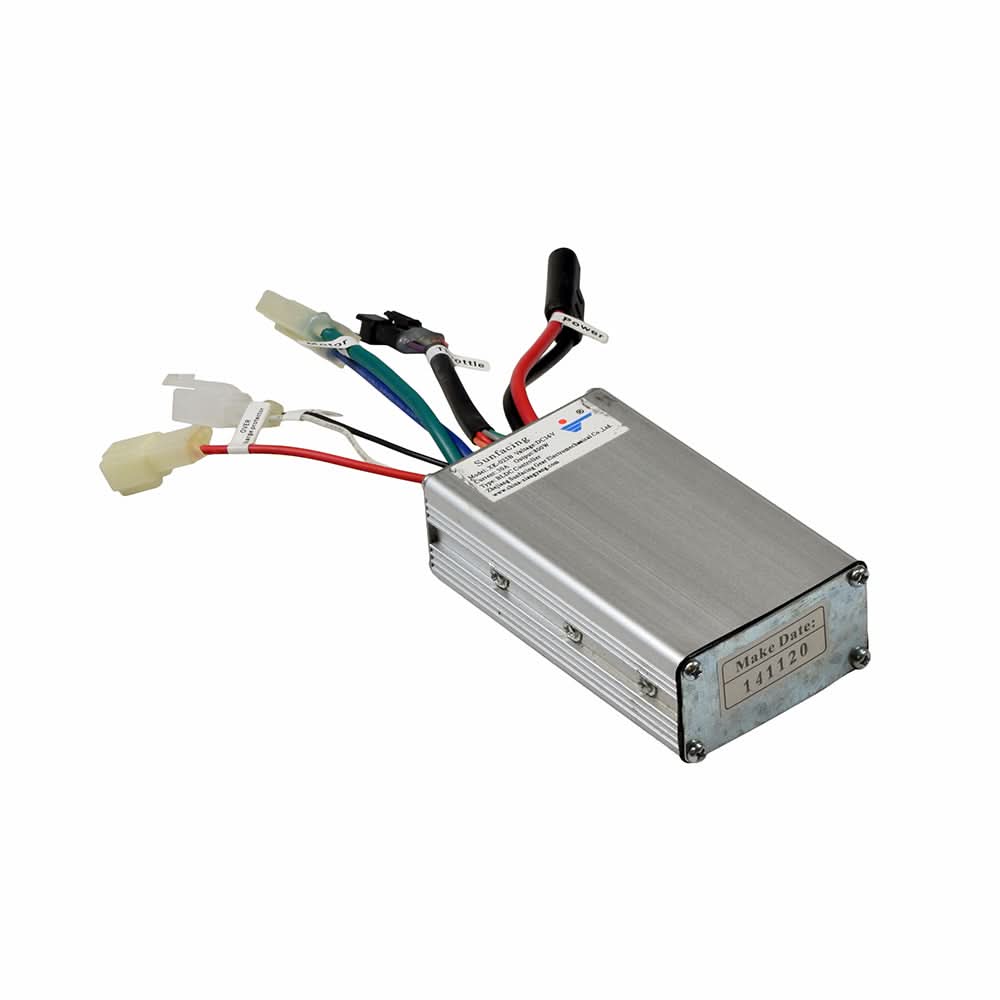

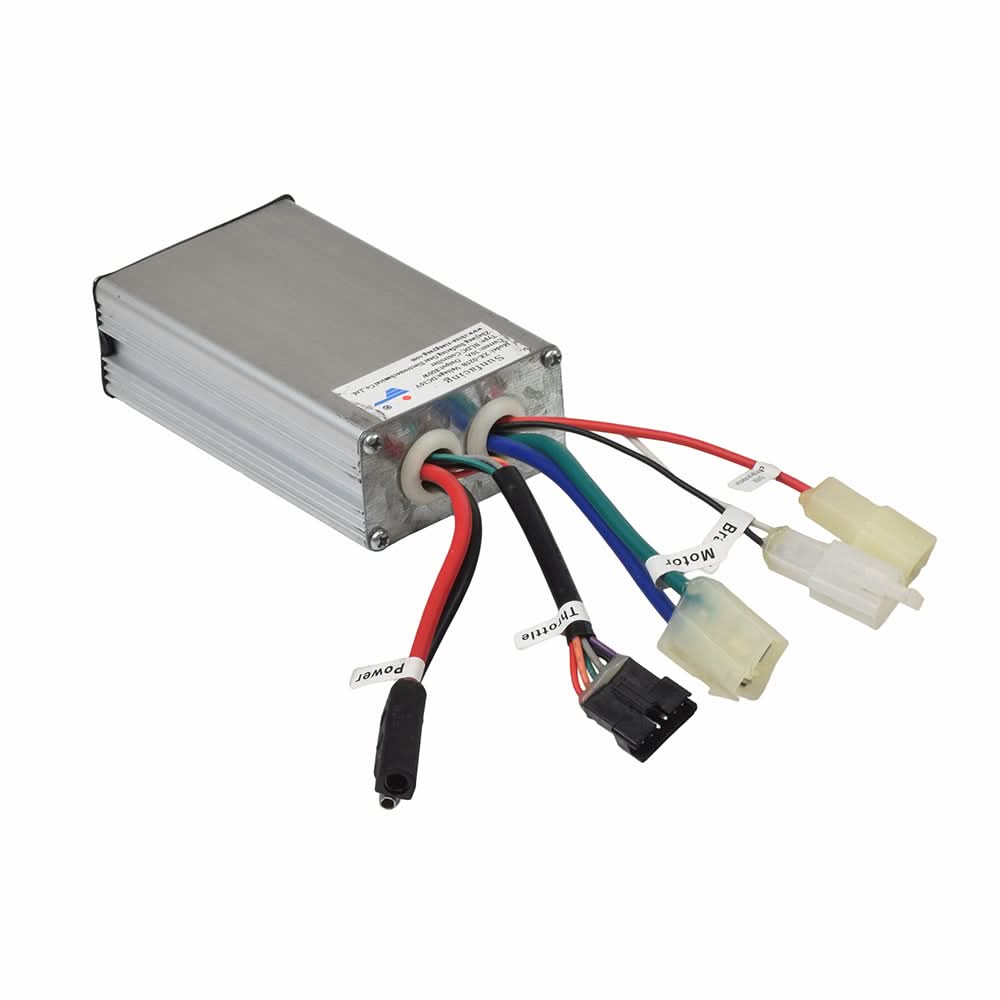

Currie 36 Volt 6-Pin Controller (600, 750, & 1000 Series Schwinn, GT, IZIP, eZip, & Mongoose Scooters)
$49.99
Unit price
/
Unavailable
Currie 36 Volt 6-Pin Controller (600, 750, & 1000 Series Schwinn, GT, IZIP, eZip, & Mongoose Scooters) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description
Factory OEM electric scooter controller from Currie Technologies.
The 36 Volt 25-30 Amp diagnostic voltage controller is an exclusive Currie Technologies design, with Currie's PWM Smart Power Microprocessor. The controller is fully water- proof, with brake inhibit power cut off.
Controller comes with four connectors for easy installation. Note that the flat black connector contains six pins within the connector (connected by six wires). Not compatible with 3-pin or 5-pin versions.

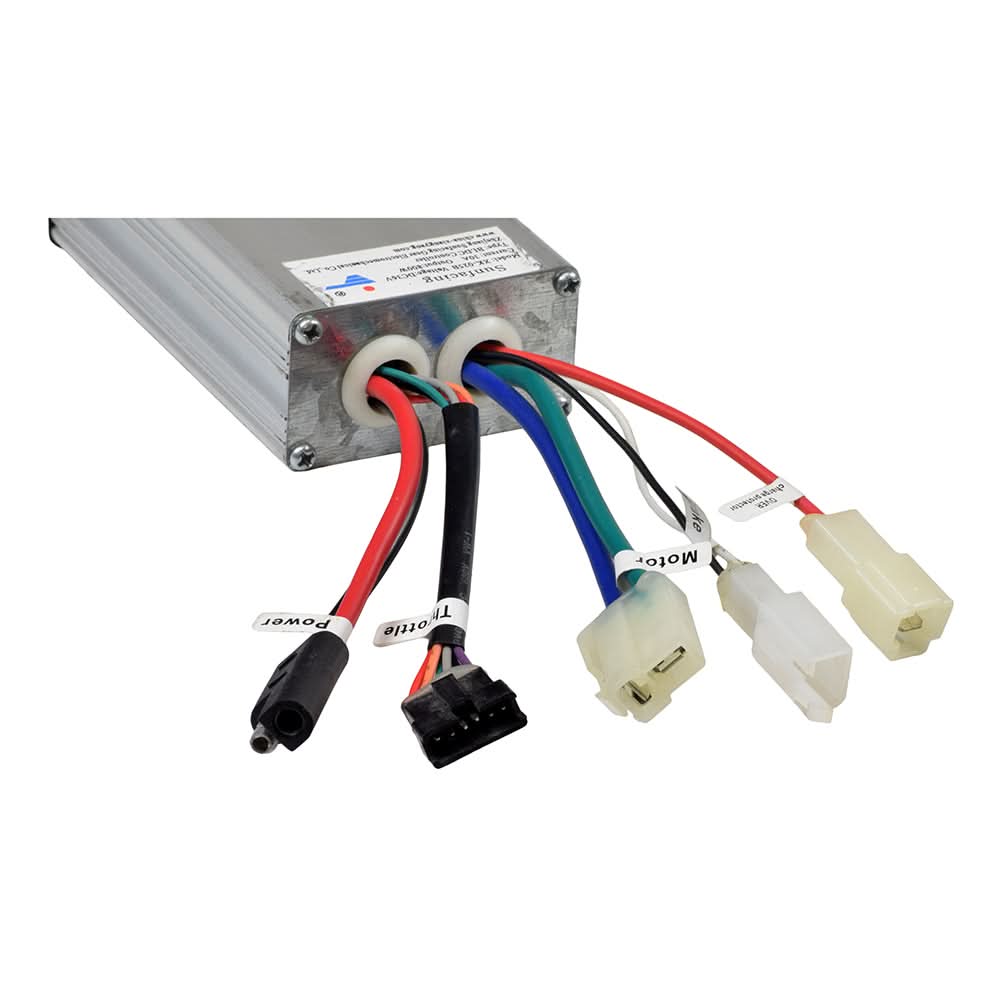

Connectors:
1. White connector with two wires - blue and green.
2. Black connector with two wires - black and red.
3. White connector with two wires - black and red.
4. Black connector with six wires - red, yellow, green, blue, black, and purple.
Input Voltage: 36V
Control Voltage: 1-4V
Output Current: 25-30A(M)
Known Compatibility (6-Pin Connector Versions):
⚠ WARNING California Residents: Proposition 65 Warning
The 36 Volt 25-30 Amp diagnostic voltage controller is an exclusive Currie Technologies design, with Currie's PWM Smart Power Microprocessor. The controller is fully water- proof, with brake inhibit power cut off.
Controller comes with four connectors for easy installation. Note that the flat black connector contains six pins within the connector (connected by six wires). Not compatible with 3-pin or 5-pin versions.
Connectors:
1. White connector with two wires - blue and green.
2. Black connector with two wires - black and red.
3. White connector with two wires - black and red.
4. Black connector with six wires - red, yellow, green, blue, black, and purple.
Input Voltage: 36V
Control Voltage: 1-4V
Output Current: 25-30A(M)
Known Compatibility (6-Pin Connector Versions):
- eZip 1000 Electric Scooter
- GT GT750 Electric Scooter
- IZIP I600 Electric Scooter
- IZIP I750 Electric Scooter
- IZIP I1000 Electric Scooter
- Mongoose M750 Electric Scooter
- Schwinn S600 Electric Scooter
- Schwinn S750 Electric Scooter
- Schwinn S1000 Stealth Electric Scooter
