Currie Technologies | SKU:
C80-8730

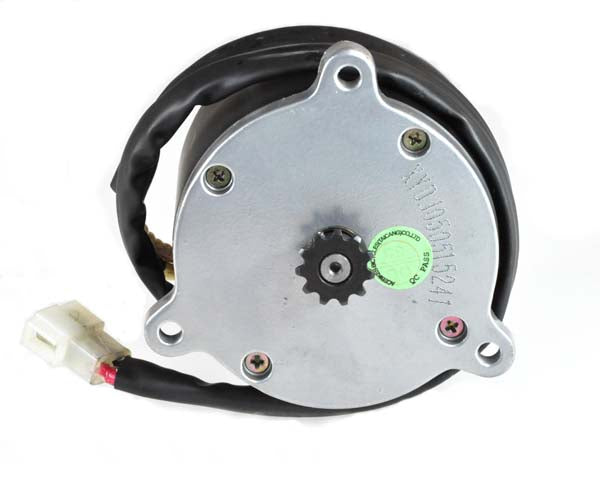

36 Volt 750 Watt Electric Motor with 11 Tooth #25 Chain Sprocket
$128.99
Unit price
/
Unavailable
36 Volt 750 Watt Electric Motor with 11 Tooth #25 Chain Sprocket is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description
36 Volt 750 Watt chain driven electric motor. Works on most 36 volt electric scooters, bikes, go karts, and mopeds.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Type: Brush
Voltage: 36 Volt DC
Sprocket: 11 Tooth, #25 Chain
Output: 750 Watts

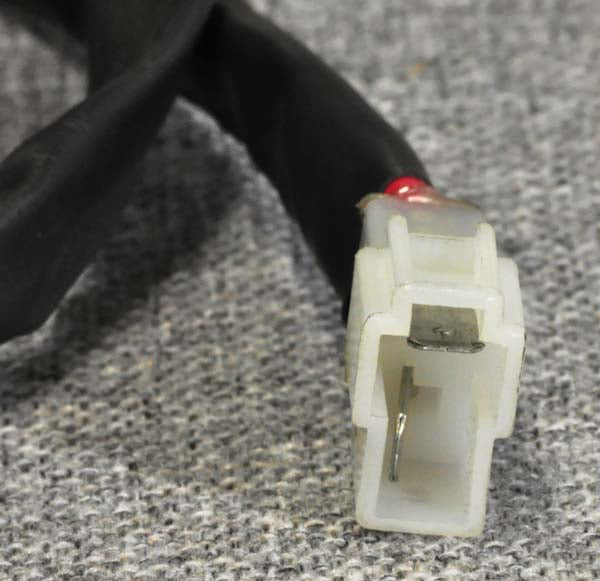

Wiring Harness: 30 1/2" With 2 Pins
Mounting Pattern: 3 Bolt
Sprocket: Removable Set-Screw Sprocket
Case Length: 3-15/16" (100 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
