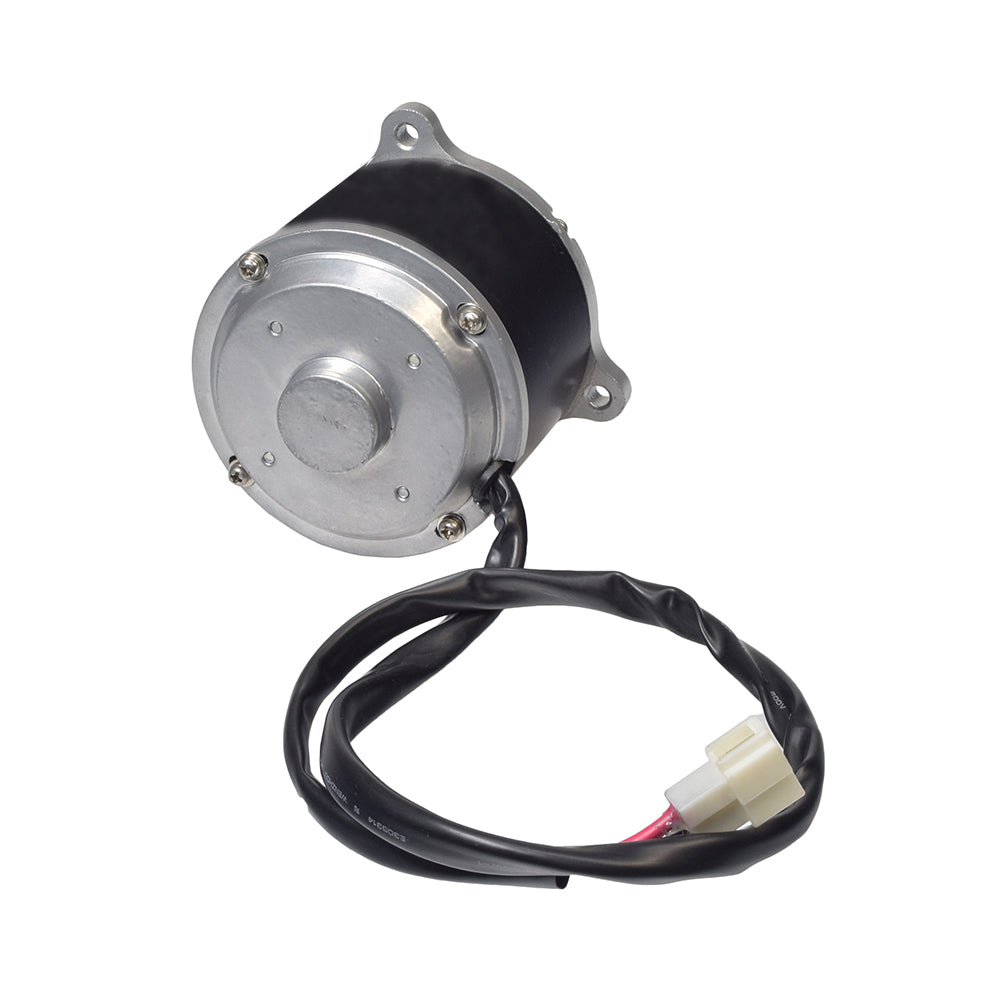

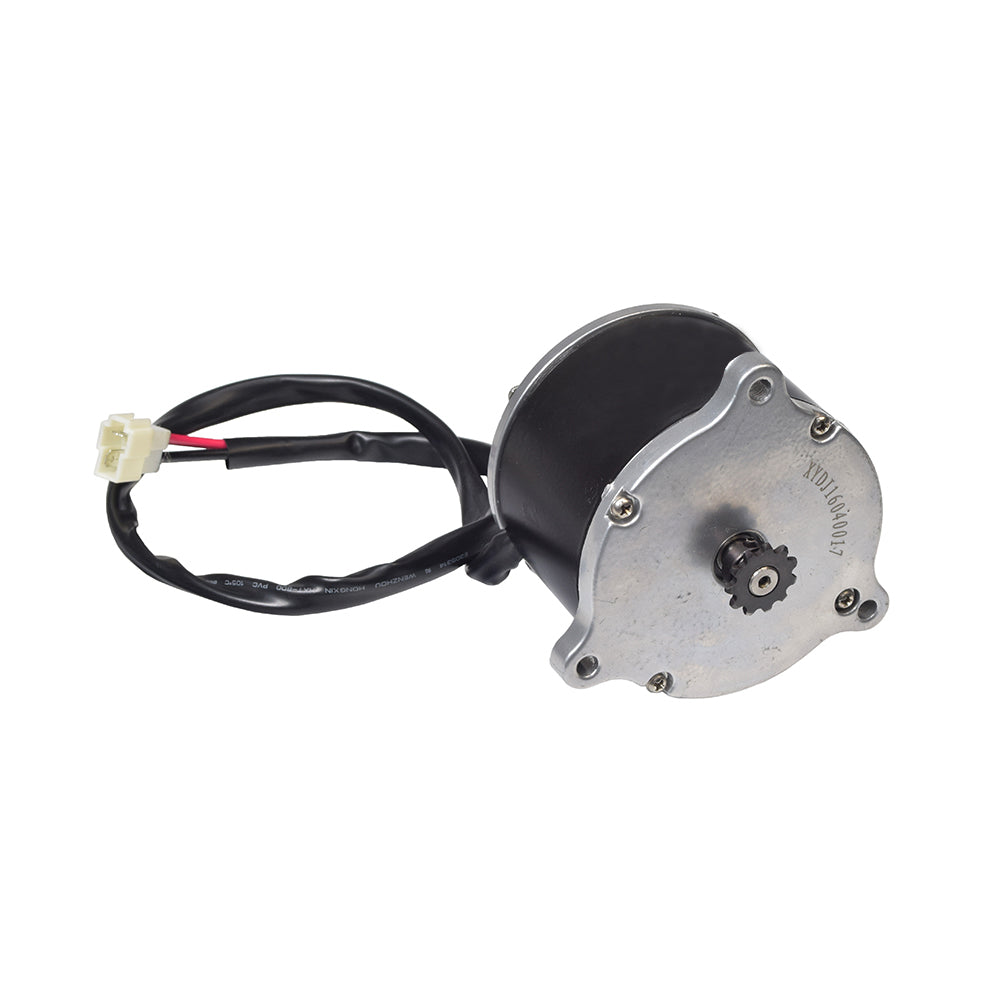

24 Volt 900 Watt XYD-13 Electric Motor with 11 Tooth #25 Chain Sprocket
$159.99
Unit price
/
Unavailable
24 Volt 900 Watt XYD-13 Electric Motor with 11 Tooth #25 Chain Sprocket is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 900 watt
- 11 tooth #25 chain sprocket
- Left or right rotation by reversing wires
- XYD-13 motor
- 2600 RPM
Description
Description
Currie Technologies provides high performance with this 24 volt 900 watt XYD-13 electric motor. You can dramatically increase low end torque and top end speed with this high power electric motor.
As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability. It will work with all the Currie OEM and Currie compatible parts.
This model comes outfitted with a universal mounting bracket suitable for most 24 volt electric scooters. This motor can also be used on custom bicycles, go karts and projects with the 24 volt 40 amp speed controller and hand throttle.
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Currie Technologies: MT-24900-001S
⚠ WARNING California Residents: Proposition 65 Warning
As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability. It will work with all the Currie OEM and Currie compatible parts.
This model comes outfitted with a universal mounting bracket suitable for most 24 volt electric scooters. This motor can also be used on custom bicycles, go karts and projects with the 24 volt 40 amp speed controller and hand throttle.
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Currie Technologies: MT-24900-001S
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (1)
Reviews (1)
Specifications
Specifications
Model: XYD-13 Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 34 amp
Output: 900 watts
Rotation: Reversible
Sprocket: 11 tooth #25 chain sprocket
Case Length: 3-3/4" (95 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
