Invacare  |  SKU: P49-9087  | Golden Technologies: MBC-GLA80843  | Invacare: 1165094  | PaceSaver: 82674  | Shoprider: 301201-22  | Pride Mobility: PLSINDV1264

Keypad for the 4 Key Dynamic Shark DK-REMD01 and DK-REMD02 (MK5 SPJ+) Joystick

$29.99

Pre-Black Friday Sale - Save 15% with coupon code: PBF15

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • Easy to read symbols
  • Save money
  • Easy peel & stick installation
  • Wide compatibility

Description

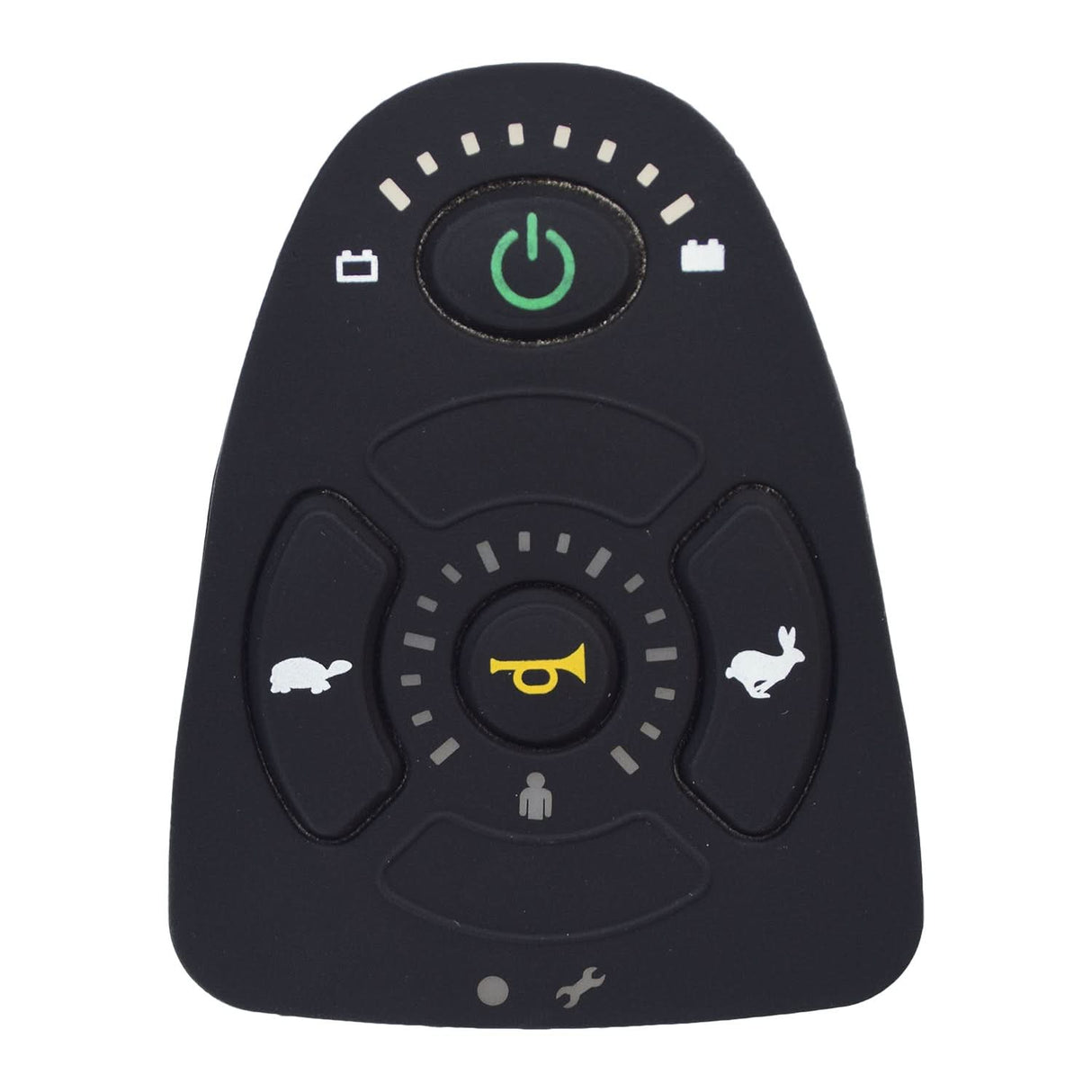

Replacement keypad for the 4 key Dynamic Shark DK-REMD01 joystick remote. This part is sometimes referred to as a joystick overlay.

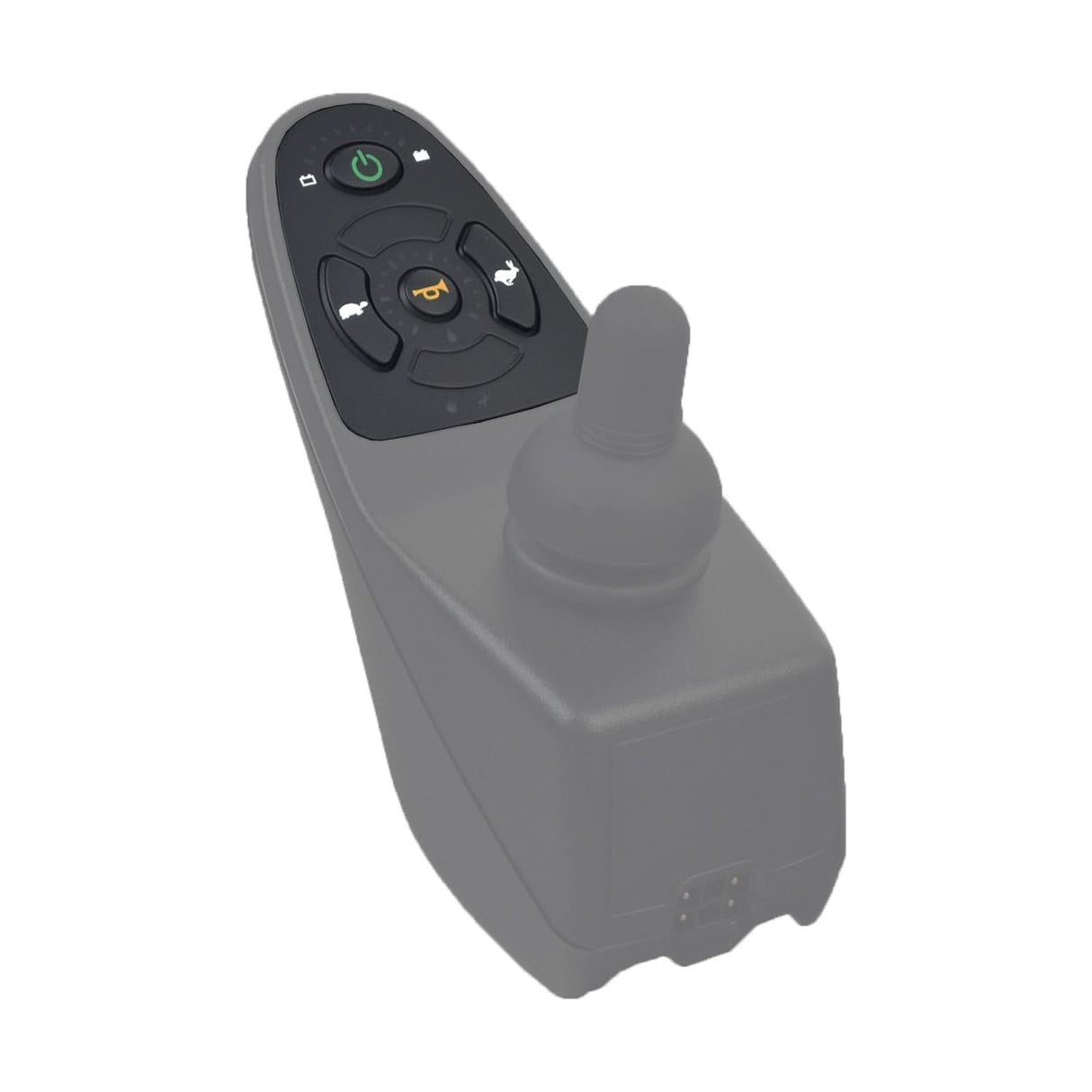

Also used on the Invacare MK5 SPJ+ (DK-REMD02) joysticks which are most commonly found on the Invacare Pronto series power chairs as well as several other Invacare power wheelchairs.

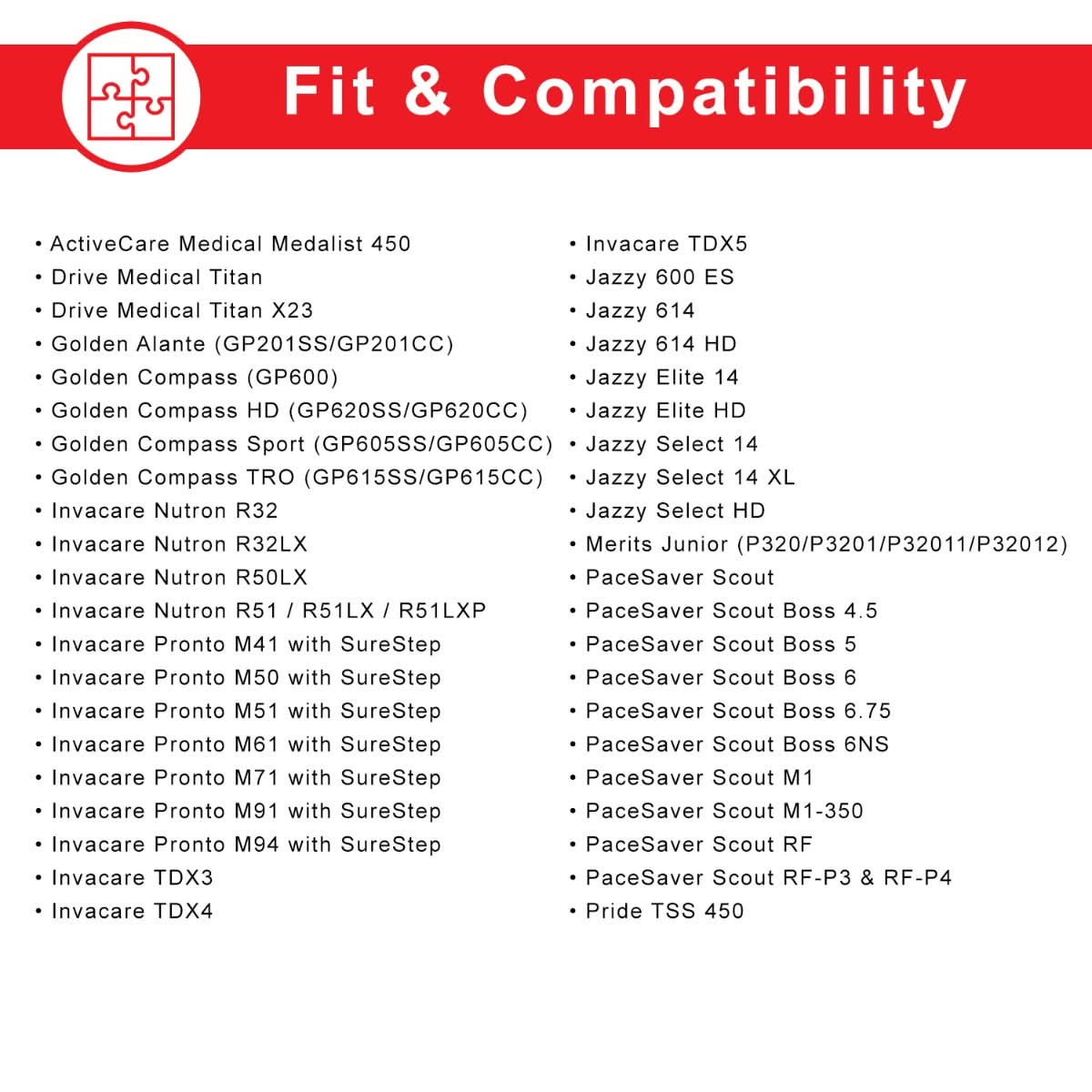

This remote is used on many power chairs, so please check the Compatibility tab for a listing of known compatible models.

Installation Instructions:
1. Ensure the wheelchair power is turned off.
2. Pull the gray collar back and disconnect the joystick cable from the joystick.
3. Peel up and remove the existing, damaged keypad from the joystick face plate.
4. Inspect the joystick contacts, face plate, and joystick housing for corrosion and/or damage.
5. Using an alcohol prep pad, remove any adhesive from the joystick face plate.
6. Ensure no adhesive remains around the rim of the joystick face plate.
7. Gently remove any adhesive that may have collected in the lighting or contact cutouts of the joystick face plate.
8. After cleaning, set the joystick aside for ten minutes to allow all alcohol to evaporate from the joystick face plate.
9. Inspect once more for adhesive lumps or residue. If necessary, repeat steps 5-8 to clean the joystick face again if adhesive is present.
10. Remove the backing from the new keypad.
11. Align the bottom edge of the keypad with the bottom edge of the joystick face plate. Ensure the keypad is properly aligned with the joystick face plate before installing. The overlay is not repositionable.
12. Working from the bottom up, gently press the keypad completely into the joystick face plate.
13. Firmly press the keypad into the joystick face plate ensuring proper seal between the adhesive and joystick face plate.
14. Ensure the keypad is completely seated into the joystick face plate and no air pockets or ripples are present around the edge of the keypad.
15. Connect the joystick cable to the joystick.
16. Turn on wheelchair power and test the joystick functions.
17. If the joystick does not function properly, you may have a faulty joystick.


Pride Mobility: PLSINDV1264
Golden Technologies: MBC-GLA80843
Invacare: 1165094
PaceSaver: 82674
Shoprider: 301201-22
