Monster Scooter Parts  |  SKU: X98-8219-001

Carburetor with 24 mm Air Intake & Water Trap for the Coleman RB200 212cc Mini Bike

$16.79

Filter

Save 13% with coupon code: FRIDAY13

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • Carburetor with optional standard filter or optional high performance filter
  • Water trap for cold weather operation
  • Trap keeps water, ice, crud & gunk from clogging the carb

Description

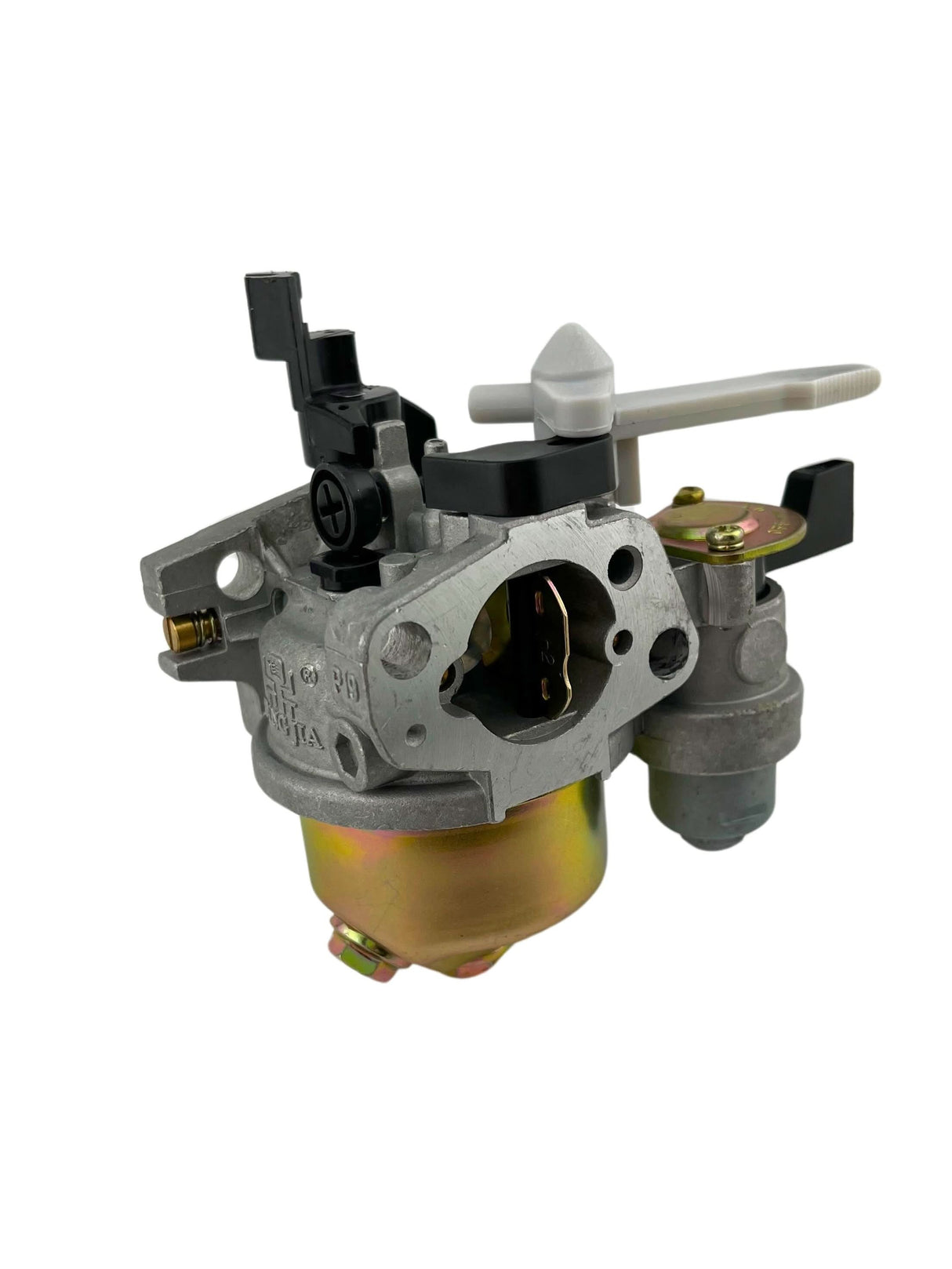

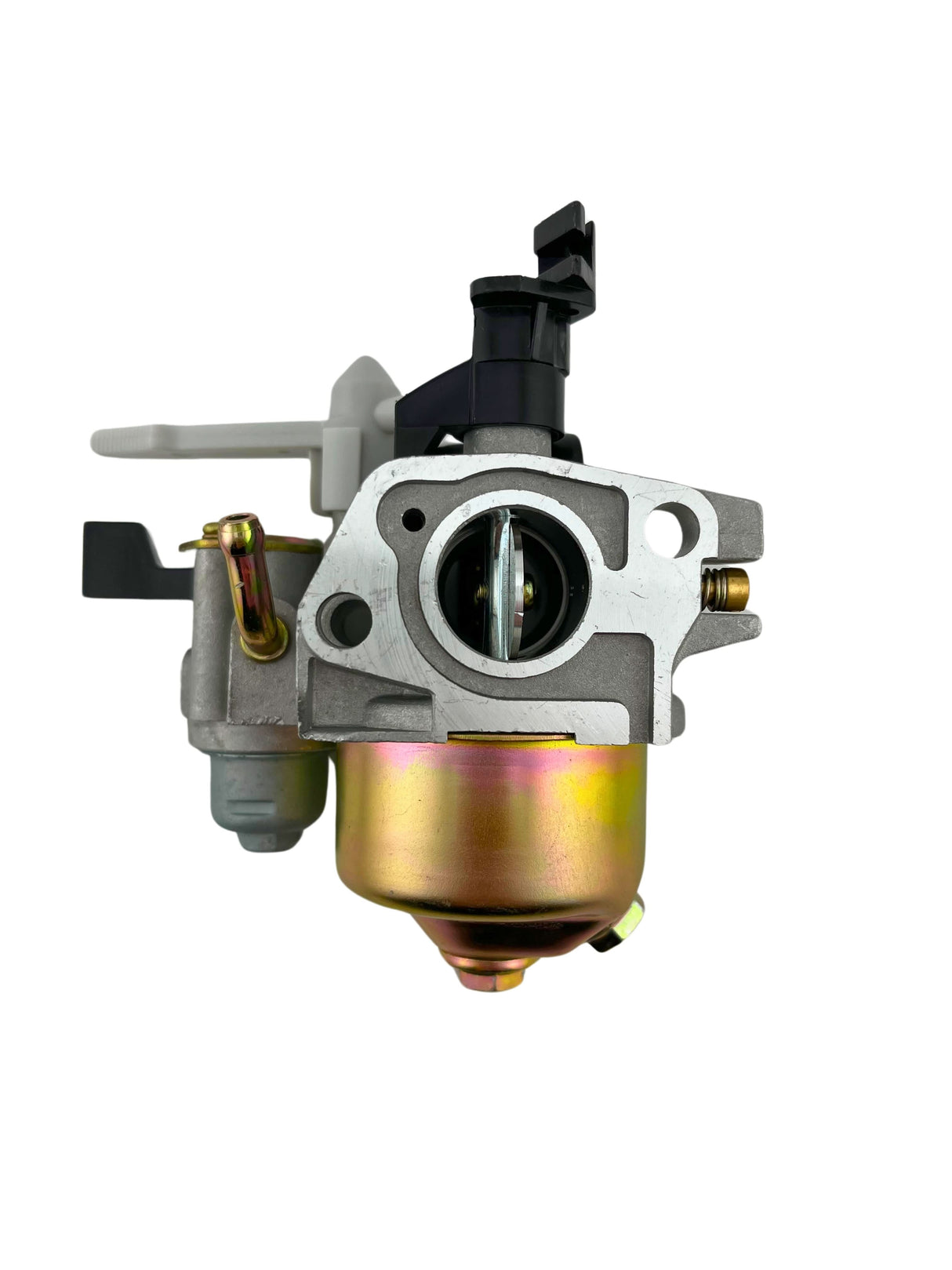

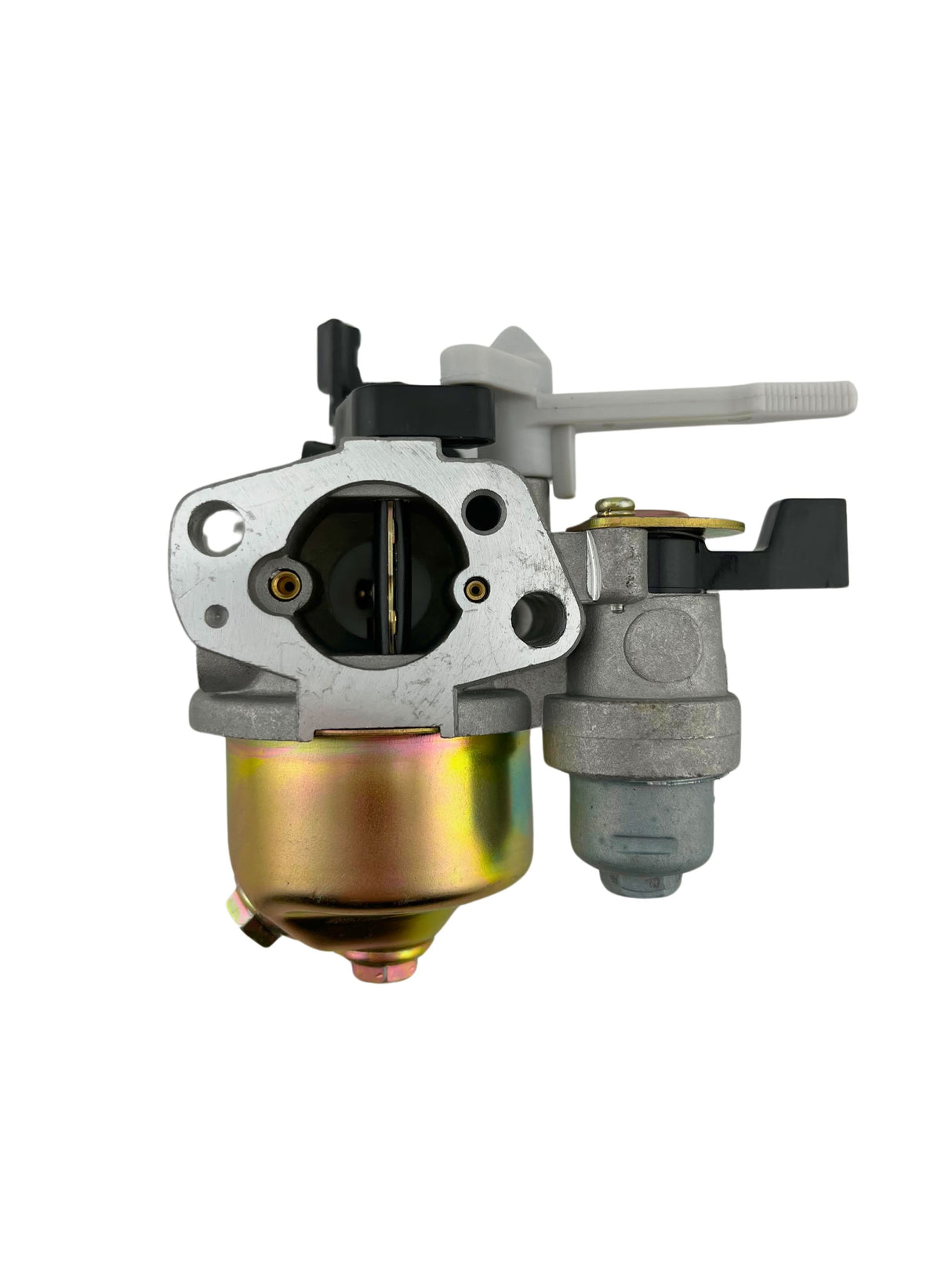

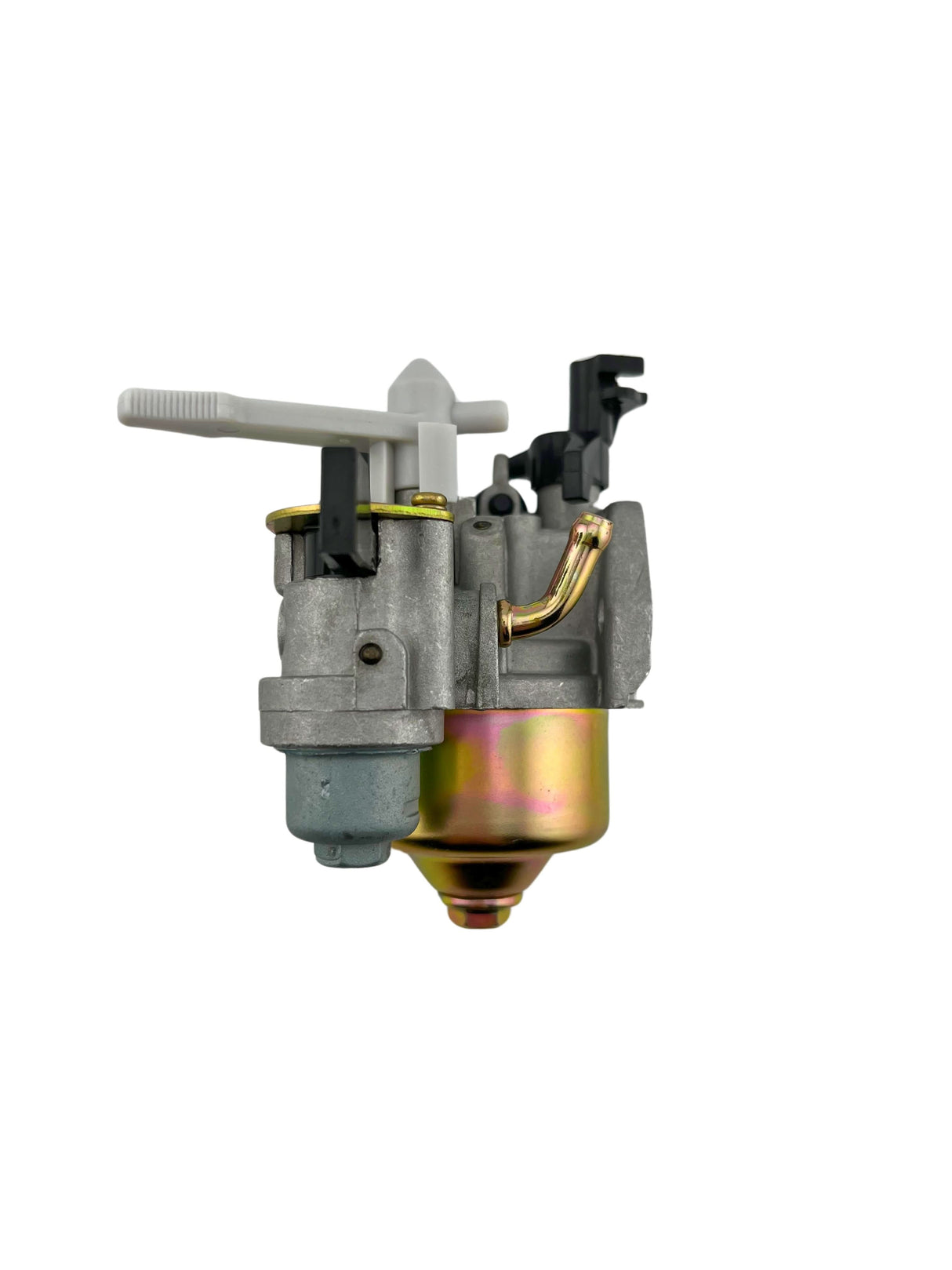

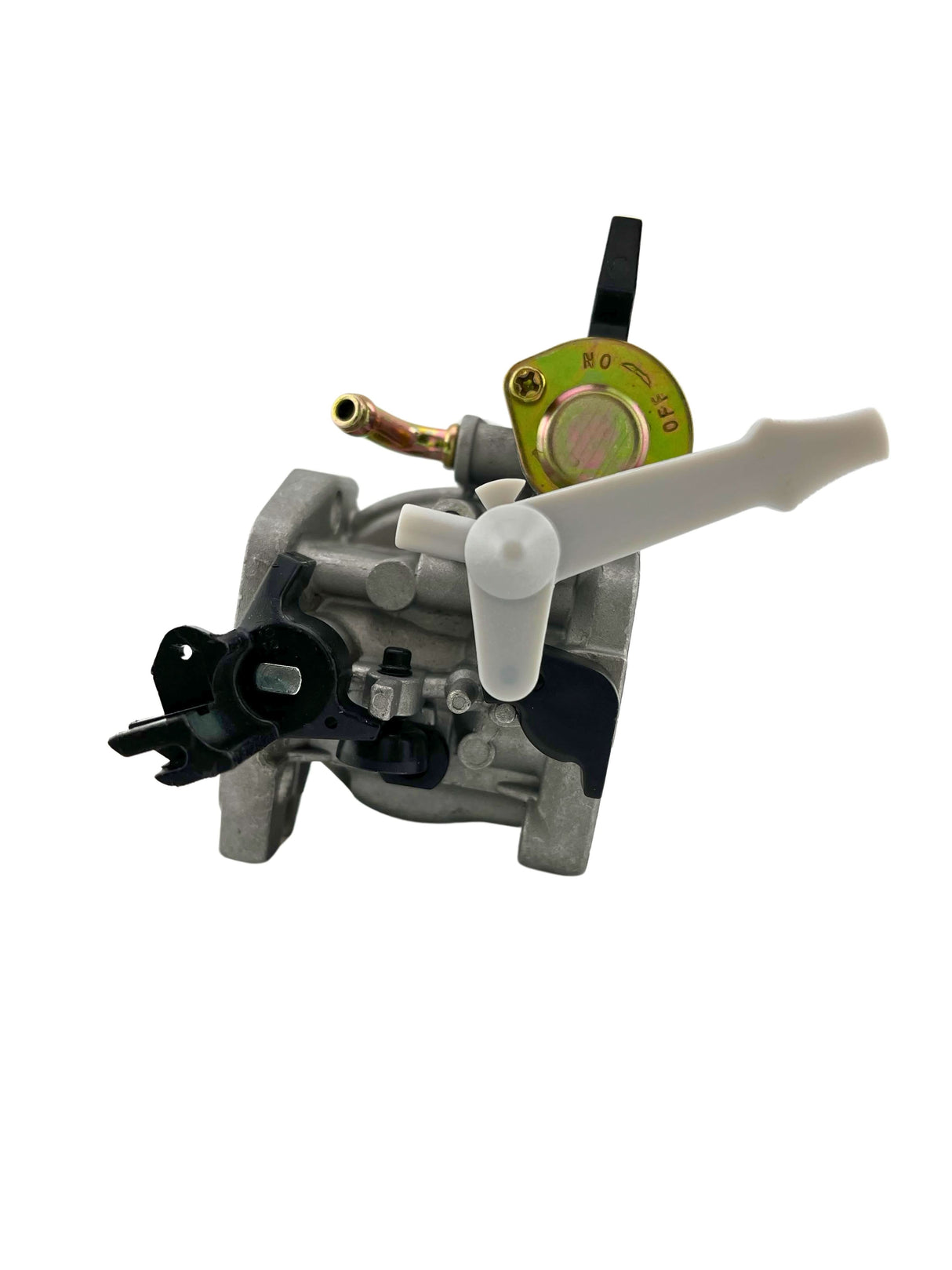

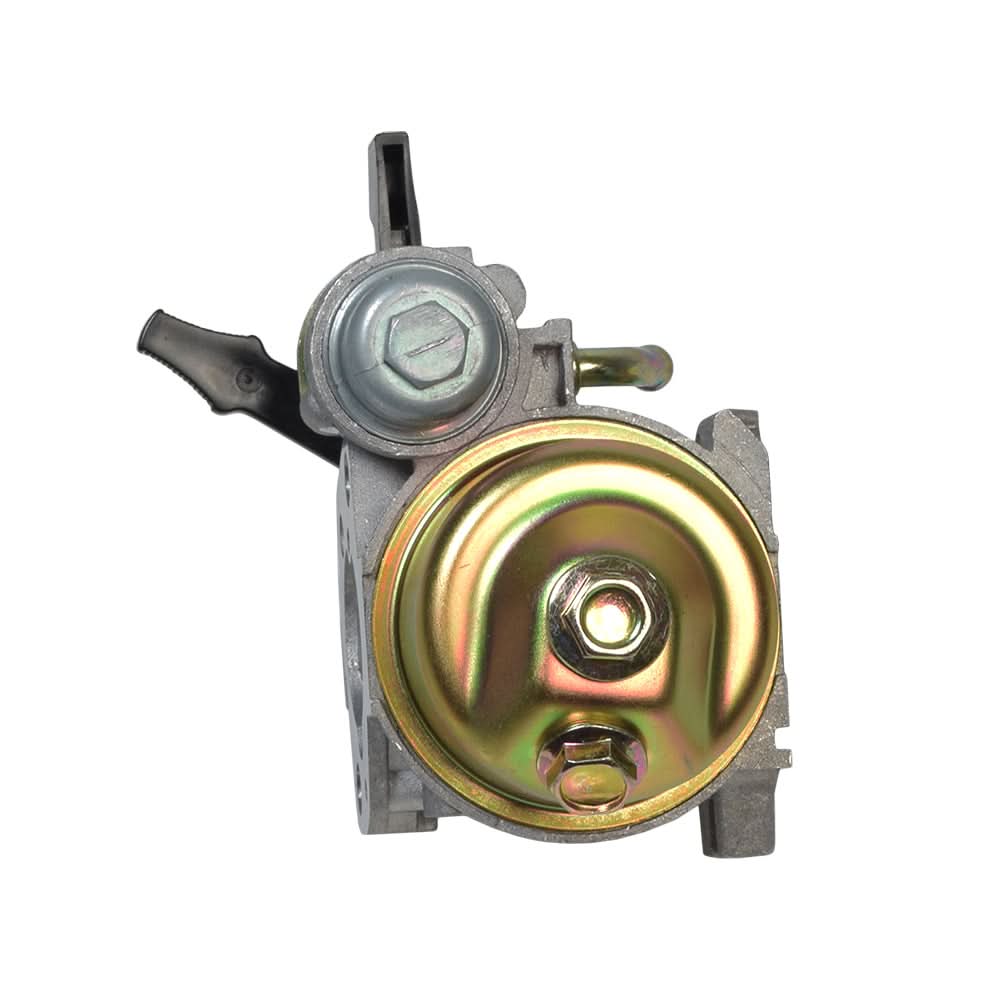

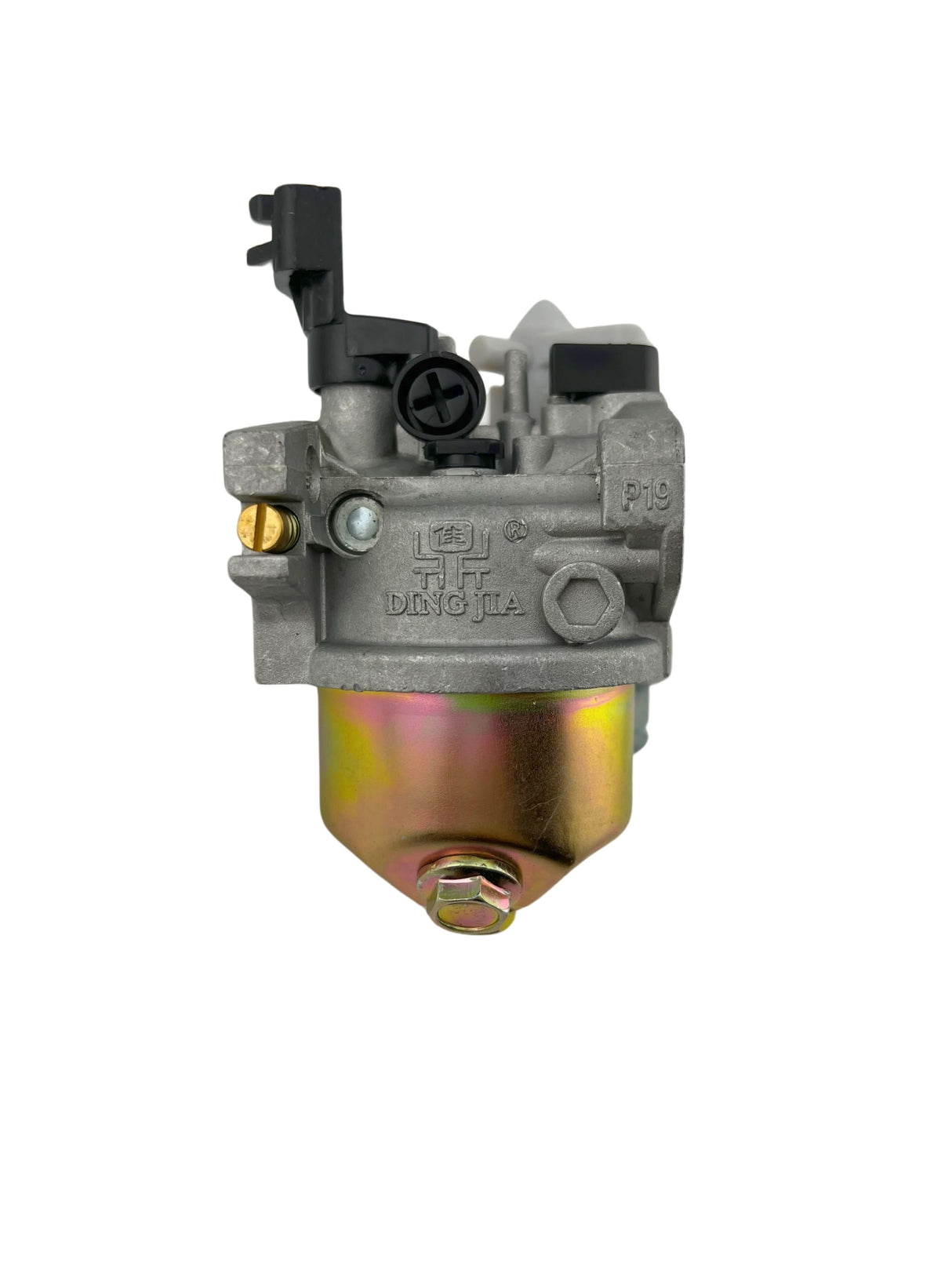

This carburetor with 24 mm air intake for the Coleman RB200 212cc) mini bike features a water trap feature that prevents water condensation from getting into your carb and freezing overnight. The trap is the small reservoir directly under the fuel cut-off switch, and it allows the carb to be periodically cleaned of water, ice, and other carb-clogging gunk. As well as the Coleman RB200 212cc this carburetor is compatible with 196cc, 200cc, and 212cc mini bike, pit bike, and go-kart engines, and is equipped with a manual choke, fuel shut off valve, and a water trap reservoir as shown.

Optional filters

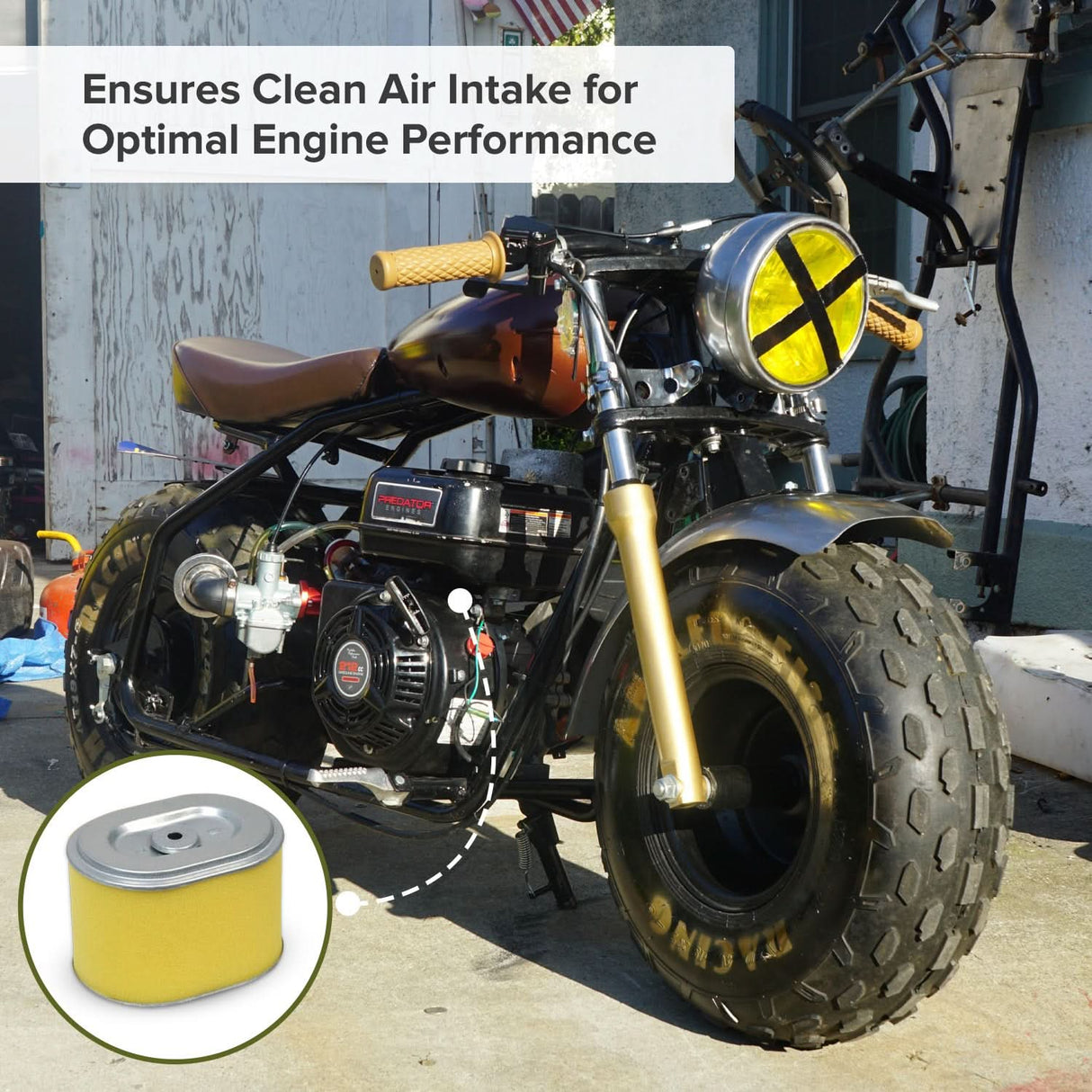

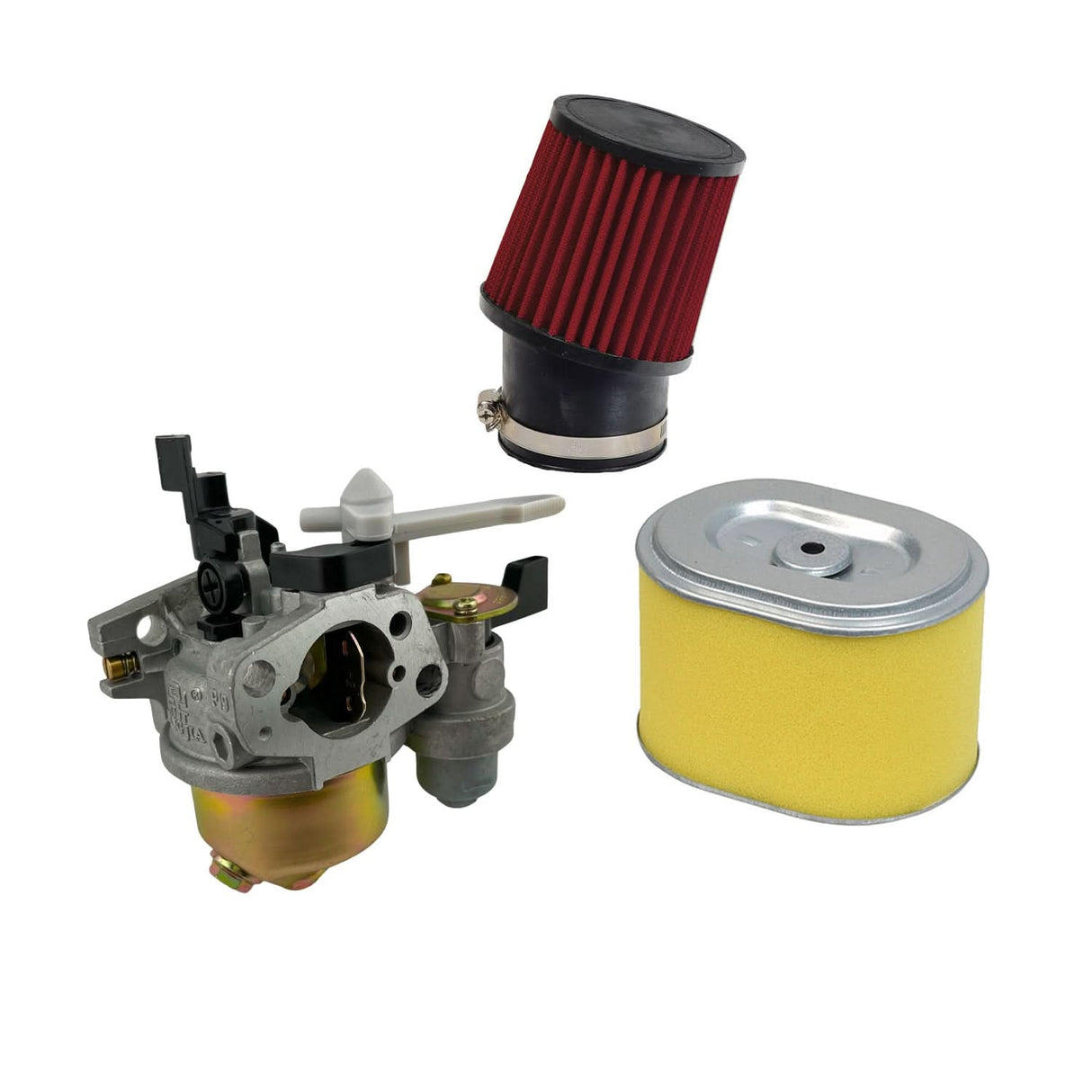

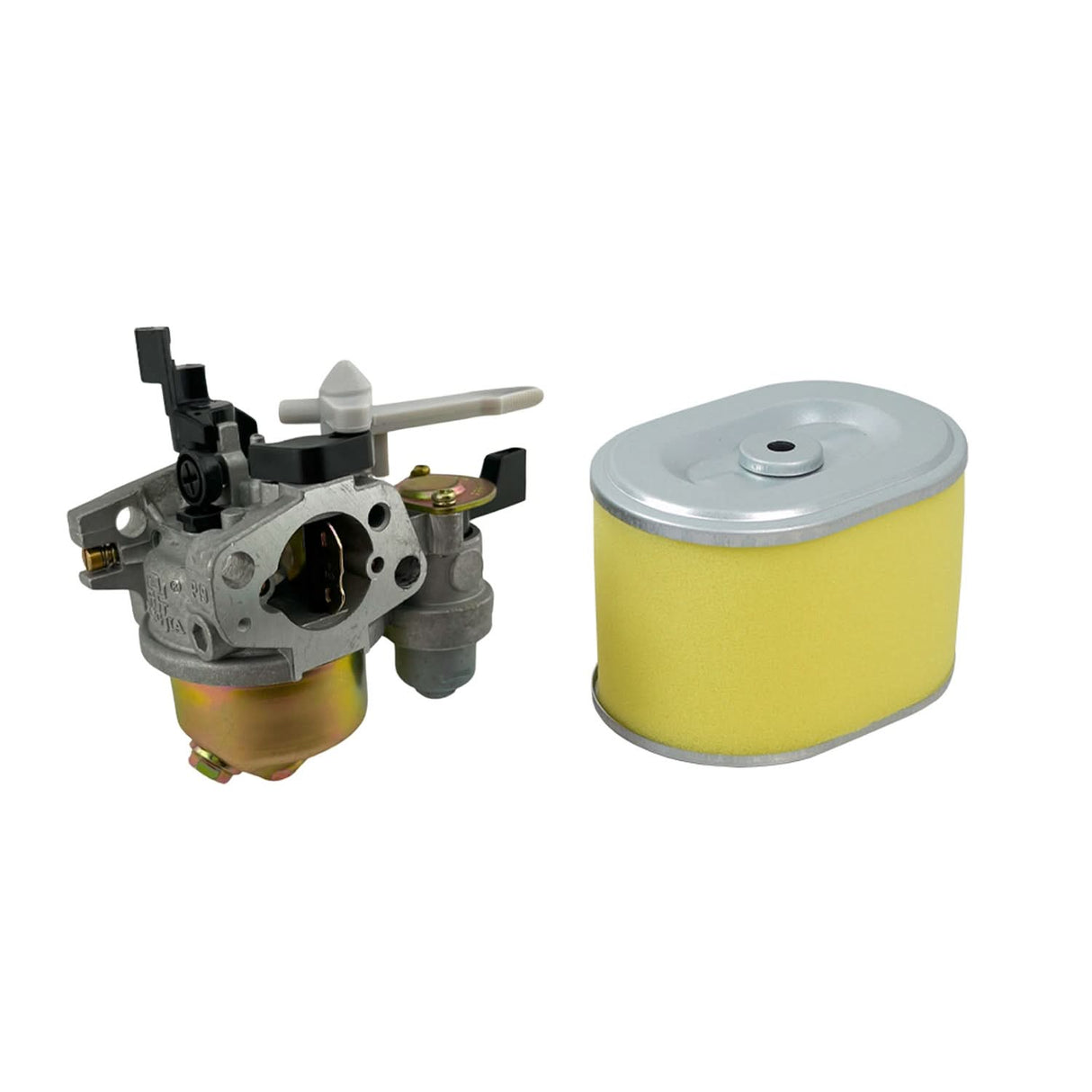

Because a carburetor works best when the air that flows into it is clean, we offer this fine carb with or without optional matching filters to keep the dust and crud out. Whether you only need the carb or if you prefer the carb & standard filter combo, we are sure that our easily-installed carburetor with 24 mm air intake and water trap will enhance your engine's performance. This carburetor is compatible with 196cc, 200cc, and 212cc mini bike, pit bike, and go-kart engines, and is equipped with a manual choke, fuel shut off valve, and a water trap reservoir as shown. In addition, we offer a high performance filter option as well.

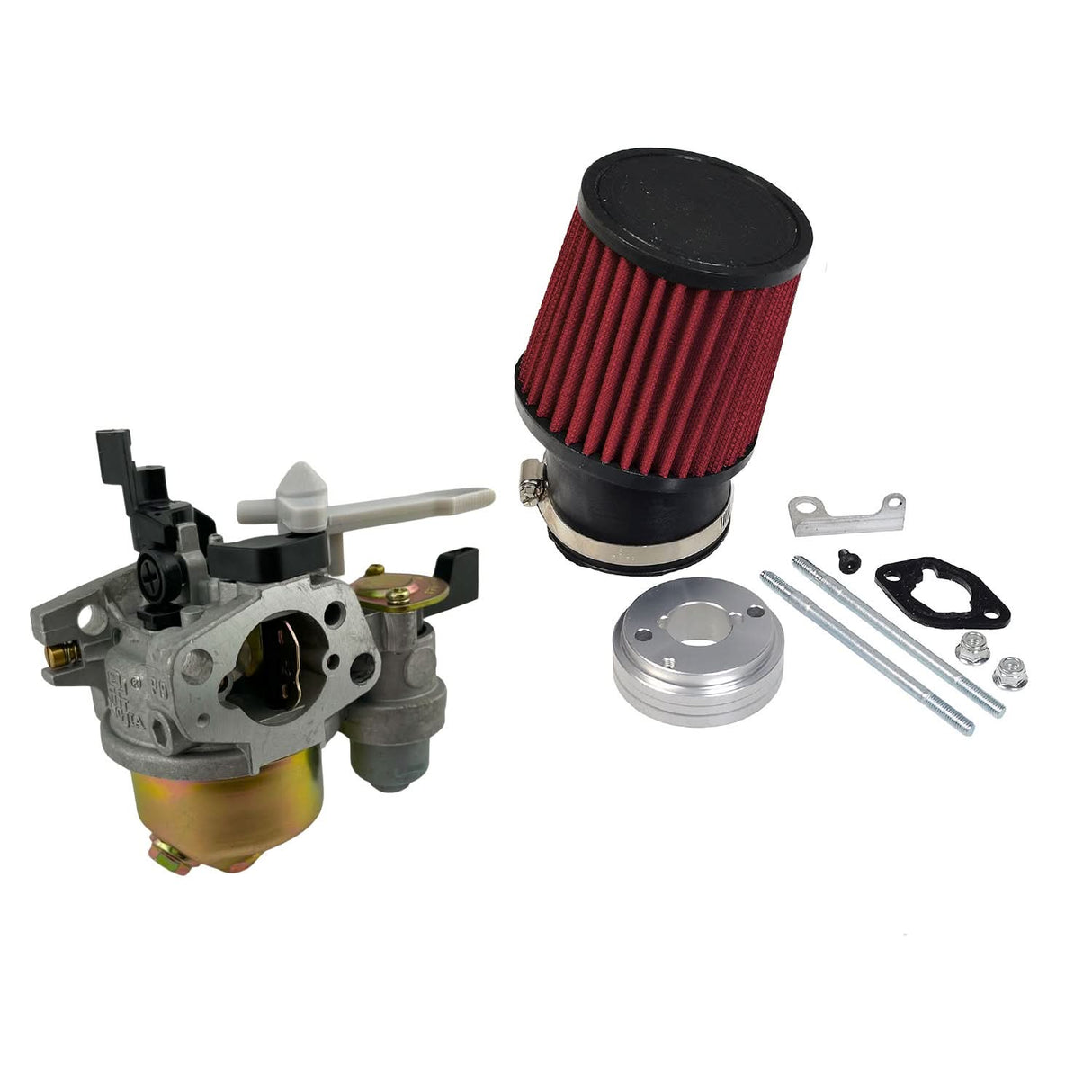

High Performance Filter Note: This filter option includes a velocity stack. This is the large machined alloy ring with a beveled inside diameter that fits into the rubber base of the filter. When mounting this filter assembly, always make sure that the wider end of the hole is inside of the filter and the smaller or narrower end of the hole is on the carburetor side. When properly mounted, the stack functions as a venturi, smoothing the airflow into the carburetor and likewise smoothing the engine's running.

We recommend replacing the carburetor gasket when replacing the carburetor, as it is easily ripped and torn when removing the old carburetor. The gasket can be found at the link below:

Carburetor Gasket & Insulator with 24 mm Air Intake for 163cc 5.5 Hp & 196cc 6.5 Hp Engines If cold weather running isn't an issue, you may want our 6.5 Hp GX200 Carburetor. It's the same carburetor, just without the auxiliary water trap.



⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Specifications

Engine Intake Inner Diameter: 19 mm
Air Intake Inner Diameter: 24 mm
Overall Depth: 5.4 cm
Overall Width: 8 cm
Overall Height: 10.5 cm
Center to Center Mounting Hole Distance: 43 mm
Mounting Holes Diameter: 6 mm
Choke: Manual Fuel Line Length: 16 cm +/-
Fuel Line Inner Diameter: 5 mm
Fuel Line Outer Diameter: 8 mm
Drain: No
Fuel Shutoff: Yes

Standard Filter:
Length: 100 mm
Width: 75 mm
Height: 70 mm

High Performance Filter:
Overall Diameter at Widest Point: 95 mm
Overall Diameter at Top: 85 mm
Rubber Intake Inner Diameter: 60 mm
Rubber Intake Outer Diameter: 74 mm
Overall Height: 160 mm
