Carburetor with 24 mm Air Intake for the Coleman DT200 196cc Drift Trike

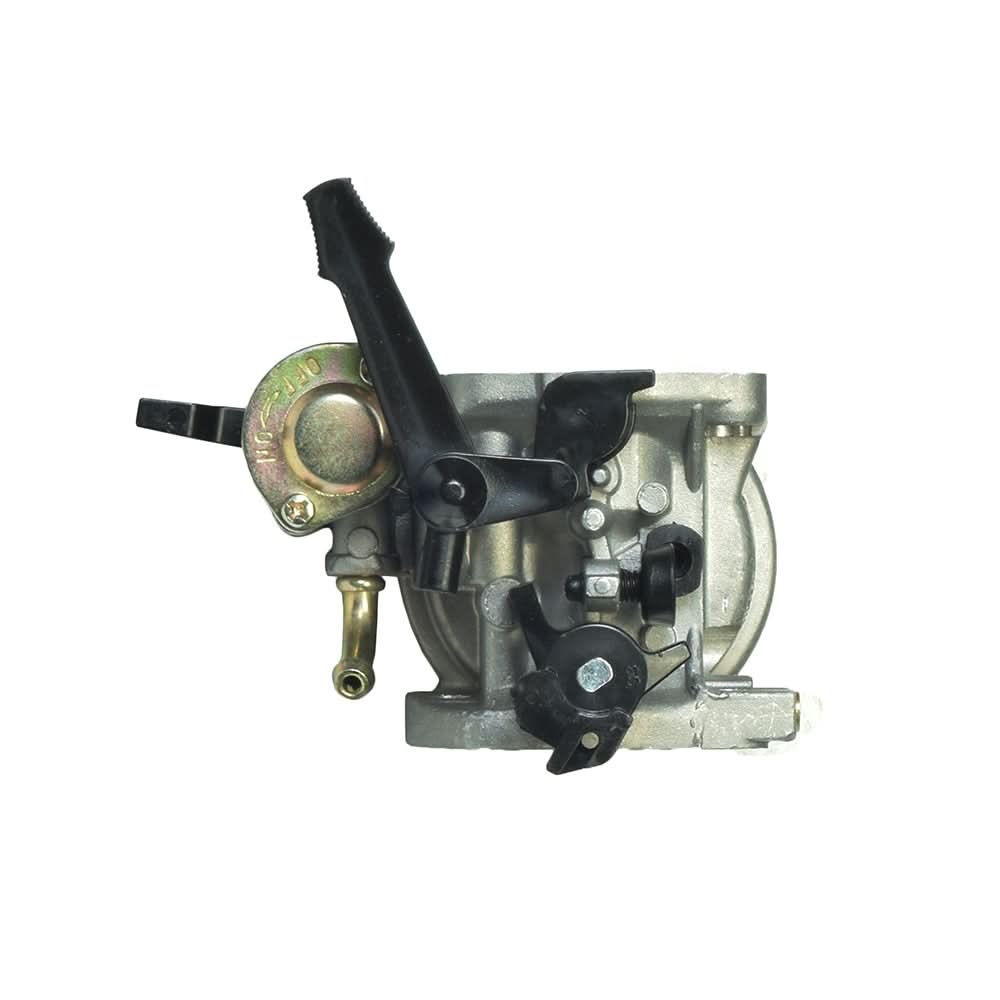

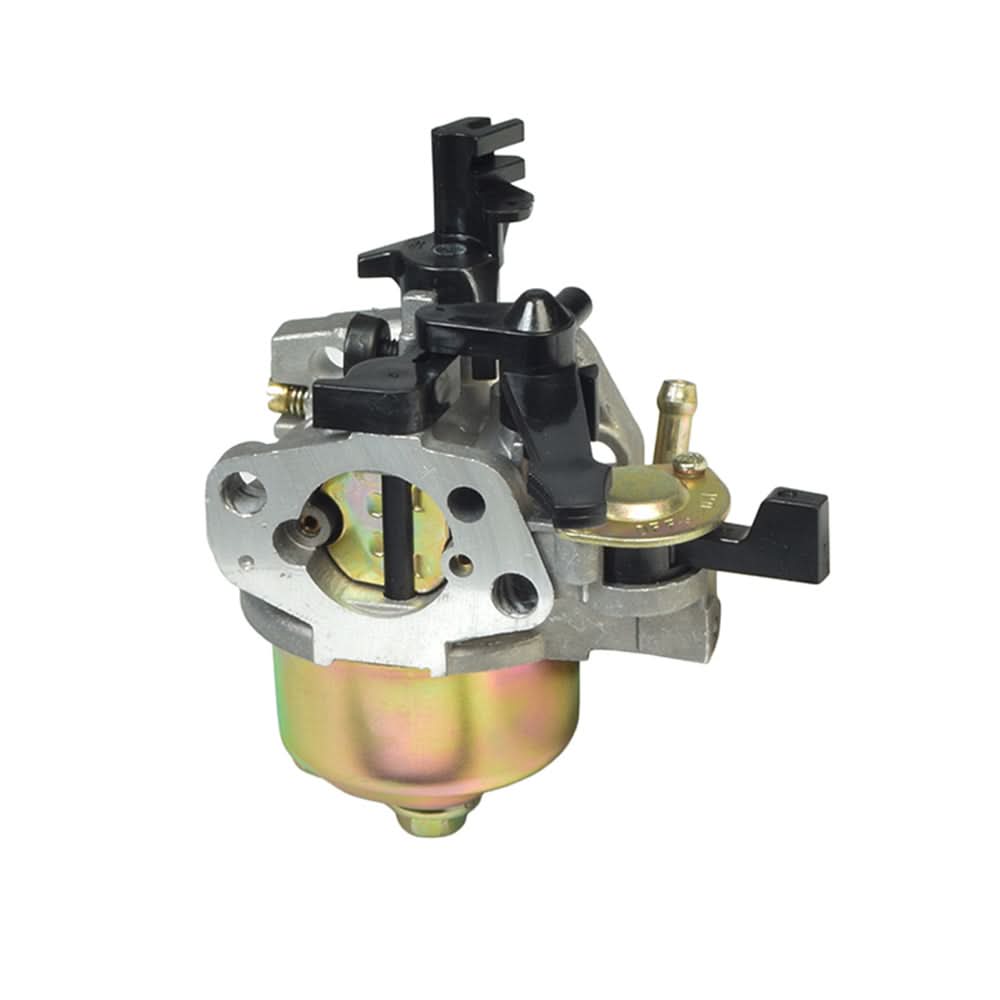

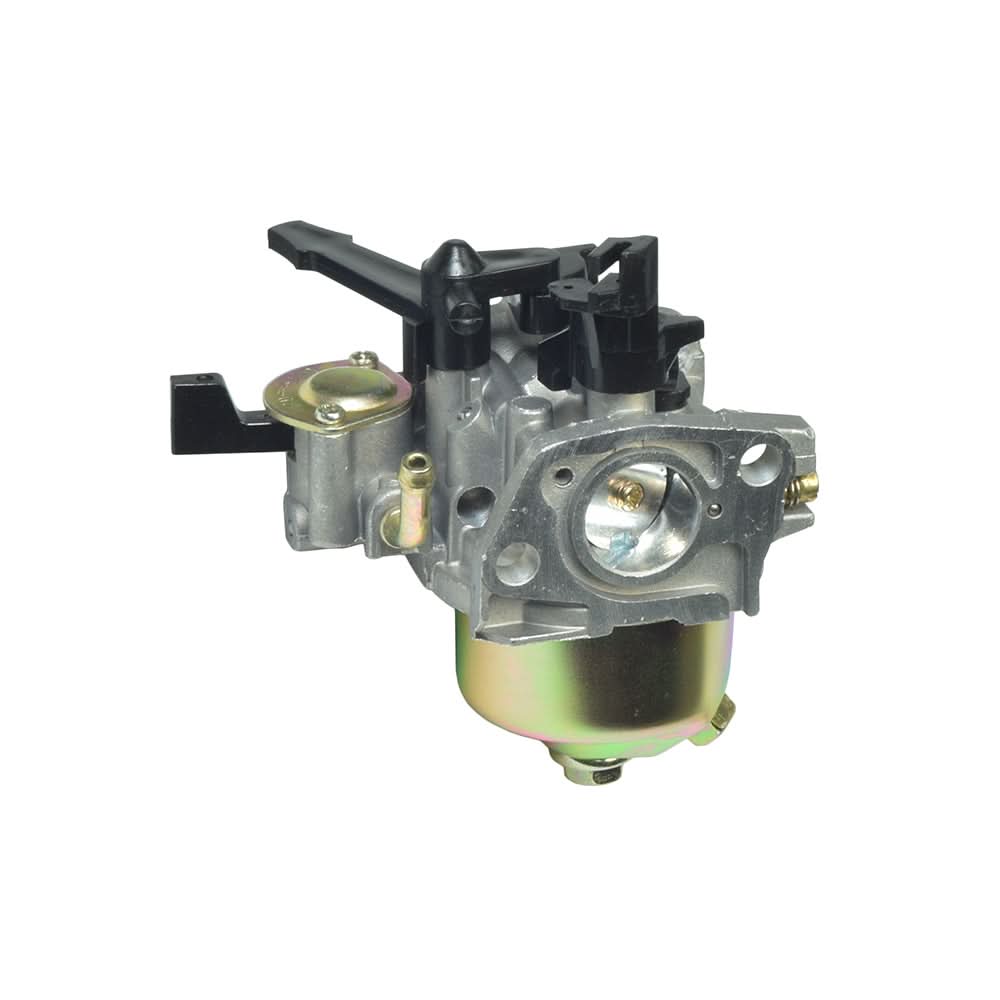

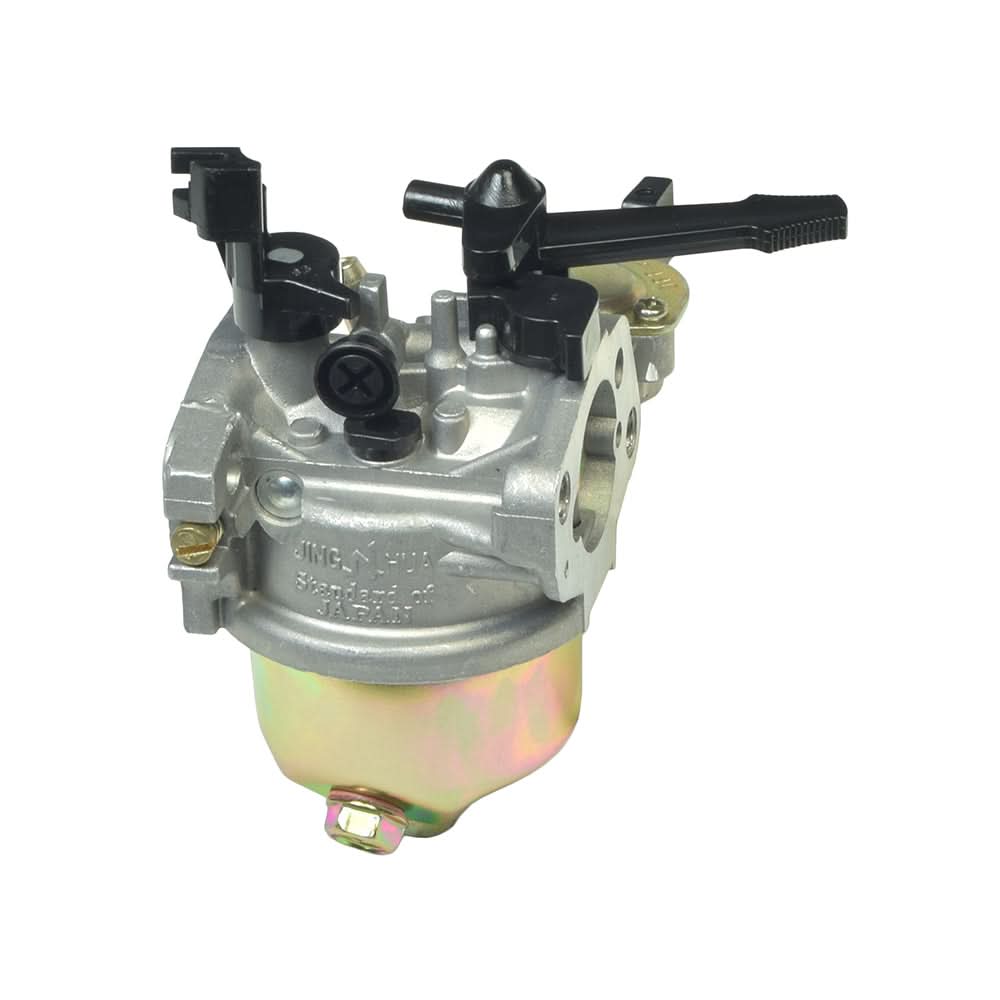

Carburetor with 24 mm Air Intake for the Coleman DT200 196cc Drift Trike Our carburetor with 24 mm air intake for the Coleman DT200 196cc Drift Trike is an aftermarket upgrade for your 6.5 Hp engine. This carb uses a 24 mm diameter air intake and a 19 mm engine-side intake. This carburetor comes equipped with a manual choke, and a fuel shut off valve.

Do you run your engine in cold sub-freezing weather? If ice-clogged carbs are an issue, you may want our 6.5 Hp GX200 Carburetor with 24 mm Air Intake & Water Trap. It's the same carb but with the addition of a water trap to help keep the frozen nasties from your fuel tank from getting past the fuel cut-off switch.

⚠ WARNING California Residents: Proposition 65 Warning

Engine Size(s): 97cc; 163cc; 196cc

Engine Intake Inner Diameter: 19 mm

Air Intake Inner Diameter: 24 mm

Overall Depth: 5.4 cm

Overall Width: 8 cm

Overall Height: 10.5 cm

Center to Center Mounting Hole Distance: 43 mm

Mounting Holes Diameter: 6 mm

Choke: Manual

Fuel Line Length: 16 cm +/-

Fuel Line Inner Diameter: 5 mm

Fuel Line Outer Diameter: 8 mm

Drain: No

Fuel Shutoff: Yes
