Steering Ball Joint for the Coleman AT200-B ATV
Key Features
- May be compatible with other brands & models
- May be used on both left & right sides
- M12x1.25 threaded stud
- 5/8-18 A-arm thread
- Color of hardware may vary but will have no effect on the functionality of this mechanical, non-cosmetic part
Description
Description

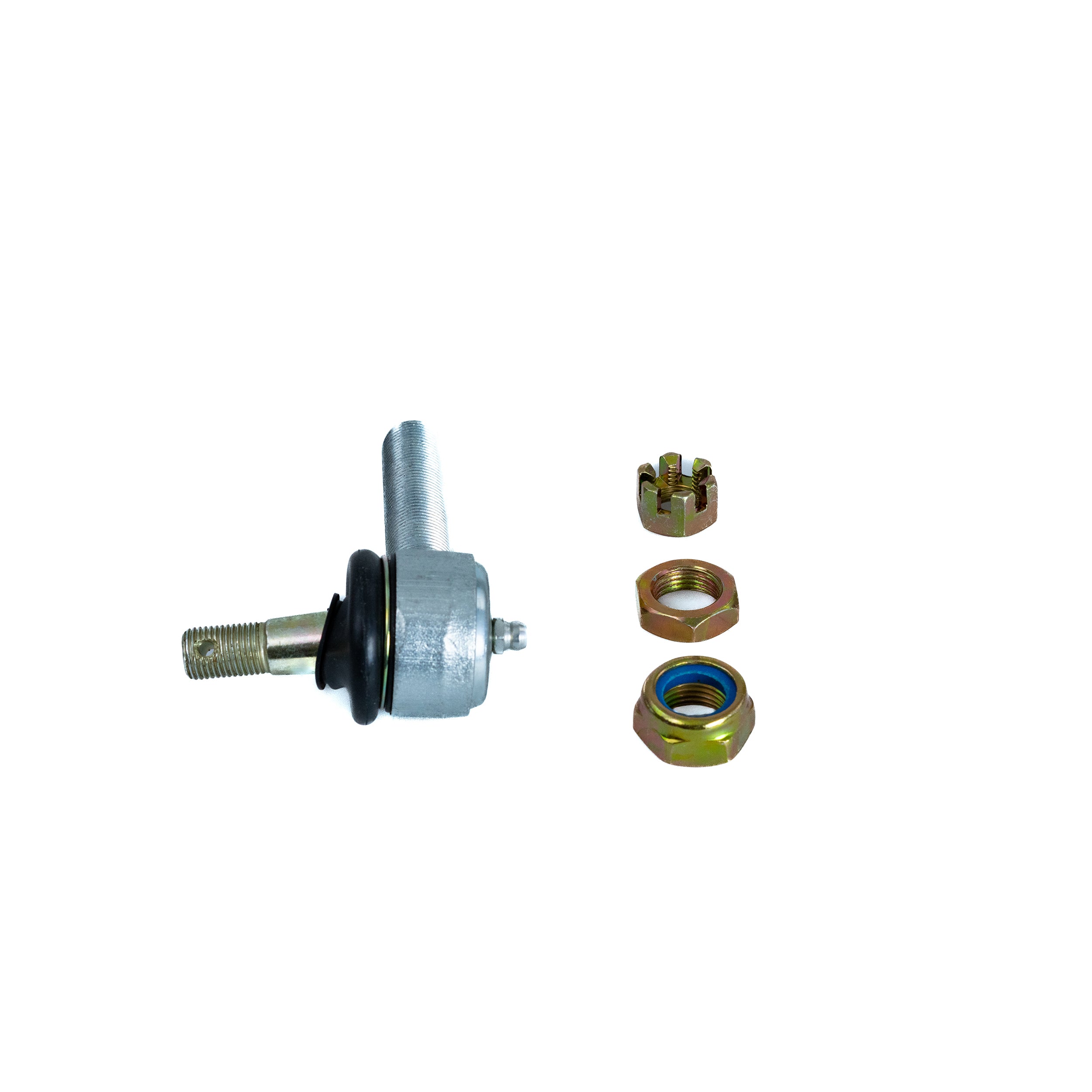

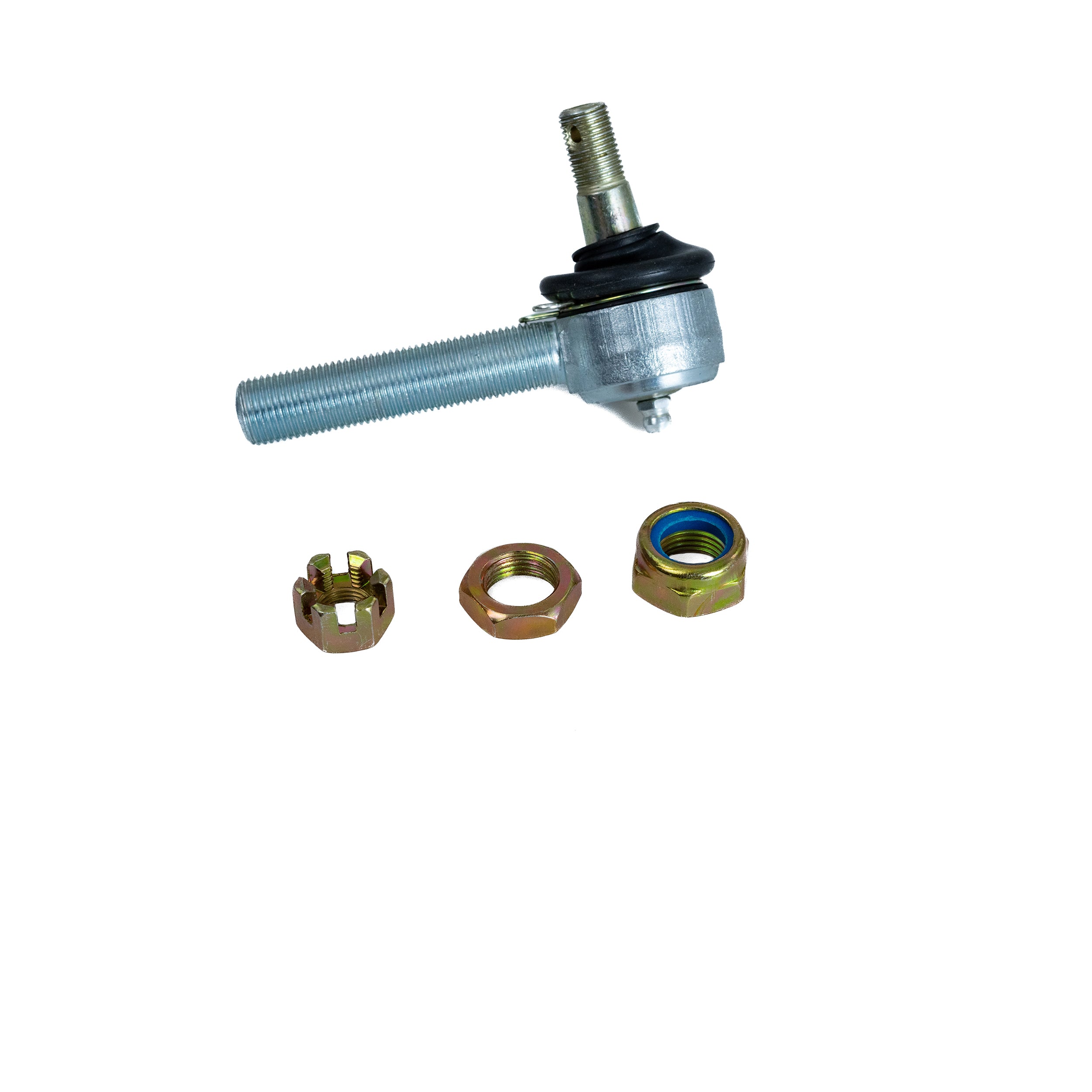

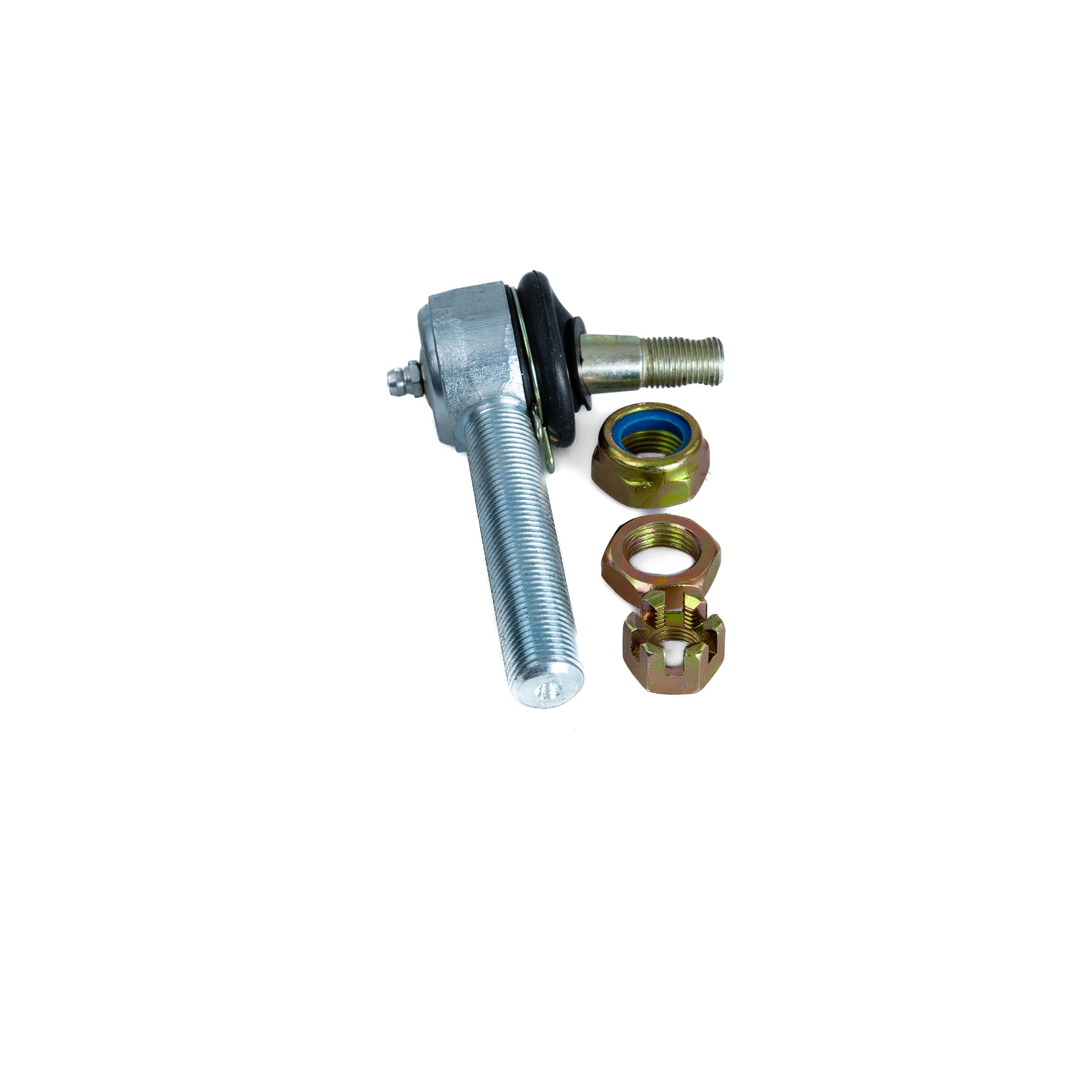

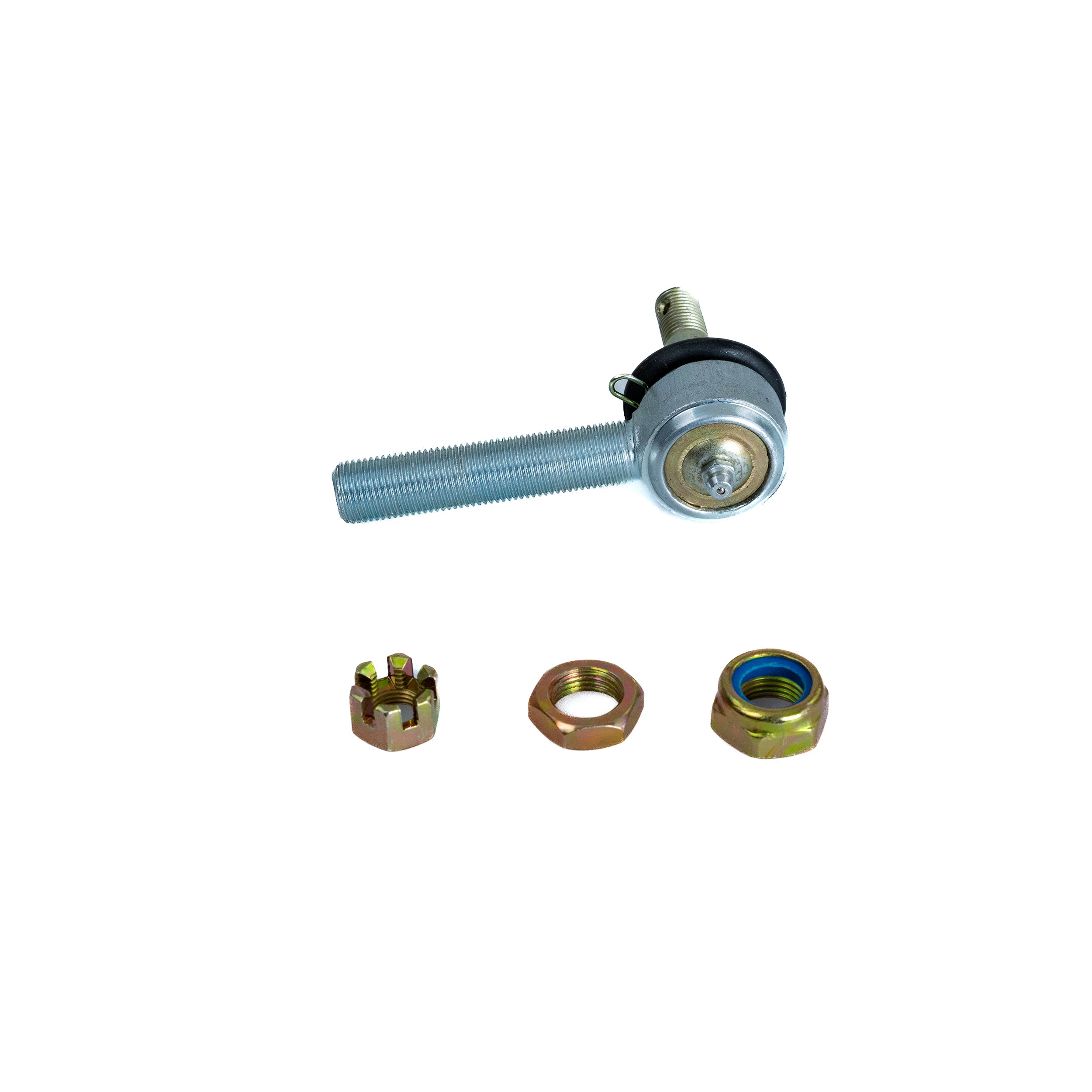

The steering ball joint for the Coleman AT200-B ATV uses the M12x1.25 threaded stud, and the longer 5/8-18 threaded a-arm stud. The ball joint includes the rubber boot, a grease zerk, an M12x1.25 castle nut, a 5/8-18 nut, and a lock nut for the stud. The use of metric and ASI thread on the same ball joint is not unusual.
Ball joints are vital to your steering system and should always be replaced when worn.
Note: These may come in different colors. However, they will function the same. This is a mechanical, non-cosmetic part.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (1)
Reviews (1)
Specifications
Specifications
Overall length: 4-1/2"
Overall height: 2-5/8"
Ball joint stud thread: M12x1.25
Fixed a-arm stud thread: 5/8-18
Fixed a-arm stud length: 2-7/8"
