Lower A-Arm for Coleman AT125-EX & AT125-UT ATVs
Lower A-Arm for Coleman AT125-EX & AT125-UT ATVs - Left is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features

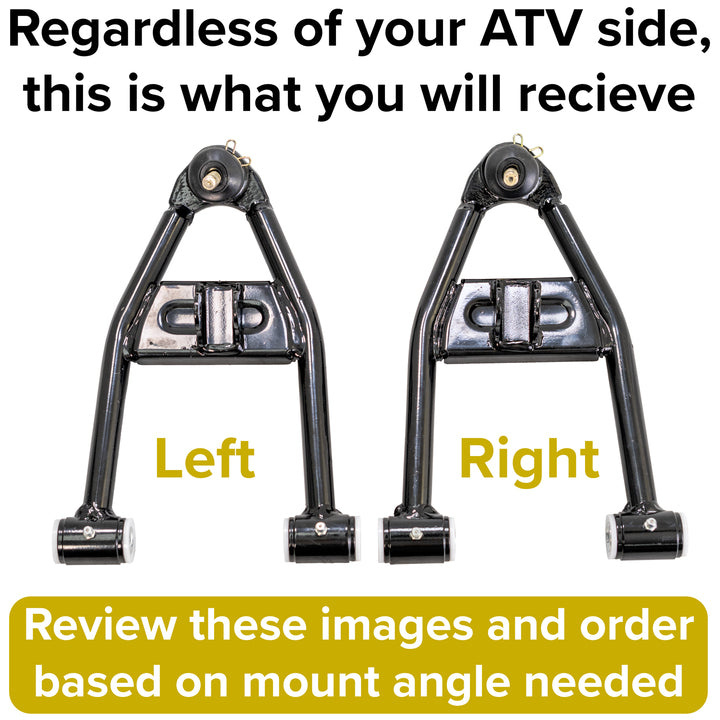

- IMPORTANT NOTE: Prior to ordering, regardless of left or right side of your ATV, review images and order a side that matches the mount angle needed to fit your application

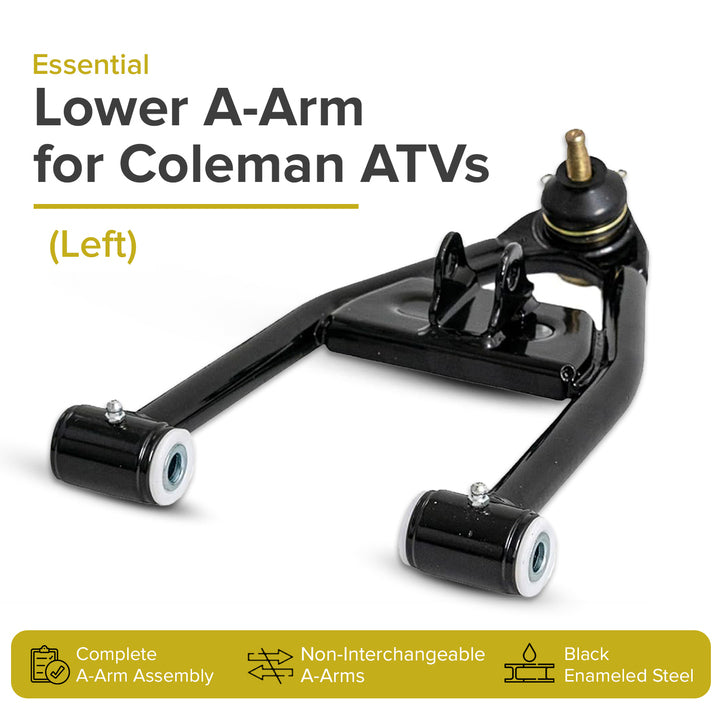

- Left side or right side options
- Sides are not interchangeable
- Black enameled steel

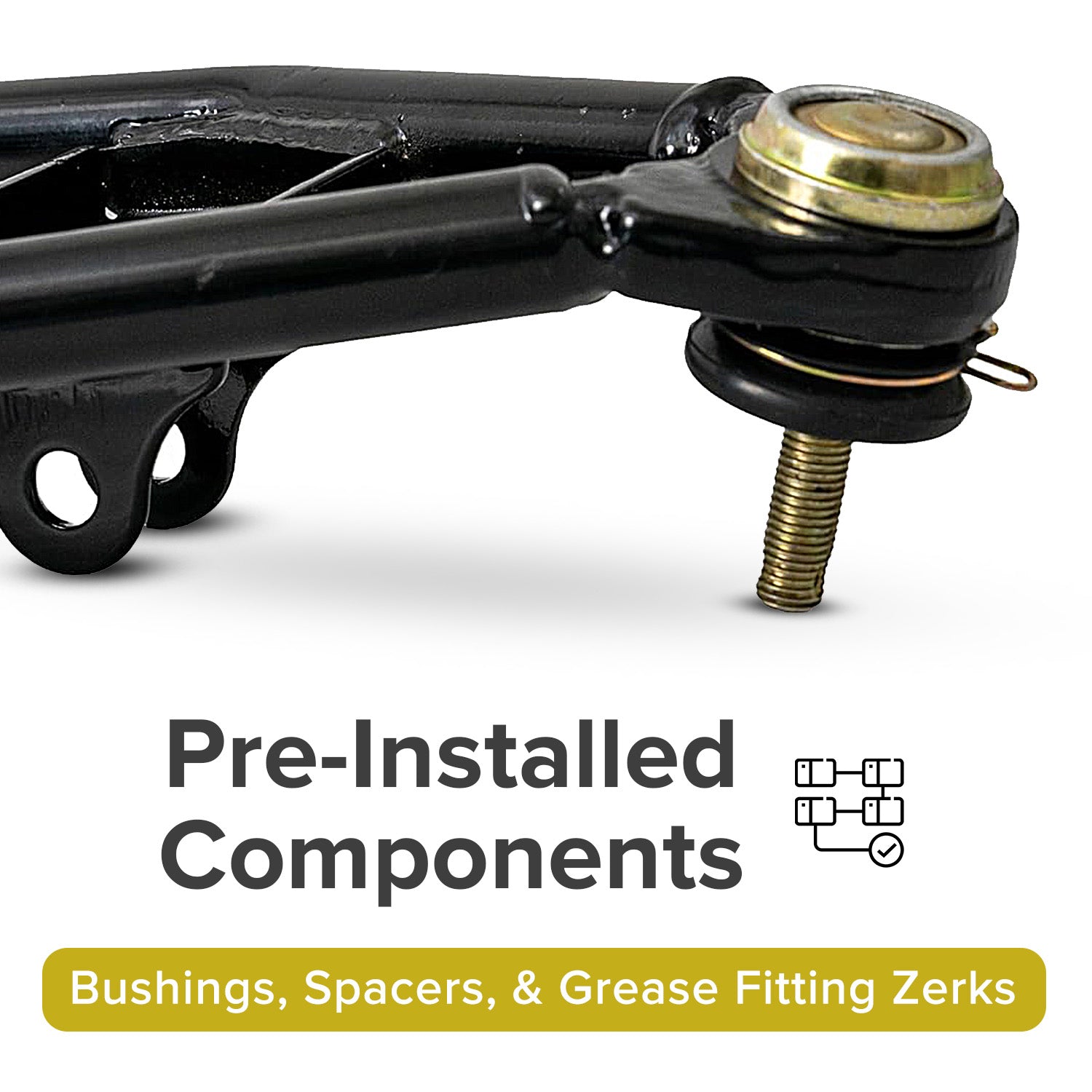

- Pre-installed bushings, spacers, & grease fitting zerks
Description
Description

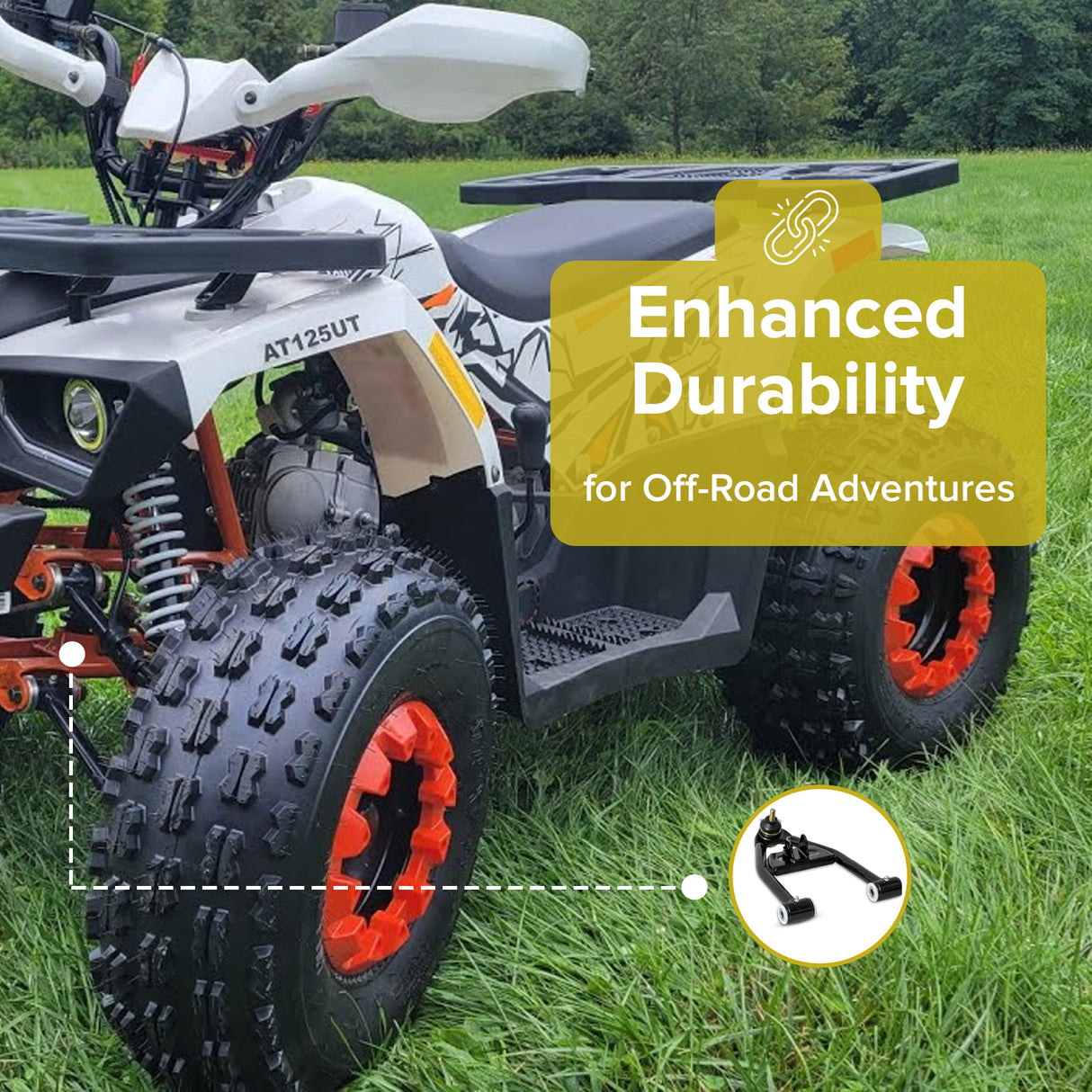

This lower A-arm fits the Coleman AT125-EX and AT125-UT ATVs and is a key part of the steering and suspension. These ATVs use two lower A-arms that are not interchangeable, so select the left or right side when ordering.
Important: Before ordering, review the images and choose the side whose mount angle matches what your ATV needs.

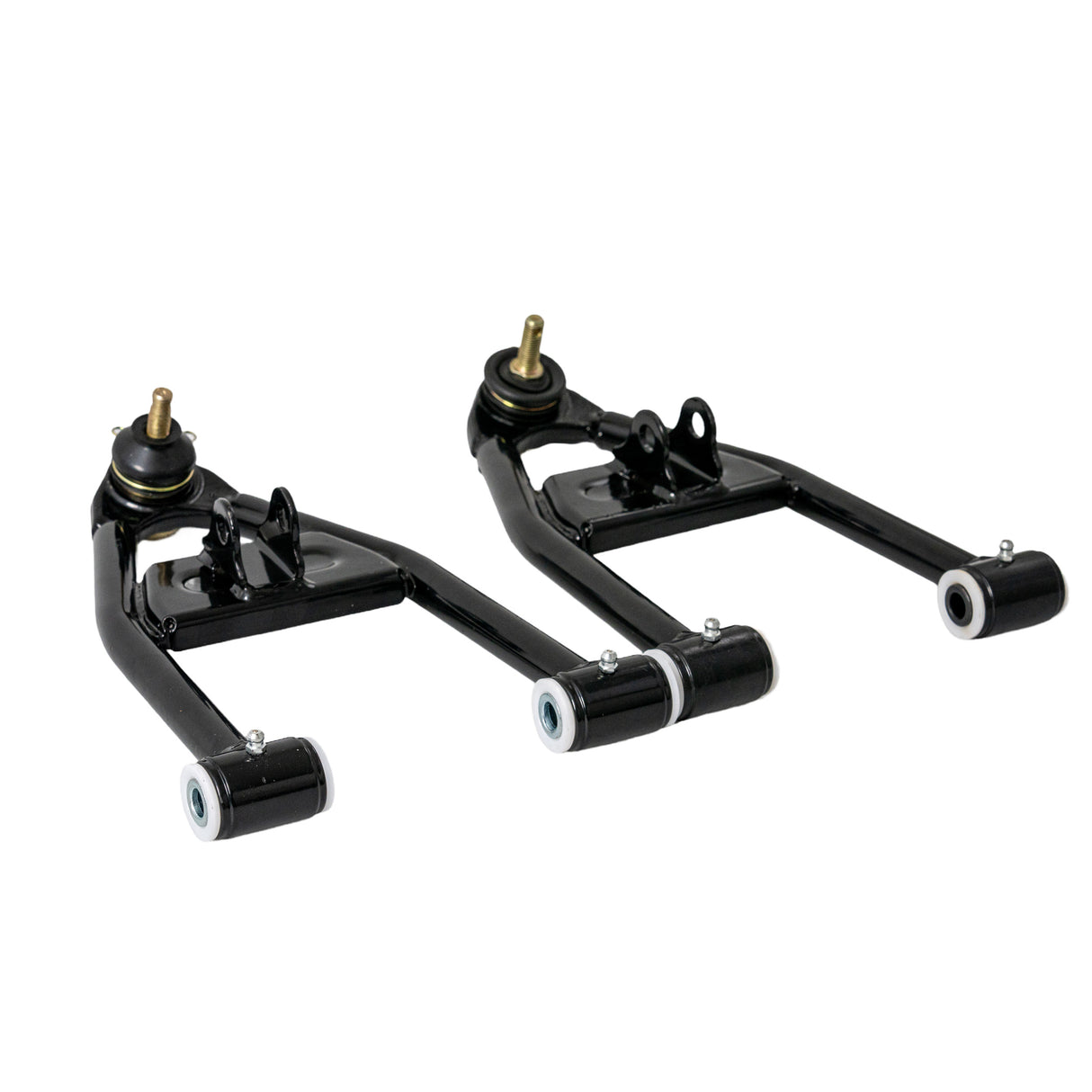

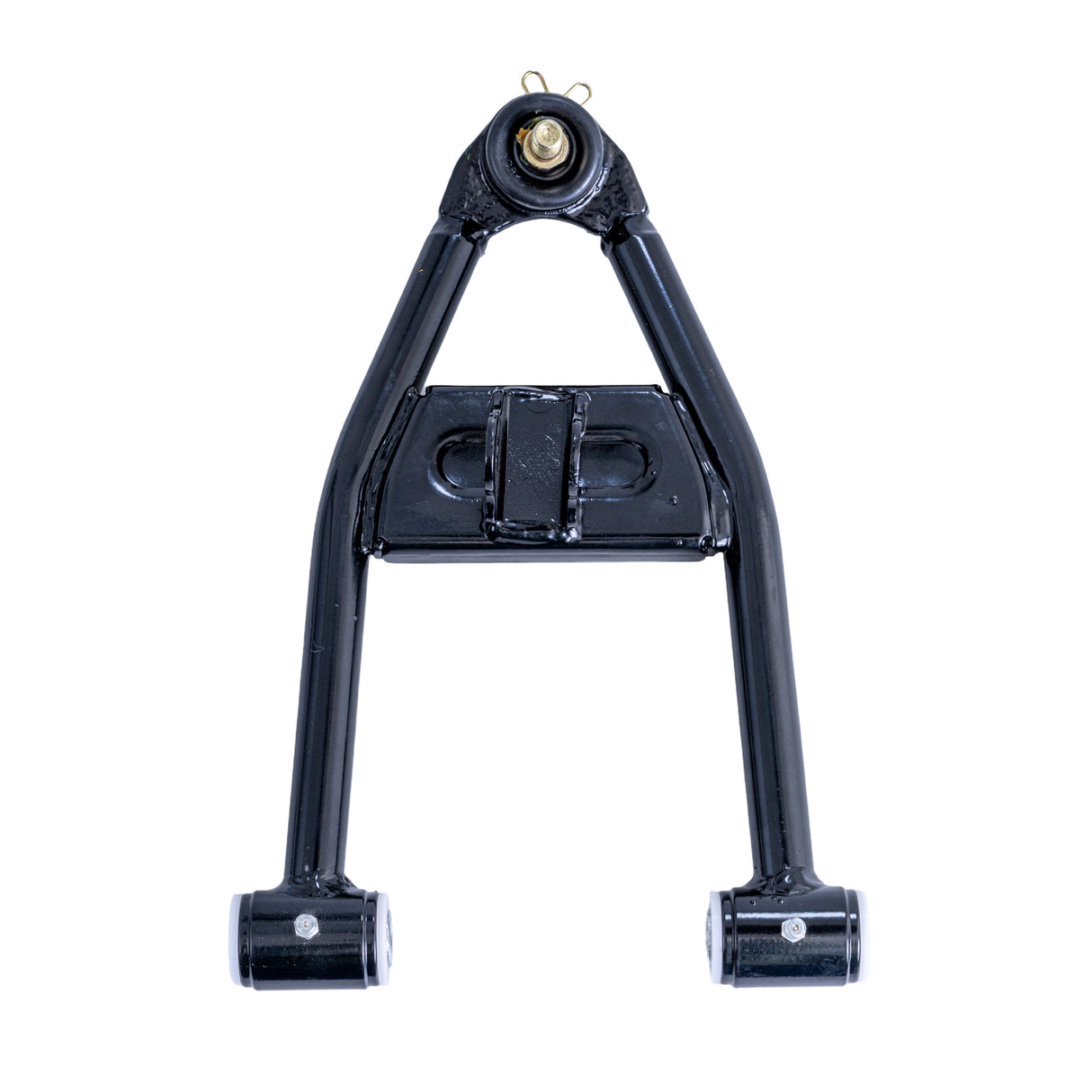

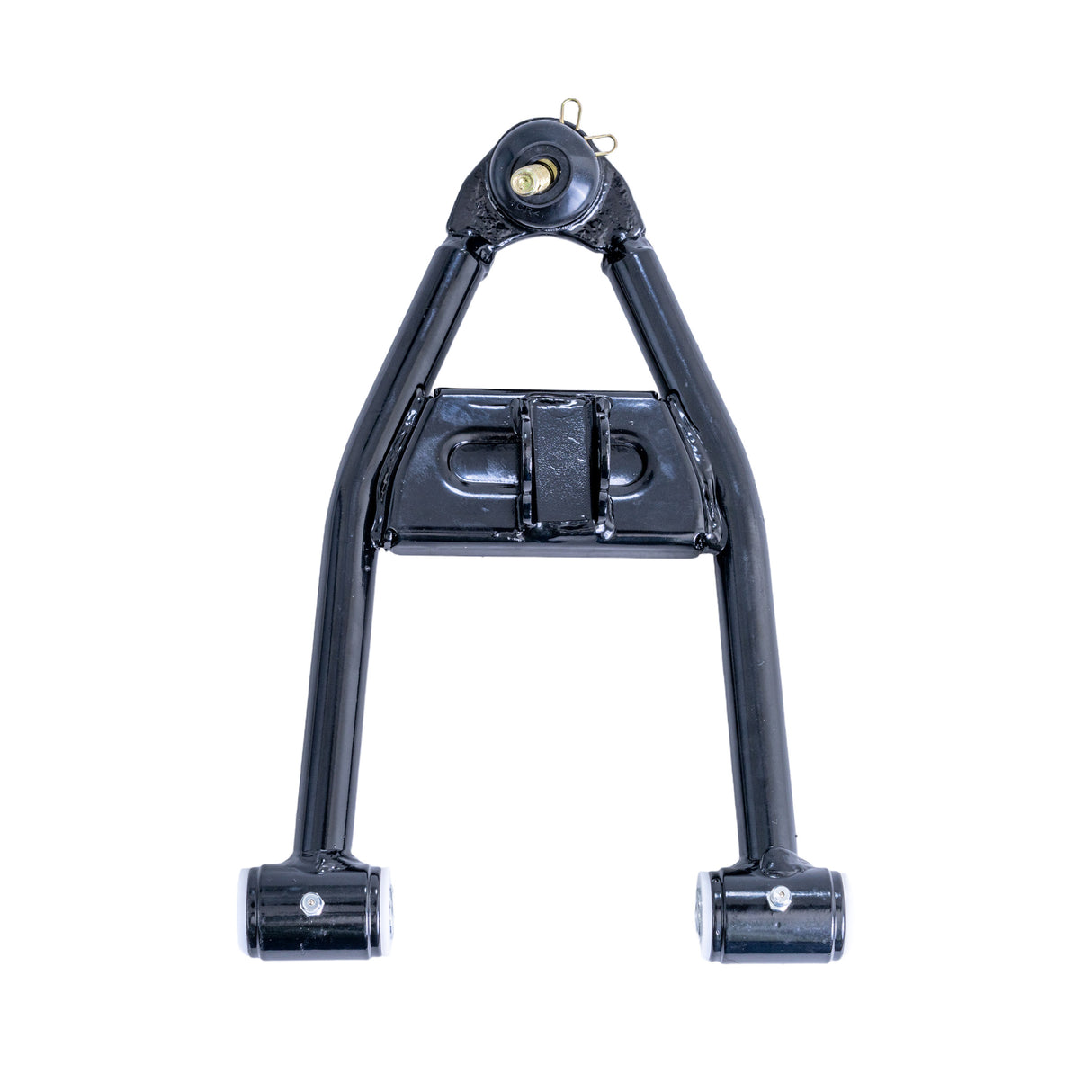

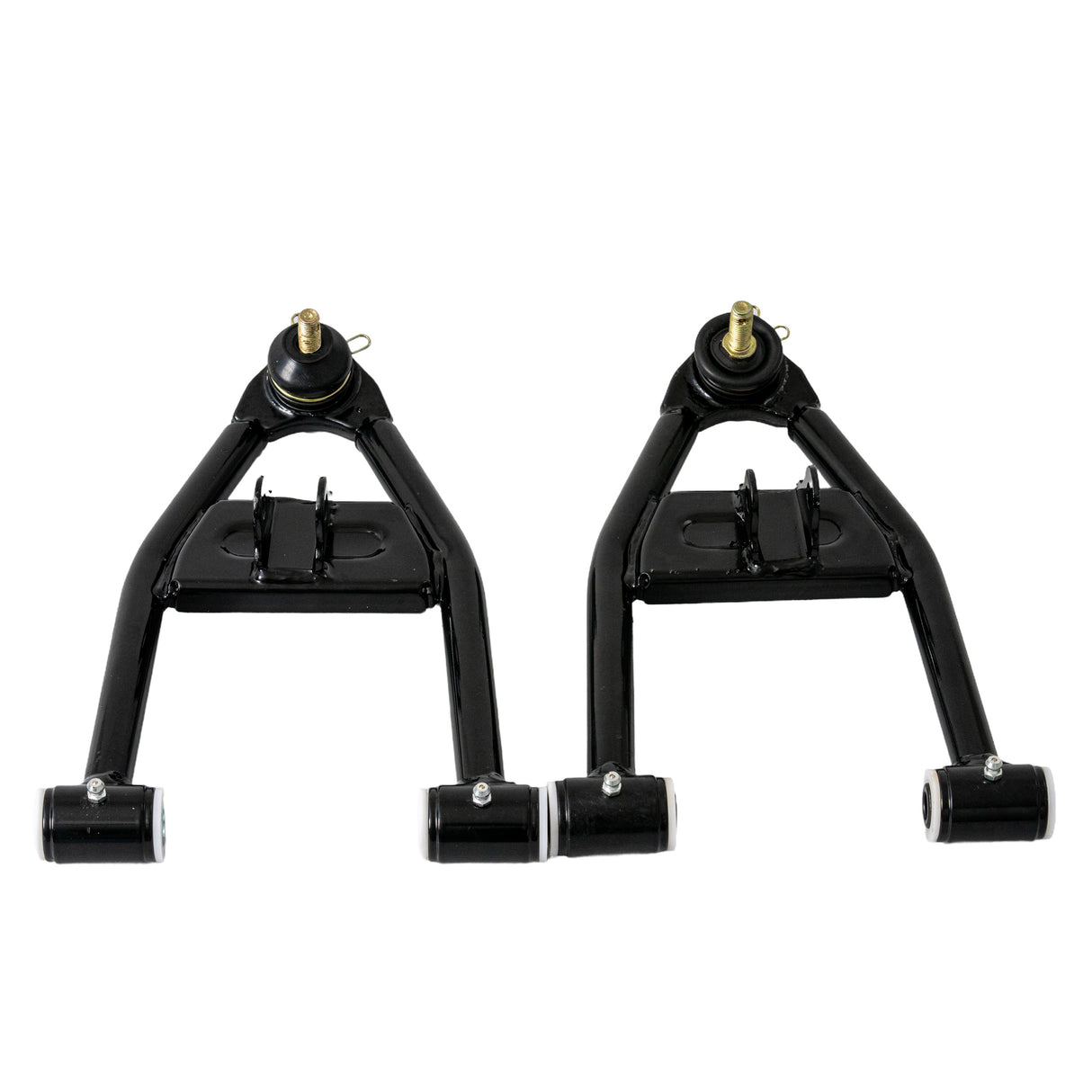

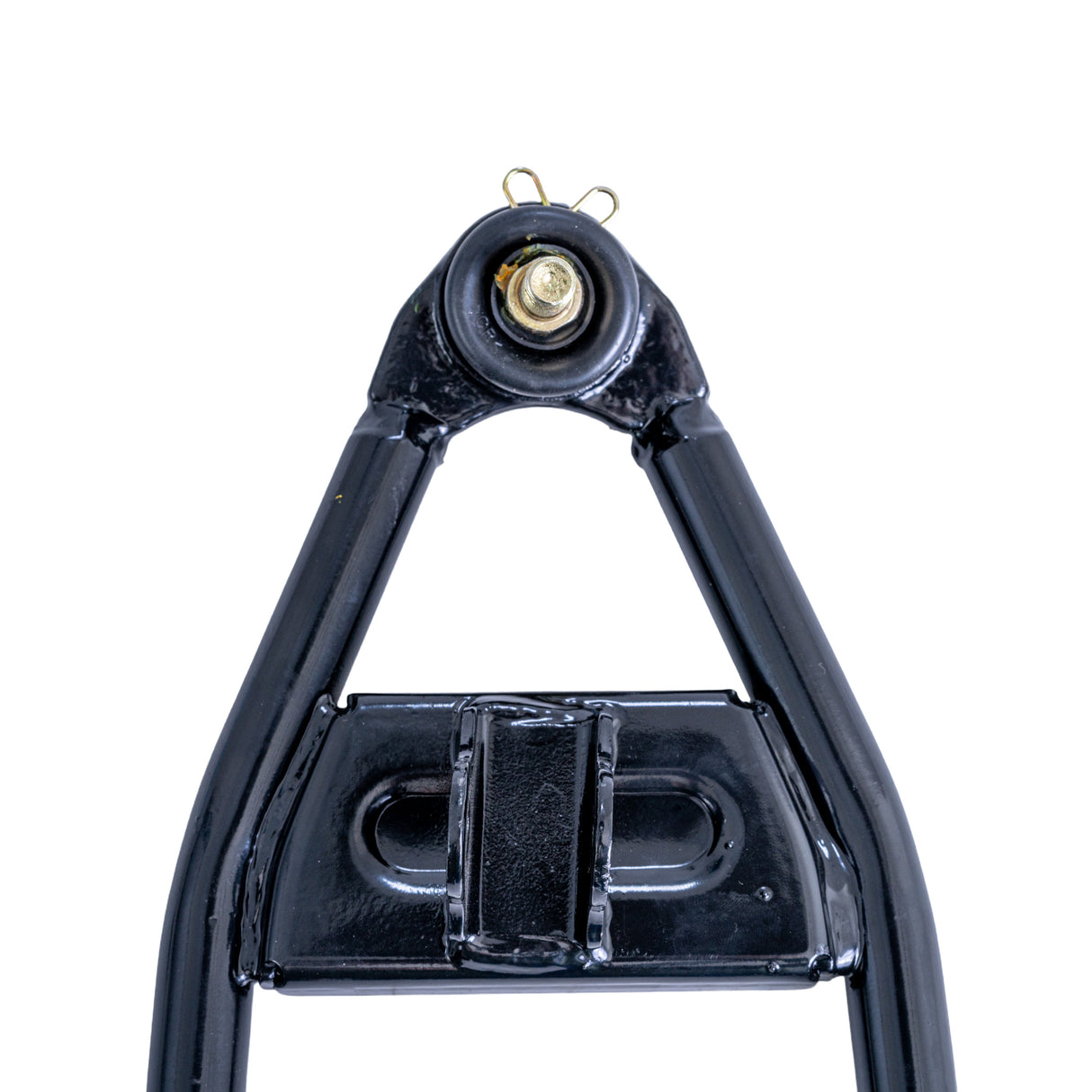

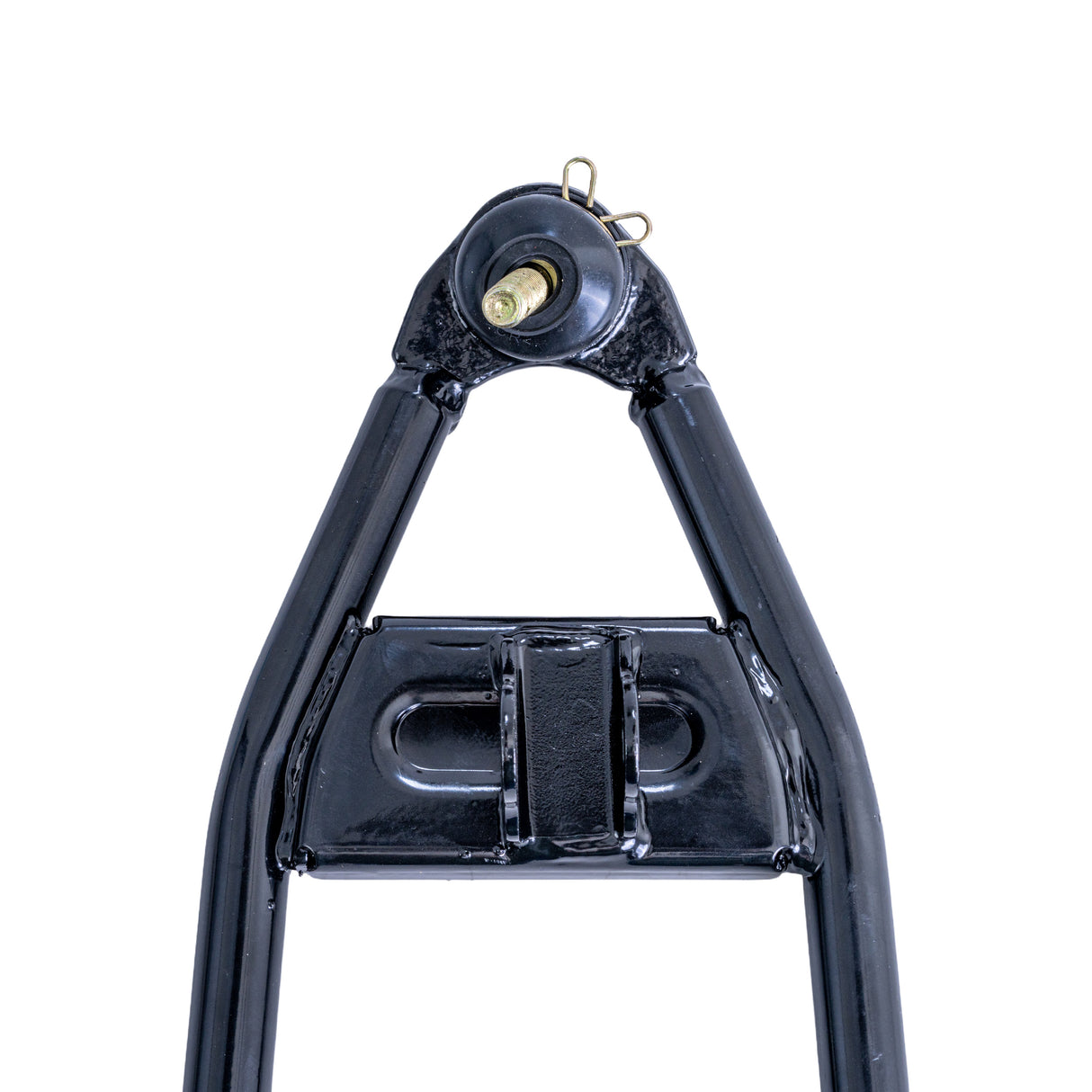

The A-arm is black enameled steel and comes with the bushings, spacers and grease fittings (zerks) already installed.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (3)
Reviews (3)
Specifications
Specifications
Distance between arms: 3-13/16" (96.81 mm )
Overall length: 11-15/16" (295 mm)
Bushing inner diameter: 7/16" (10.45 mm)
Ball joint thread: 10M
Distance between bracket tabs: 1-7/8" (21.5mm)
