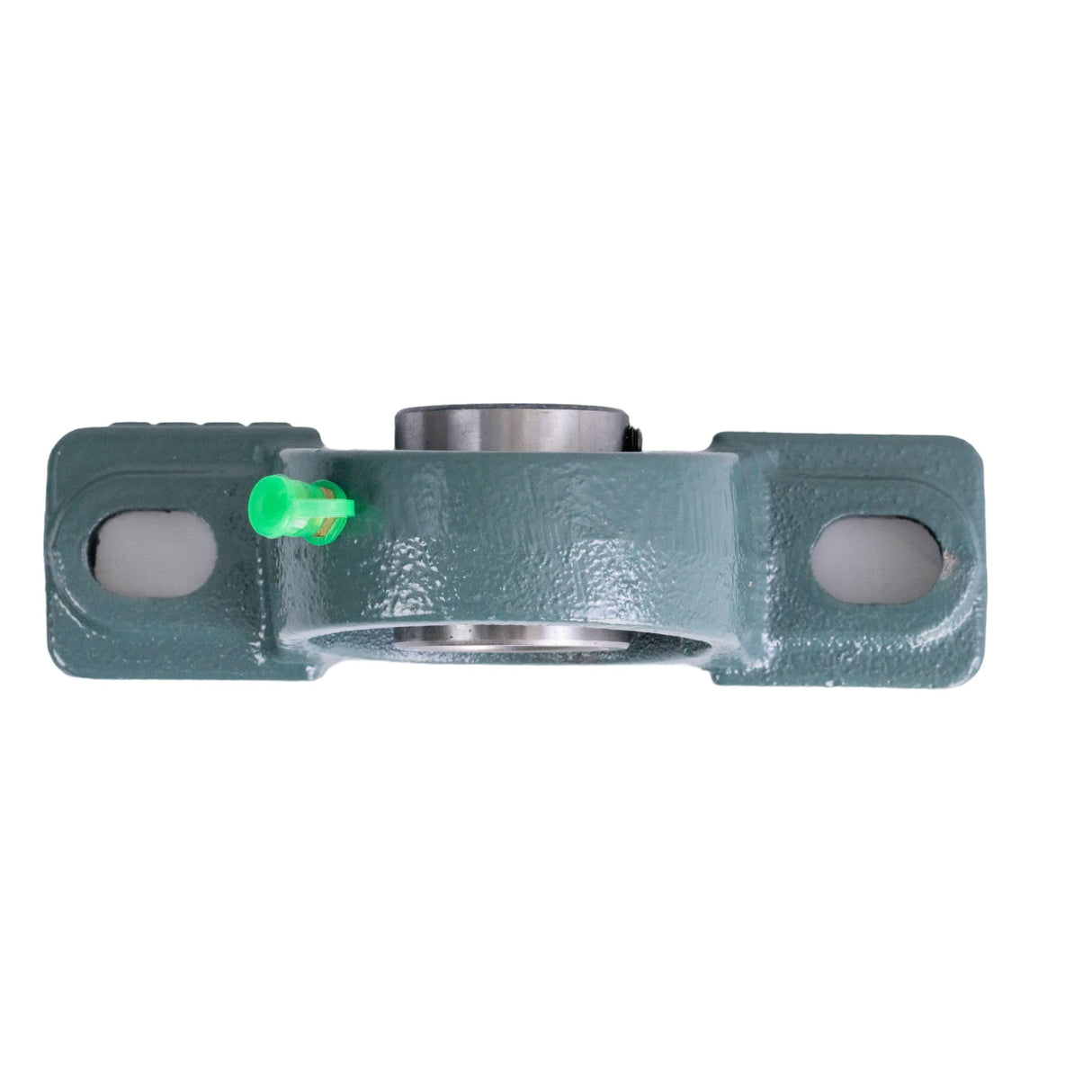

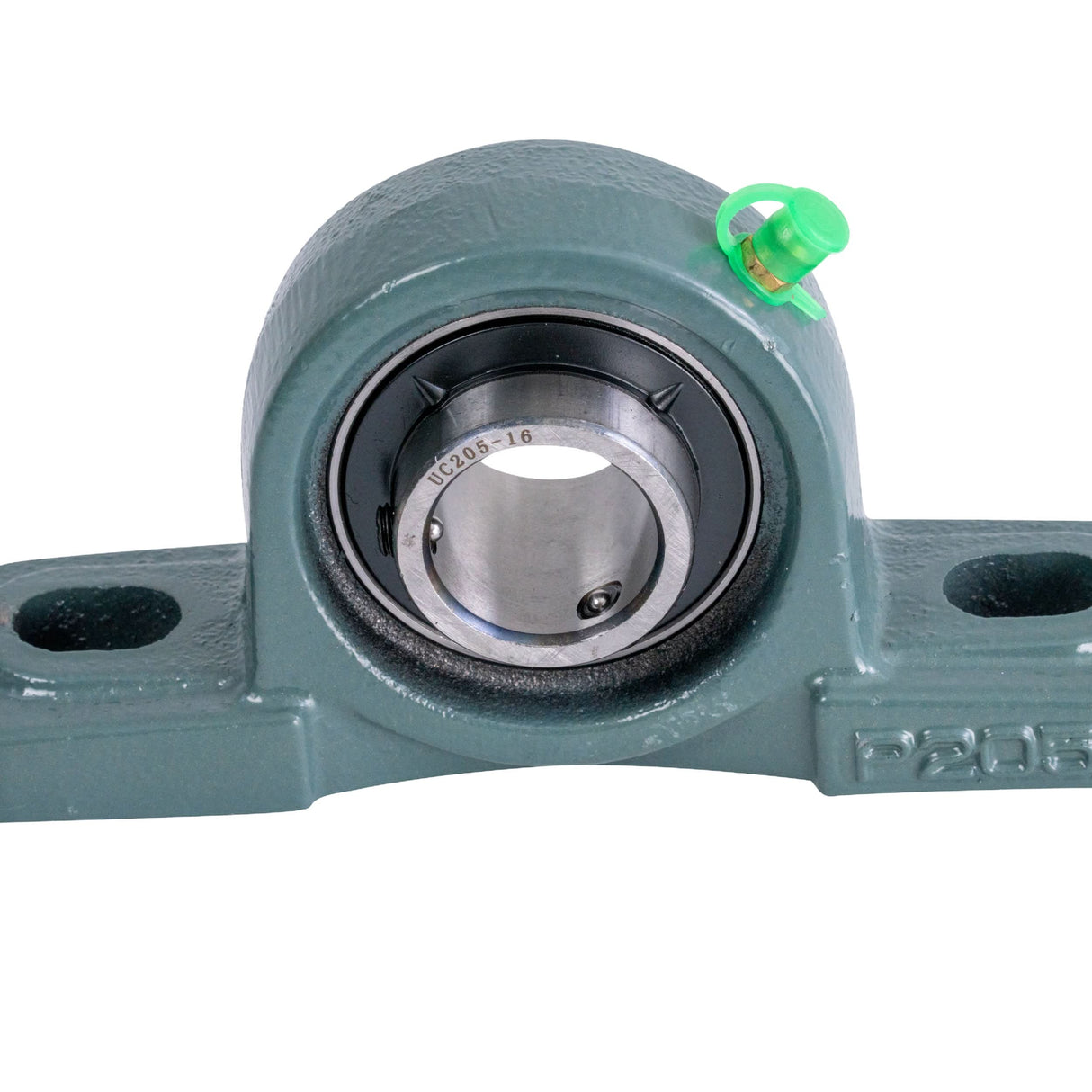

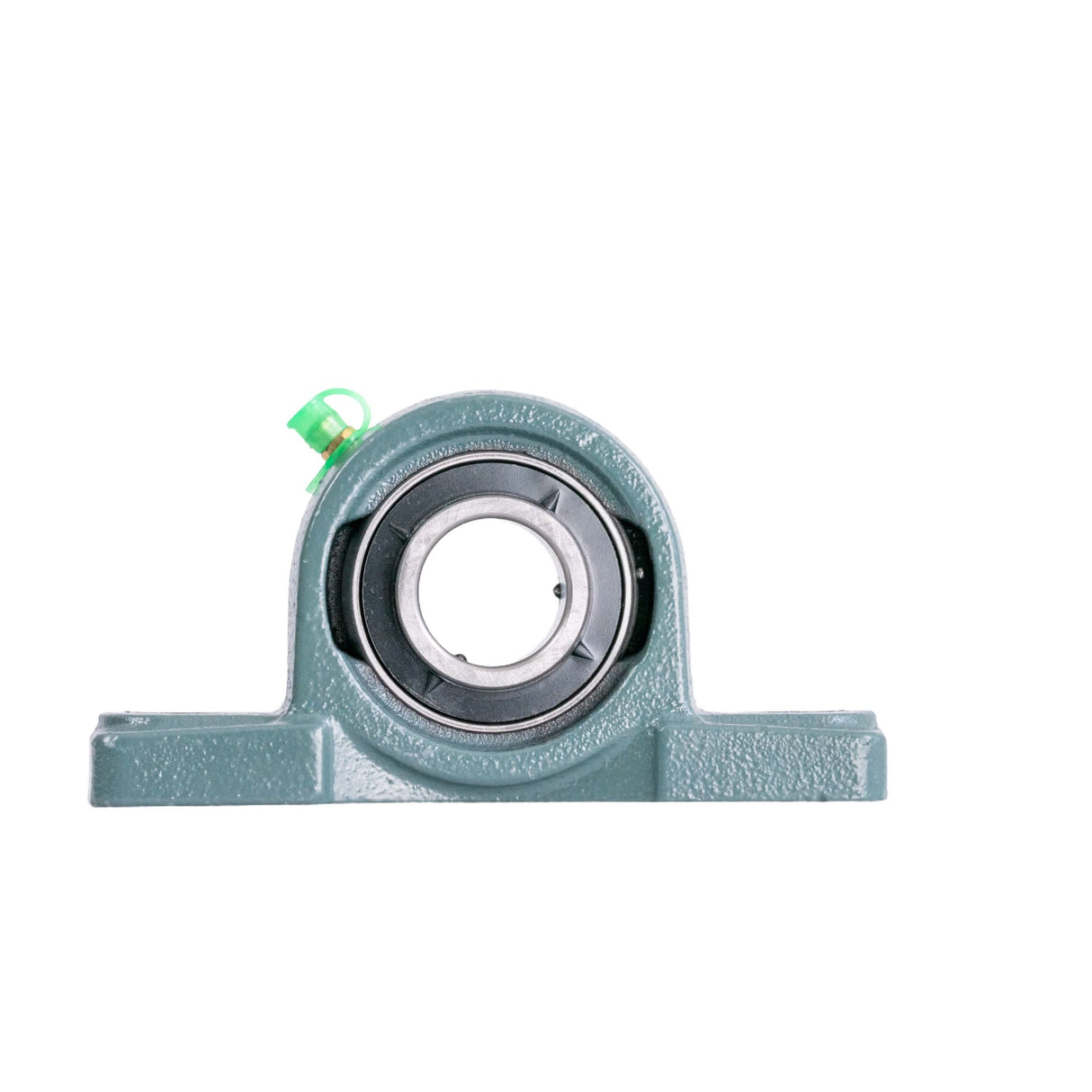

UCP205-16 Pillow Block with 1" Bearing

This UCP205-16 pillow block with 1" bearing has many uses from conveyer belts to ATVs and Go-Karts. This ready-to-mount unit features a heavy-duty cast iron housing finished in a dull green color and a preinstalled 1" inner diameter bearing. The bearing comes with a pair of set screws to help secure it to the shaft. The brass nipple on the top of the housing allows you to add lubricant to the bearing and comes with a green rubber protective cap.

Width: 5-7/16"
Height: 3"
Depth: 1-1/2"
Mounting hole width: 3/4"
Mounting hole length: 9/16"
Mounting hole depth: 5/8"
Mounting hole distance (center to center): 4-3/16"
Bearing internal diameter: 1"
Bearing depth: 1-5/16"
