Monster Scooter Parts  |  SKU: A29-3697  | ActiveCare/Drive Medical: LRM302102-02

Throttle Potentiometer for the ActiveCare Spitfire 1310, Spitfire 1410, and Spitfire EX 1420 Scooters

$120.99

Harness and Lever

Pre-Black Friday Sale - Save 15% with coupon code: PBF15

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • Save money
  • 1st generation Spitfires
  • Available with or without harness & lever
  • Easy installation

Description

Throttle potentiometer for the ActiveCare Spitfire 1310, Spitfire 1410, and Spitfire EX 1420 scooters. Please check the Compatibility list of known compatible models.

Monster Scooter Parts lets you choose the potentiometer as an assembly with the wire harness, lever, and bracket, or you can just buy the pot alone. If you can attach your own wiring, you can save some money.

Note: If you choose the "without harness" option, we strongly recommend soldering the wiring for a proper connection. A patient mechanic with perfect eyesight might be able to thread the wires through the connector loops and crimp them securely, however we discourage this in lieu of proper soldering.

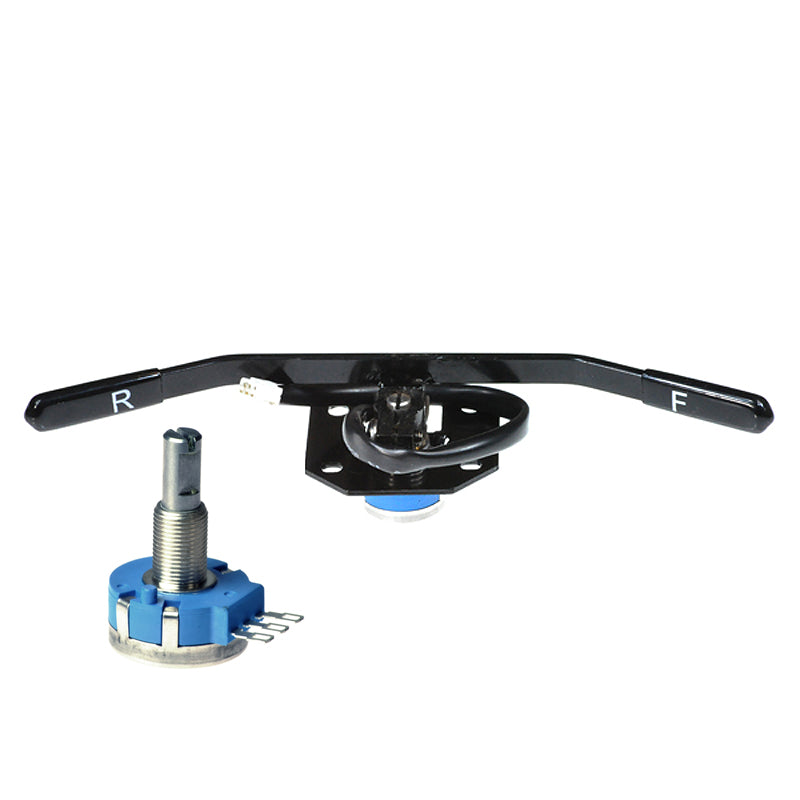

The "with harness" option comes complete with the throttle potentiometer, "wig-wag" lever, bracket, and the pre-attached wiring.

The throttle pot is sometimes called the engager or throttle switch. If your scooter has a faulty throttle potentiometer, it can cause a "jerky" motion while the lever is being pressed, and eventually no forward or backward motion at all. Before your scooter totally stops running due to a bad throttle pot, get a new one from Monster Scooter Parts and keep on scooting.

ActiveCare/Drive Medical: LRM302102-02

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (1)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
F
Fred D

Just what I need got it running thanks.

Specifications

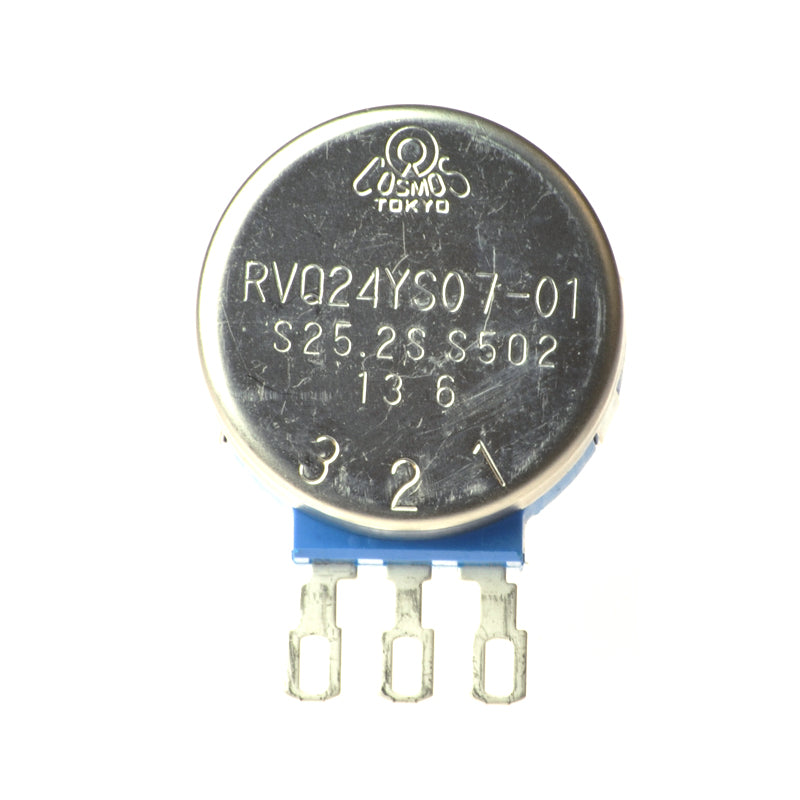

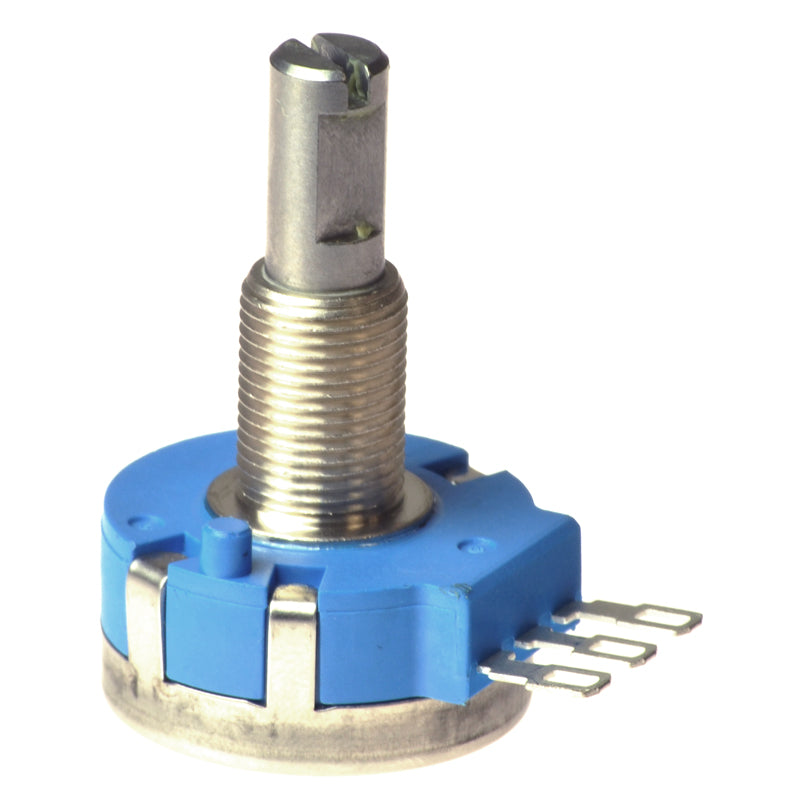

Potentiometer Specs
Manufacturer: TOCOS
Data coding: RVQ24YS07-01 S25.2S S502
Resistance: 5KΩ (5000) Ohm
Base diameter: 22.95 mm
Shaft unthreaded diameter: 6.40 mm
Overall shaft length (including thread): 25 mm
Thread: M10-1.25

Compatibility
