Currie Technologies  |  SKU: C80-8757  | Currie Technologies: MT-24900-001S

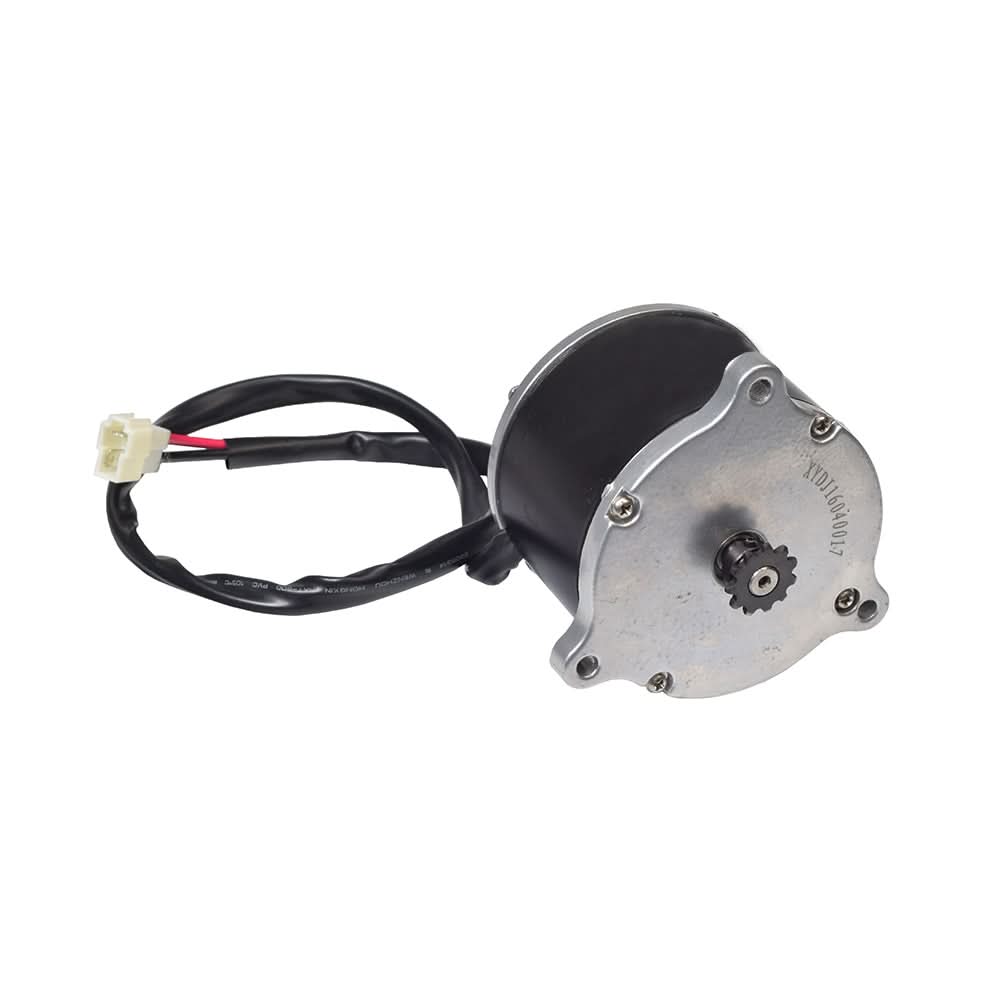

24 Volt 900 Watt XYD-13 Electric Motor with 11 Tooth #25 Chain Sprocket

$159.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •
    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • 24 volt 900 watt
    • 11 tooth #25 chain sprocket
    • Left or right rotation by reversing wires
    • XYD-13 motor
    • 2600 RPM

    Description
    Currie Technologies provides high performance with this 24 volt 900 watt XYD-13 electric motor. You can dramatically increase low end torque and top end speed with this high power electric motor.

    As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability. It will work with all the Currie OEM and Currie compatible parts.

    This model comes outfitted with a universal mounting bracket suitable for most 24 volt electric scooters. This motor can also be used on custom bicycles, go karts and projects with the 24 volt 40 amp speed controller and hand throttle.

    This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

    Currie Technologies: MT-24900-001S

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (1)

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    David C

    i'm so excited and happy my new motor came today, and it's in excellent condition and beyond my expectations in initial performance! big shout out to robnewyork at forum.modifiedelectricscooters.com for pointing me to this company, that actually had what i needed! it's a permanent bookmark in my browser. *****

    Specifications

    Model: XYD-13 Motor
    Type: Brush
    Voltage: 24 volt DC
    Rated Speed: 2600 RPM
    Rated Current: 34 amp
    Output: 900 watts
    Rotation: Reversible
    Sprocket: 11 tooth #25 chain sprocket
    Case Length: 3-3/4" (95 mm)
    Case Diameter: 3-15/16" (100 mm)
    Drive Shaft Length: 1/2" (13 mm)
    Drive Shaft Diameter: 3/8" (10 mm)
    Mounting Hole Distance: 3-15/16" (100 mm)

    Compatibility
